1971 Three-Speed Shift Knob

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1971 Three-Speed Shift Knob
OEM: —
APPLICATION: CJ-5

Loading 3D viewer...

CARGO ID · CJ-3D / 0992QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0992

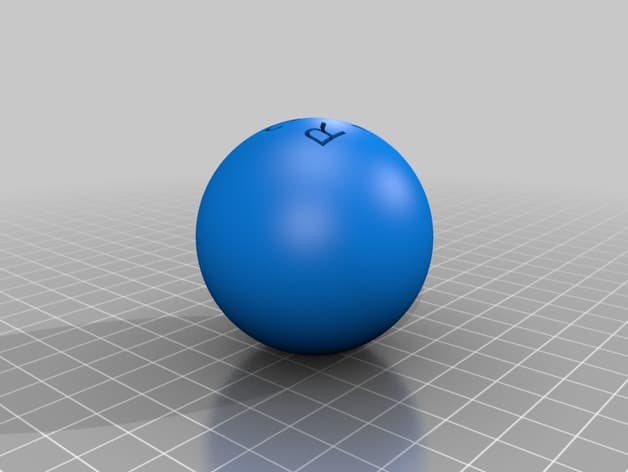

[01]BALL.stlBALL.stl.STL

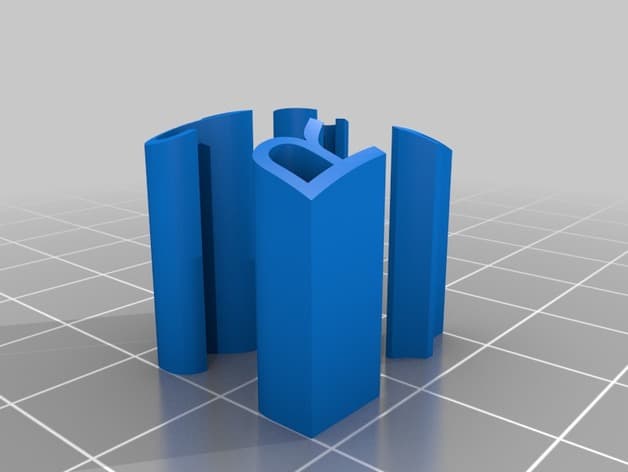

[02]Pattern.stlPattern.stl.STL
[03]Bounding box67.098 × 50.799 × 50.797 mm
[04]Volume67,004.512 mm³

Field notes

BY ANDY MILLER (WASHINGTONAPPLE)

Two-color three-speed transmission shift knob developed for a 1971 Jeep CJ-5. The pattern insert and knob body are separate printable pieces, and the source documents the finished knob installed on its measured shifter.

View original source ↗
