2008 Short Radio Antenna

ABS · NylonMULTI-PART4 FILESCC-BY-NC-SAExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2008 Short Radio Antenna
OEM: —
APPLICATION: Cherokee / Liberty KK / Liberty

Loading 3D viewer...

CARGO ID · CJ-3D / 0900QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

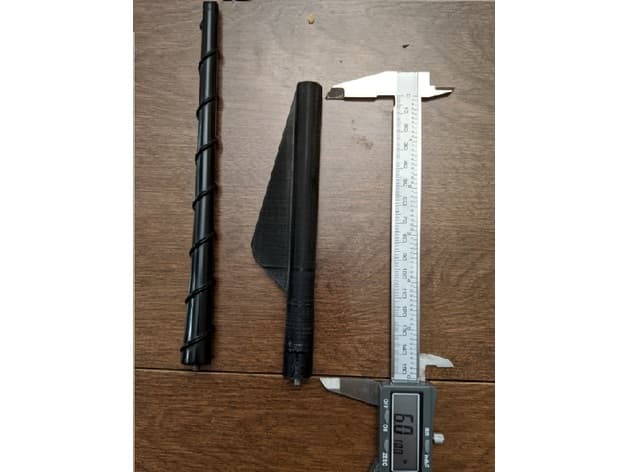

PLATE 01 / 04No caption recorded

Build sheet

MAN-0900

[01]Anntennabase.stlAnntennabase.stl.STL
[02]AnntennabaseWHex.stlAnntennabaseWHex.stl.STL
[03]AntennaInternal.stlAntennaInternal.stl.STL
[04]AntennaRadome.stlAntennaRadome.stl.STL
[05]Bounding box139.000 × 82.869 × 16.500 mm
[06]Volume24,268.182 mm³

Field notes

BY ANDREW JOHNSON (AJOHNS1288)

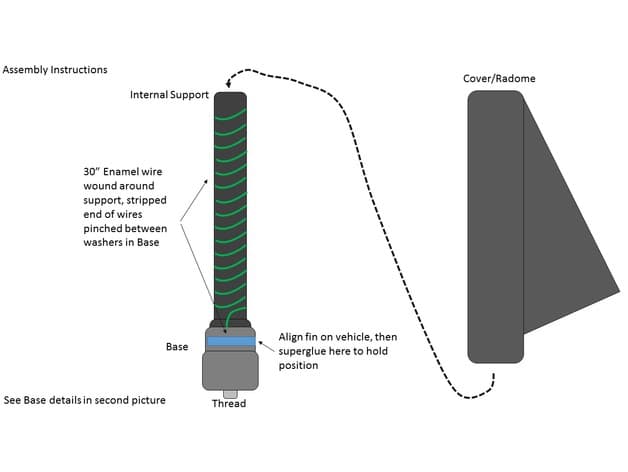

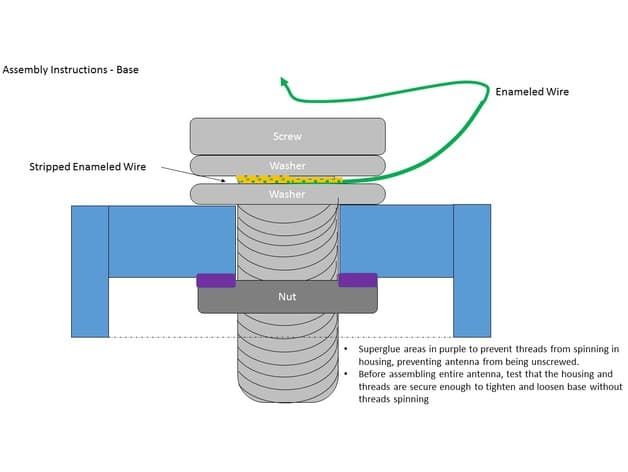

Shorter replacement radio antenna developed for a 2008 Jeep Liberty KK to clear a garage door. Plain and captured-nut bases, the wire support, and weather radome are included; assembly requires an M5 fastener and antenna wire.
