2010 Blend-Door Actuator Gear

ABS · Nylon · PETG1 FILEGPLDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2010 Blend-Door Actuator Gear
OEM: —
APPLICATION: Cherokee / Liberty KK / Liberty

Loading 3D viewer...

CARGO ID · CJ-3D / 0901QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

PLATE 01 / 01No caption recorded

Build sheet

MAN-0901

[01]gear_blend_door_actuator_2010_jeep_liberty_kk_replacement.stlgear_blend_door_actuator_2010_jeep_liberty_kk_replacement.stl.STL
[02]Bounding box25.000 × 25.000 × 13.909 mm
[03]Volume2,280.131 mm³

Field notes

BY THOMAS_D

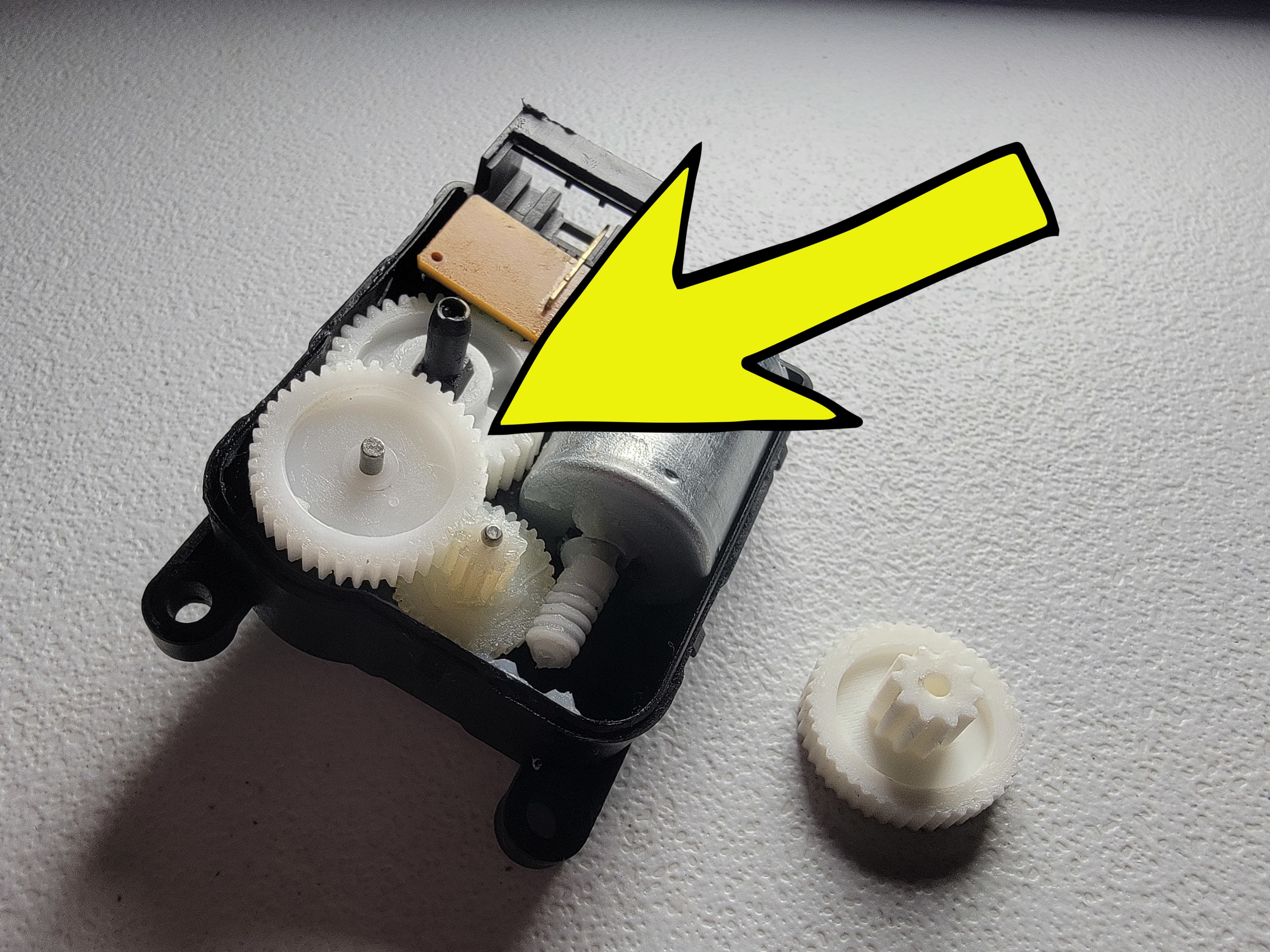

Replacement internal gear for a clicking HVAC blend-door actuator in a 2010 Jeep Liberty KK. The creator installed the printed gear and reports that the actuator operates.
