2017 Trailhawk Cargo-Kit Relocation Bracket

ABS · Nylon1 FILECC-BY-NCInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2017 Trailhawk Cargo-Kit Relocation Bracket
OEM: —
APPLICATION: Cherokee / Liberty KL

Loading 3D viewer...

CARGO ID · CJ-3D / 0904QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0904

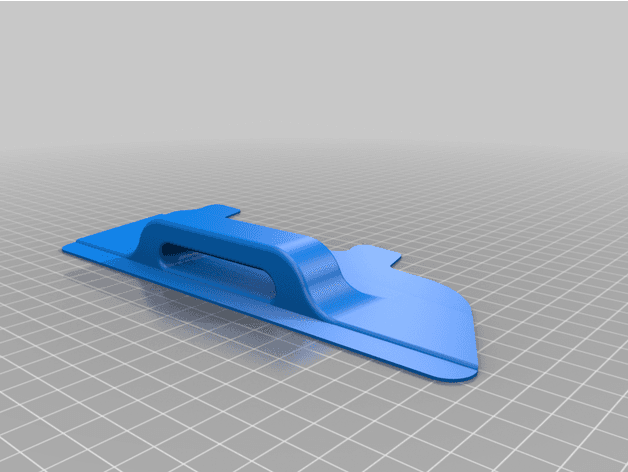

[01]CargoManagementRight.stlCargoManagementRight.stl.STL

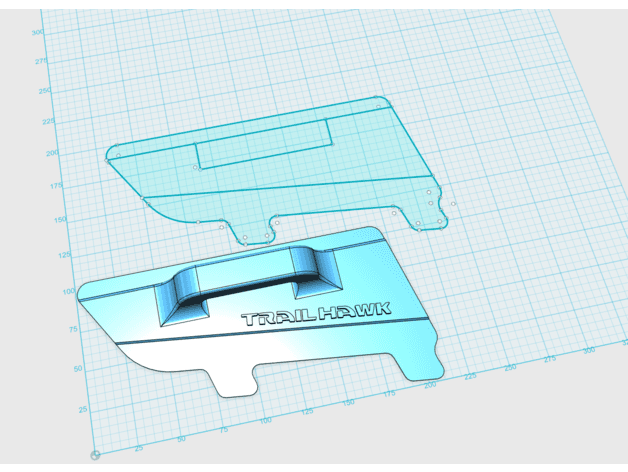

[02]Bounding box211.538 × 104.772 × 21.000 mm
[03]Volume46,268.532 mm³

Field notes

BY JEFF CARLIN (JCARLIN)

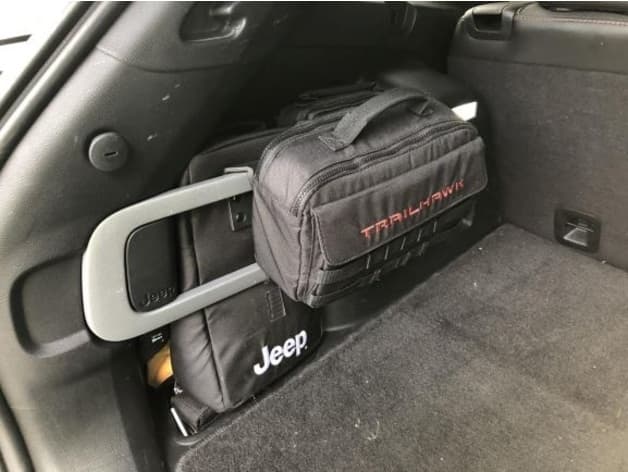

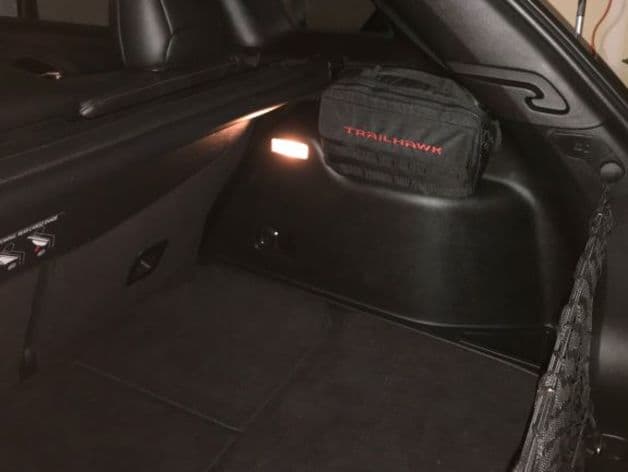

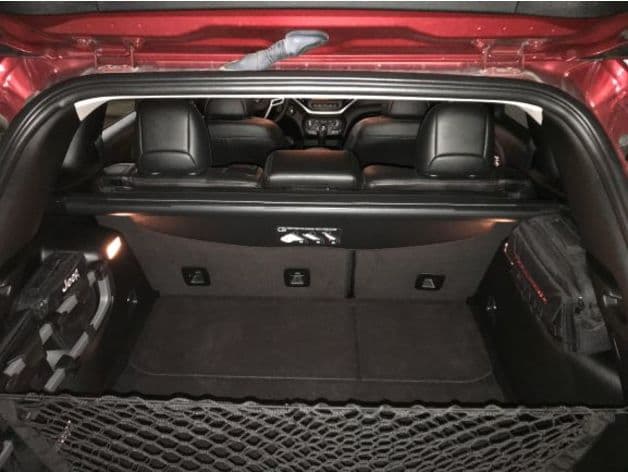

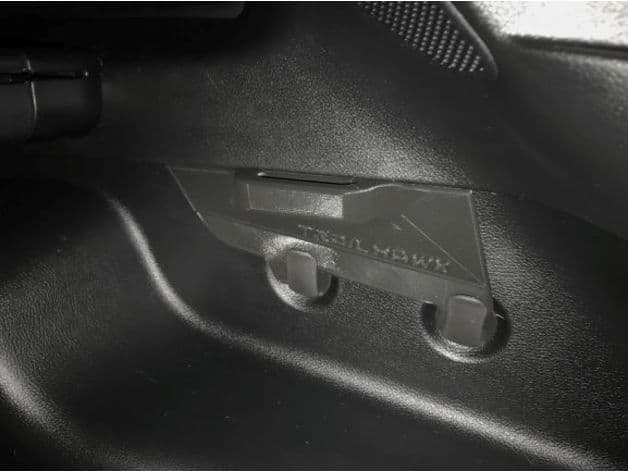

No-drill bracket that relocates the factory off-road accessory kit into the right cargo-side alcove of a 2017 Cherokee KL Trailhawk without the subwoofer. It engages the existing bag hooks and overlapping trim.
