74.5 mm 14-Flute Oil-Filter Wrench

ABS · Nylon1 FILECC-BY-SAMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 74.5 mm 14-Flute Oil-Filter Wrench
OEM: —
APPLICATION: Grand Cherokee WK / WH

Loading 3D viewer...

CARGO ID · CJ-3D / 0947QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0947

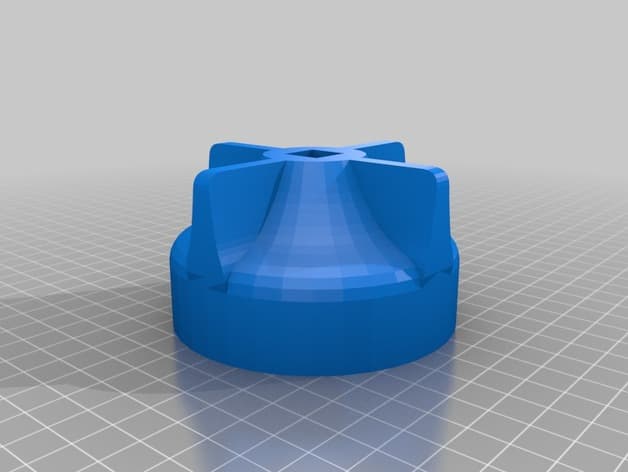

[01]74.5mm_Oil_Filter_Wrench.STL74.5mm_Oil_Filter_Wrench.STL.STL
[02]Bounding box86.733 × 86.733 × 50.000 mm
[03]Volume95,271.103 mm³

Field notes

BY TONYCSTECH (TONYCSTECH)

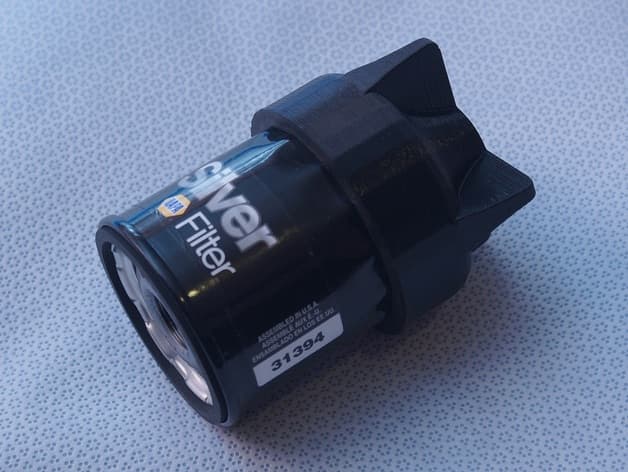

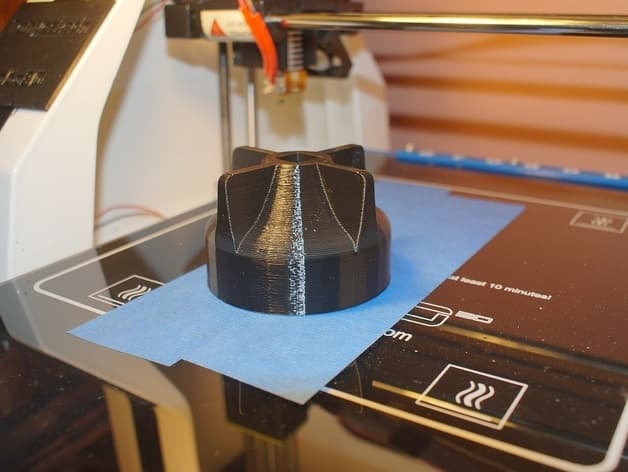

Socket-style service wrench for the 74.5 mm, 14-flute oil-filter housing used by the 2007–2008 Grand Cherokee WK and WH with the 3.0L CRD diesel engine. The creator designed it from measured filter geometry and documented a physical test print.
