Armrest Charging-Module Plug

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Armrest Charging-Module Plug
OEM: —
APPLICATION: Compass MK49

Loading 3D viewer...

CARGO ID · CJ-3D / 1007QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1007

[01]_1638518245.STL_1638518245.STL.STL
[02]Bounding box108.188 × 86.300 × 51.564 mm
[03]Volume32,265.34 mm³

Field notes

BY ВАДИМ ИВАНОВ (SERMAKS)

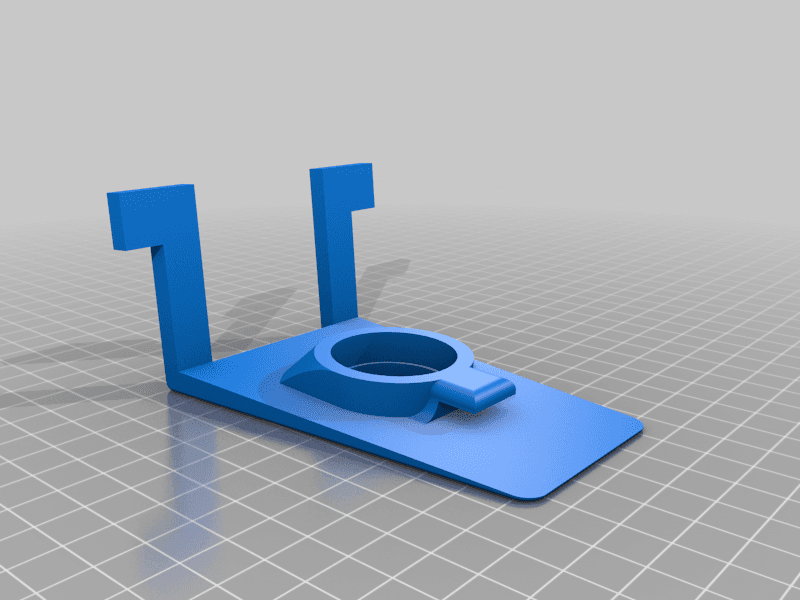

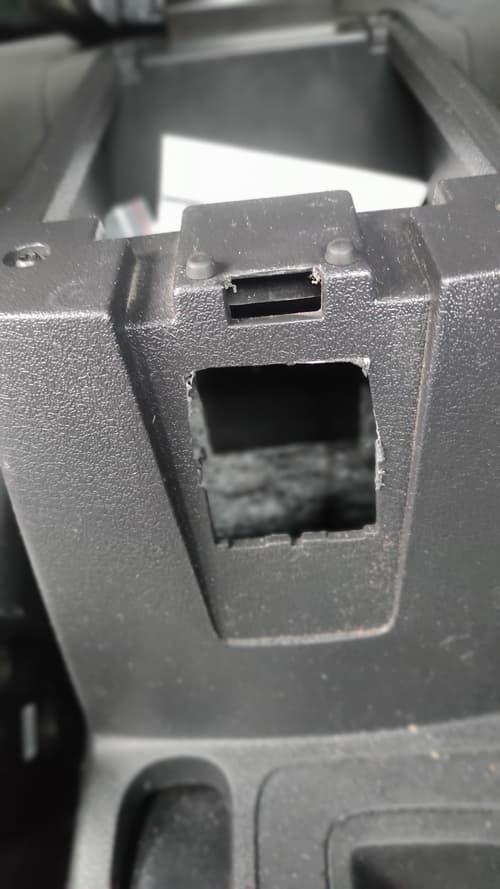

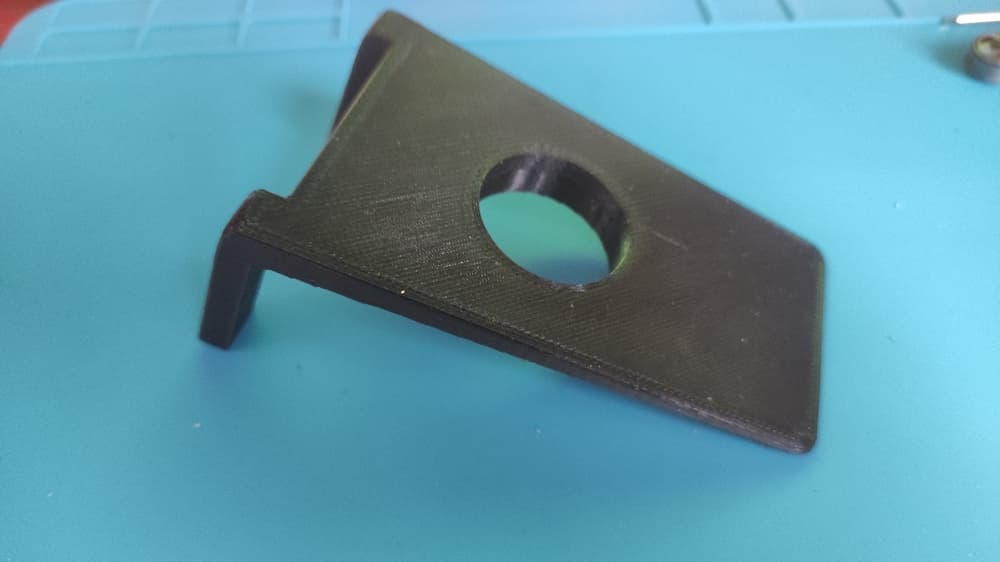

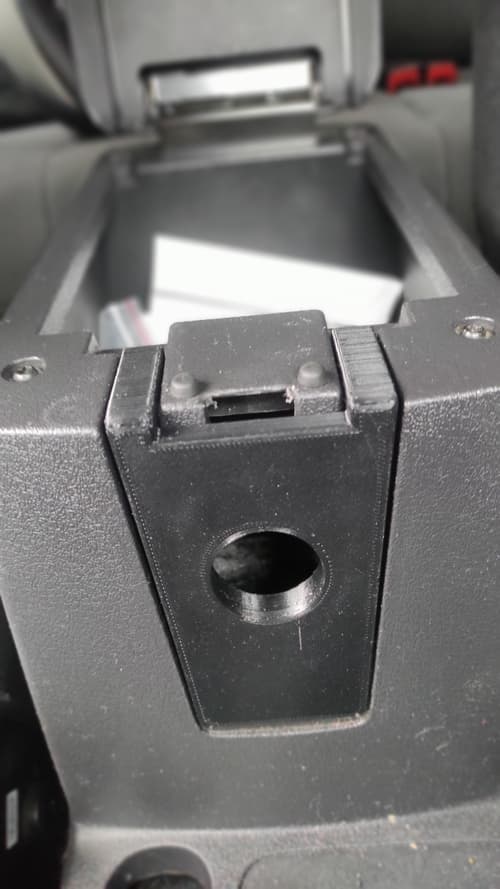

Replacement center-armrest plug with an opening for a charging module, designed for a 2015 Jeep Compass. Source photos document the printed part, its armrest installation, and the charging-module fit.
