Armrest Storage Tray

ABS · Nylon · PETGMULTI-PART2 FILES2 DOWNLOADSCC-BY-NCConsole & storage

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Armrest Storage Tray
OEM: —
APPLICATION: Renegade BU

Loading 3D viewer...

CARGO ID · CJ-3D / 1018QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1018

[01]Vaschetta_no_logo.stlVaschetta_no_logo.stl.STL
[02]Vaschetta.stpVaschetta.stp.STL
[03]Bounding box178.204 × 107.467 × 88.000 mm
[04]Volume159,546.168 mm³

Field notes

BY TOMMY G (SKYTTER)

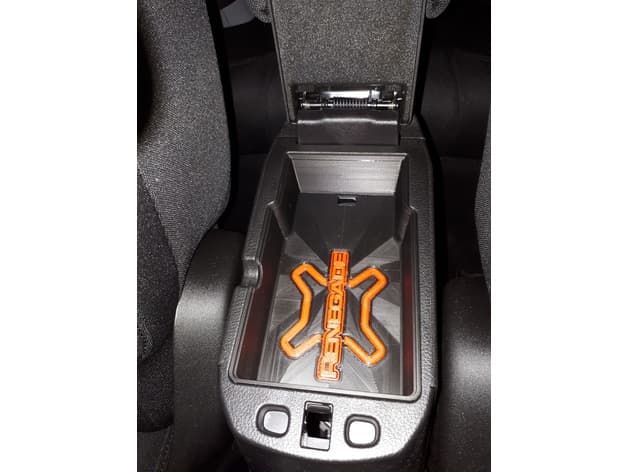

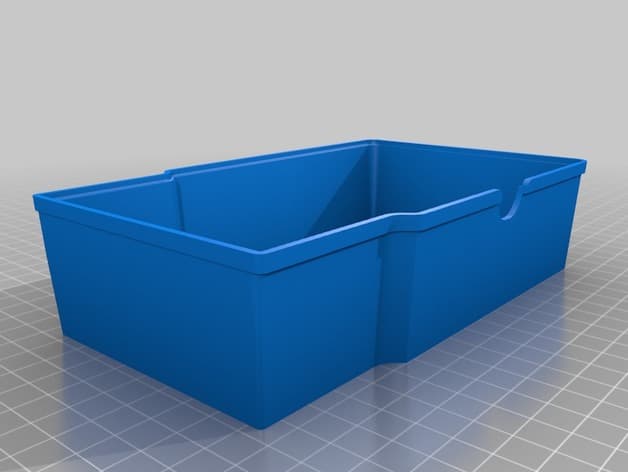

Fitted storage tray for the Jeep Renegade center armrest. The unbranded STL and editable STEP version are included; source photos document the tray seated in the console.

View original source ↗
