Cargo-Area Camping-Lamp Bracket

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Cargo-Area Camping-Lamp Bracket
OEM: —
APPLICATION: Patriot MK74

Loading 3D viewer...

CARGO ID · CJ-3D / 1014QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1014

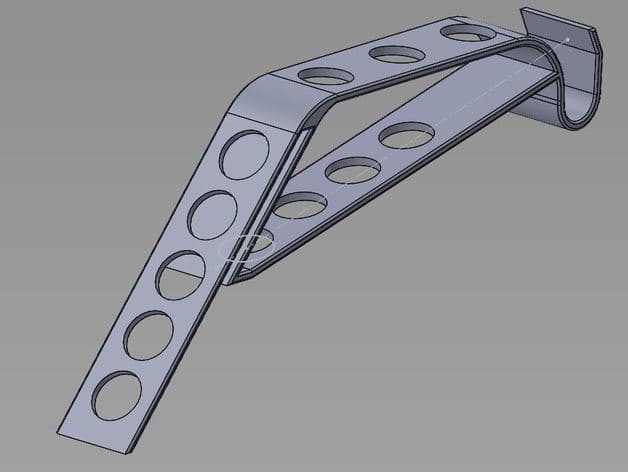

[01]Lamp_Support.STLLamp_Support.STL.STL
[02]Bounding box153.409 × 67.339 × 20.000 mm
[03]Volume10,944.593 mm³

Field notes

BY DEVIS MIZZA (DEVISMIZZA83)

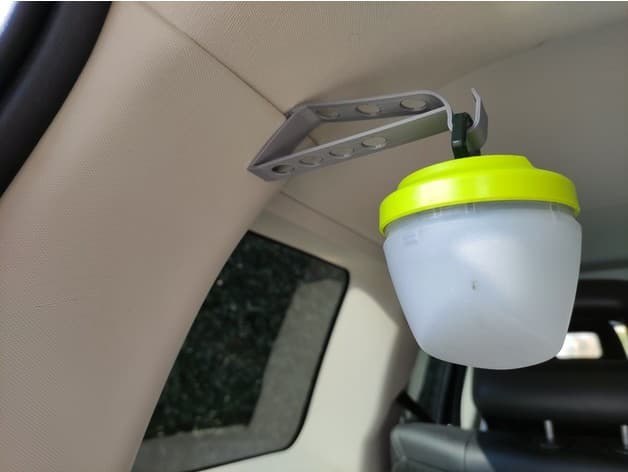

Vehicle-fitted hook bracket for hanging a compact camping lamp from the upper cargo-area trim in a Jeep Patriot. The creator documents the printed bracket and lamp installed at the open tailgate.
