Dashboard Speaker Spacers

ABS · Nylon · PETG1 FILECC-BYElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Dashboard Speaker Spacers
OEM: —
APPLICATION: CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 1000QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1000

[01]CJ_Speaker_Spacers_v2.stlCJ_Speaker_Spacers_v2.stl.STL
[02]Bounding box152.000 × 152.000 × 13.000 mm
[03]Volume19,206.874 mm³

Field notes

BY CHUCK BRYANT (3RDPIG)

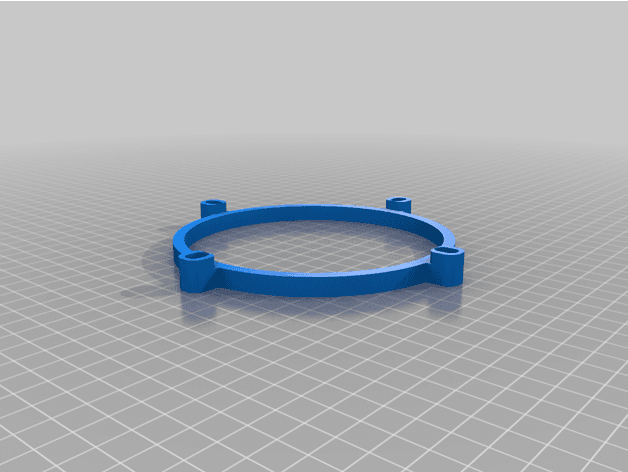

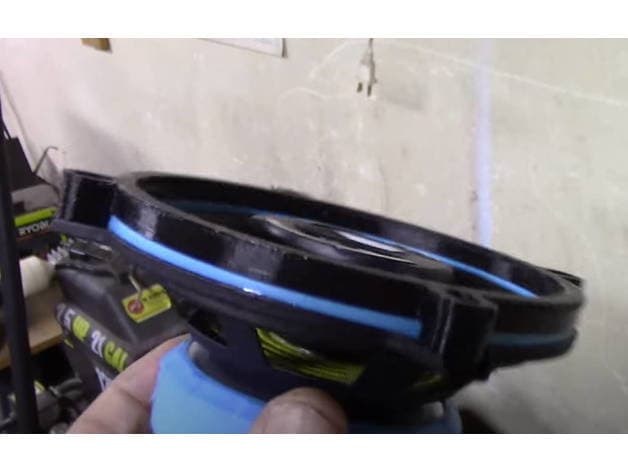

Speaker spacer rings developed while rebuilding a CJ-7 dashboard. They move replacement speakers away from the steel dash just enough for protruding tweeters to clear and are documented against the physical speaker assembly.
