Door Lock Rocker Button

ABS · Nylon1 FILECC-BYElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Door Lock Rocker Button
OEM: —
APPLICATION: Grand Cherokee WK / WH

Loading 3D viewer...

CARGO ID · CJ-3D / 0951QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0951

[01]LockUnlock_2007JeepGrandCherokee_v2.stlLockUnlock_2007JeepGrandCherokee_v2.stl.STL
[02]Bounding box34.737 × 27.700 × 12.450 mm
[03]Volume1,641.052 mm³

Field notes

BY DAVID POBUDA (VORTICAL)

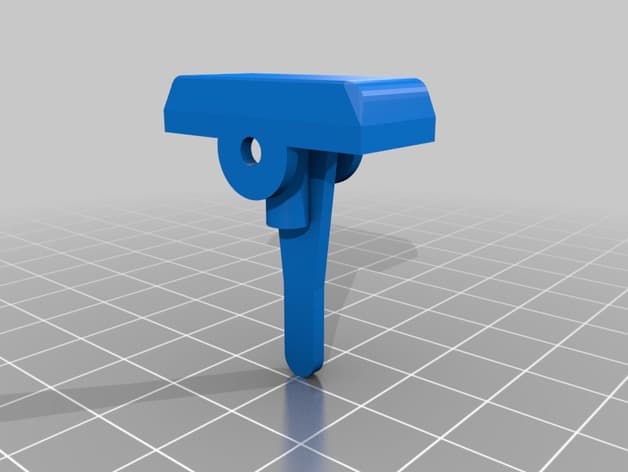

Replacement driver-side lock and unlock rocker for 2005–2010 Grand Cherokee WK and WH door-switch panels. It reuses the original spring and metal spring cap; the creator reverse-engineered and tested it from the failed factory button.
