Factory-Style Windshield Hood Blocks

REPLACES OEM663743 · 670990 · 691731

ABS · NylonMULTI-PART3 FILESCC-BY-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Factory-Style Windshield Hood Blocks
OEM: 663743, 670990, 691731
APPLICATION: CJ-2A, CJ-3A, CJ-3B

Loading 3D viewer...

CARGO ID · CJ-3D / 0991QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

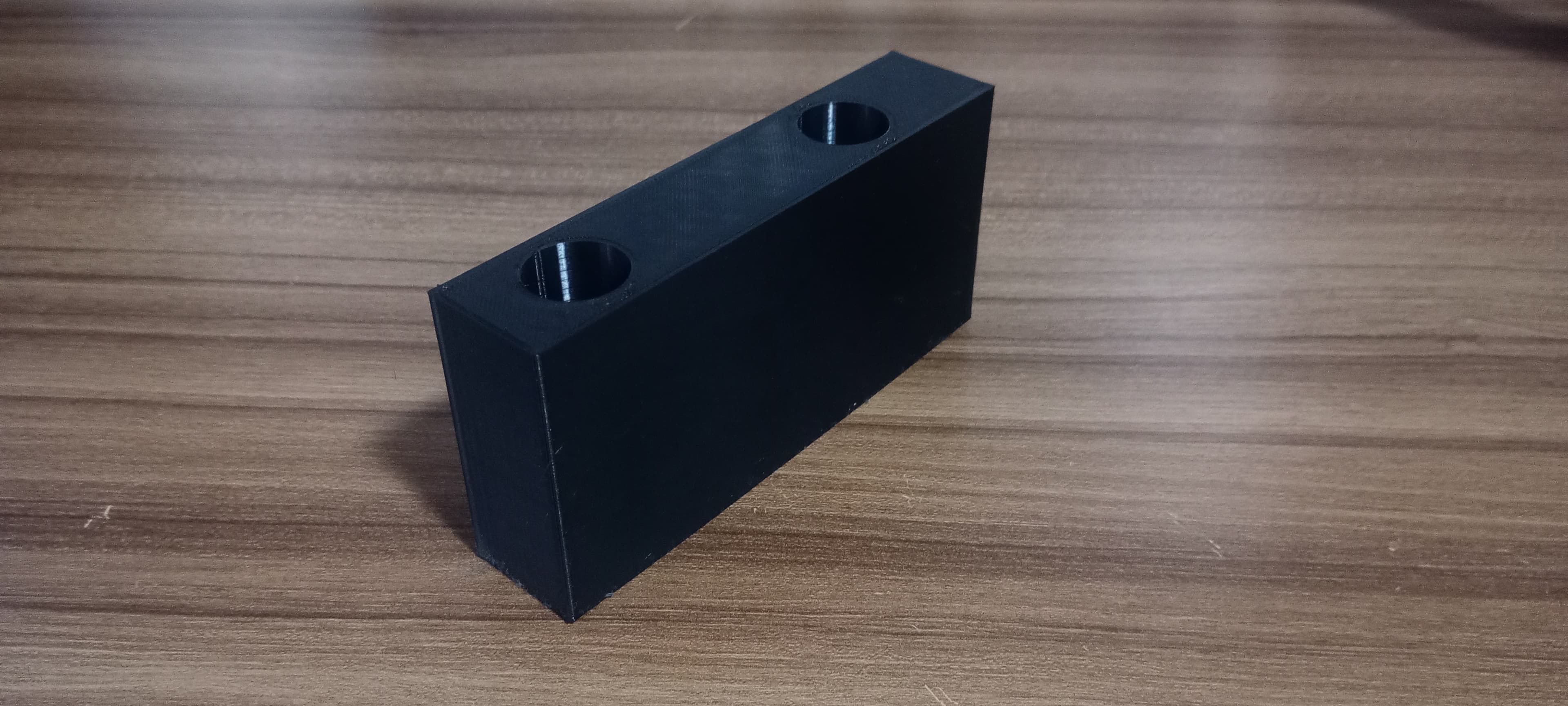

PLATE 01 / 05No caption recorded

Build sheet

MAN-0991

[01]663743-bumper-hood-top-windshield-cj-2a.3mf663743-bumper-hood-top-windshield-cj-2a.3mf.STL
[02]670990-bumper-hood-top-windshield-cj-3a.3mf670990-bumper-hood-top-windshield-cj-3a.3mf.STL
[03]691731-bumper-hood-top-windshield-cj-3b.3mf691731-bumper-hood-top-windshield-cj-3b.3mf.STL
[04]Bounding box137.922 × 117.475 × 25.400 mm
[05]Volume356,149.669 mm³

Field notes

BY NANDO870

Three factory-style windshield hood-block geometries measured from original parts and Willys master-parts documentation. Separate printable blocks cover CJ-2A, CJ-3A, and CJ-3B vehicles; two matching blocks are required per Jeep.
