Five-Gang Rocker-Switch Bracket

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Five-Gang Rocker-Switch Bracket
OEM: —
APPLICATION: CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 1002QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1002

[01]NilightSwitchBracket.stlNilightSwitchBracket.stl.STL
[02]Bounding box165.100 × 43.000 × 35.000 mm
[03]Volume28,512.629 mm³

Field notes

BY ERICH P (5DOT5SIX)

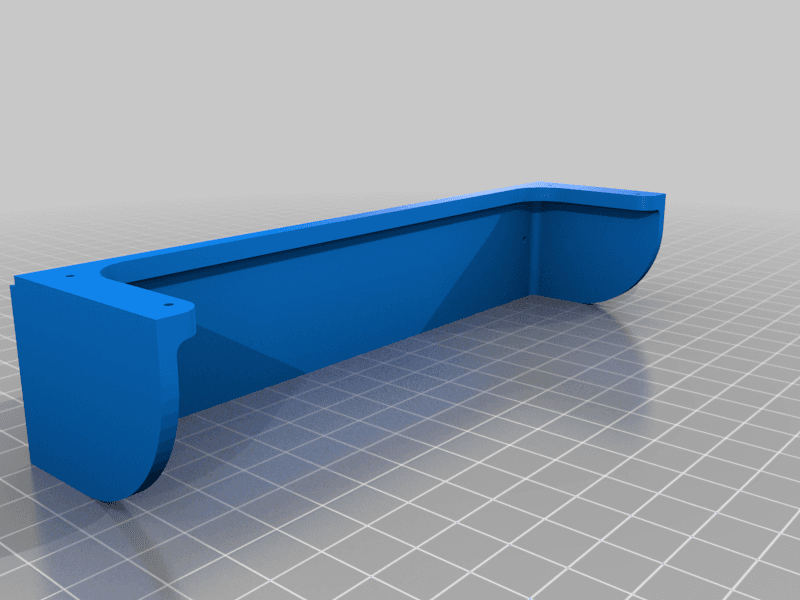

Under-dash bracket for a Nilight five-gang rocker-switch panel in a Jeep CJ-7. The source shows the installed panel and recommends heat-tapping the printed screw holes.
