Flexible Firewall Grommet

TPU1 FILECC-BY-NC-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

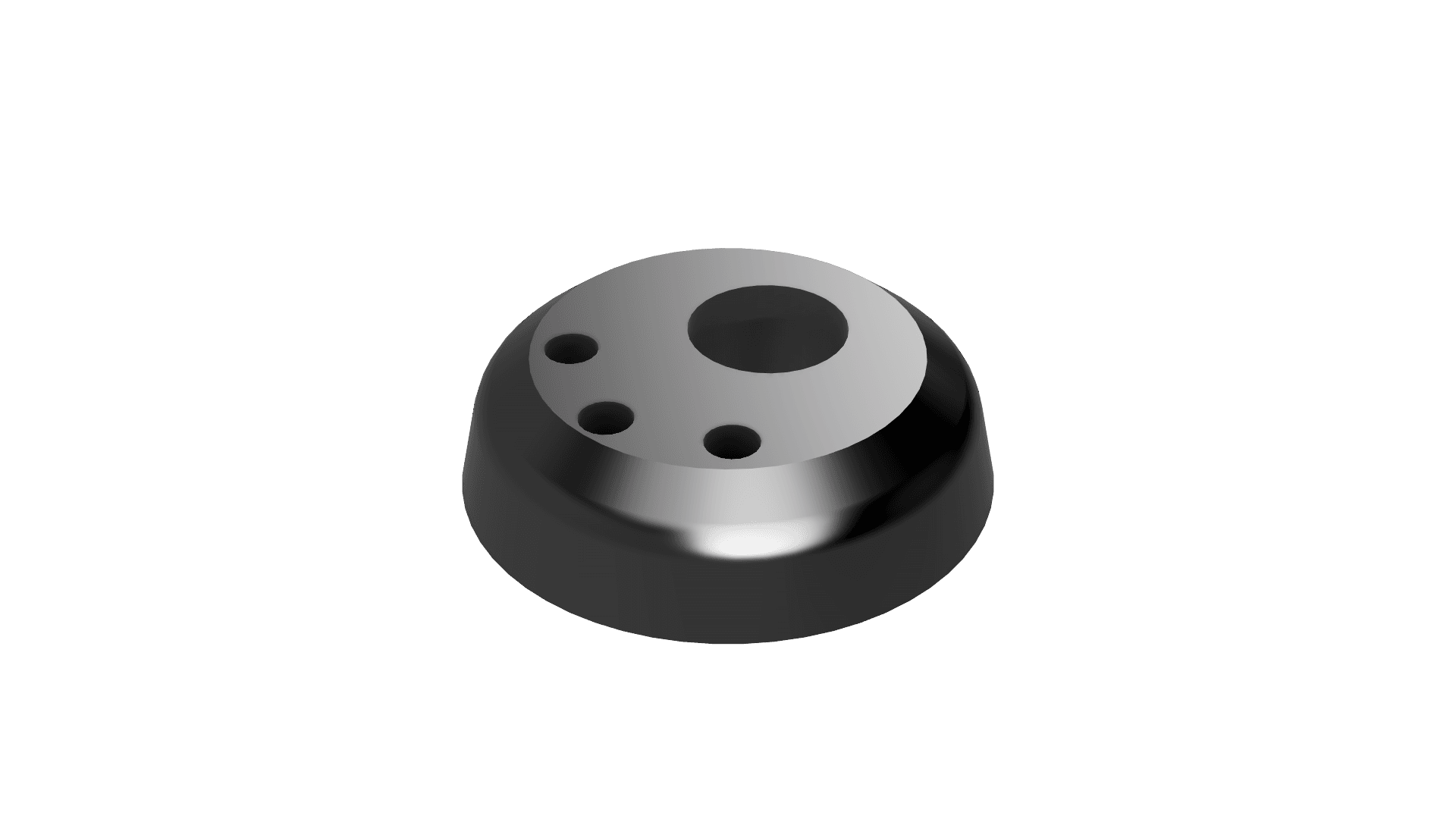

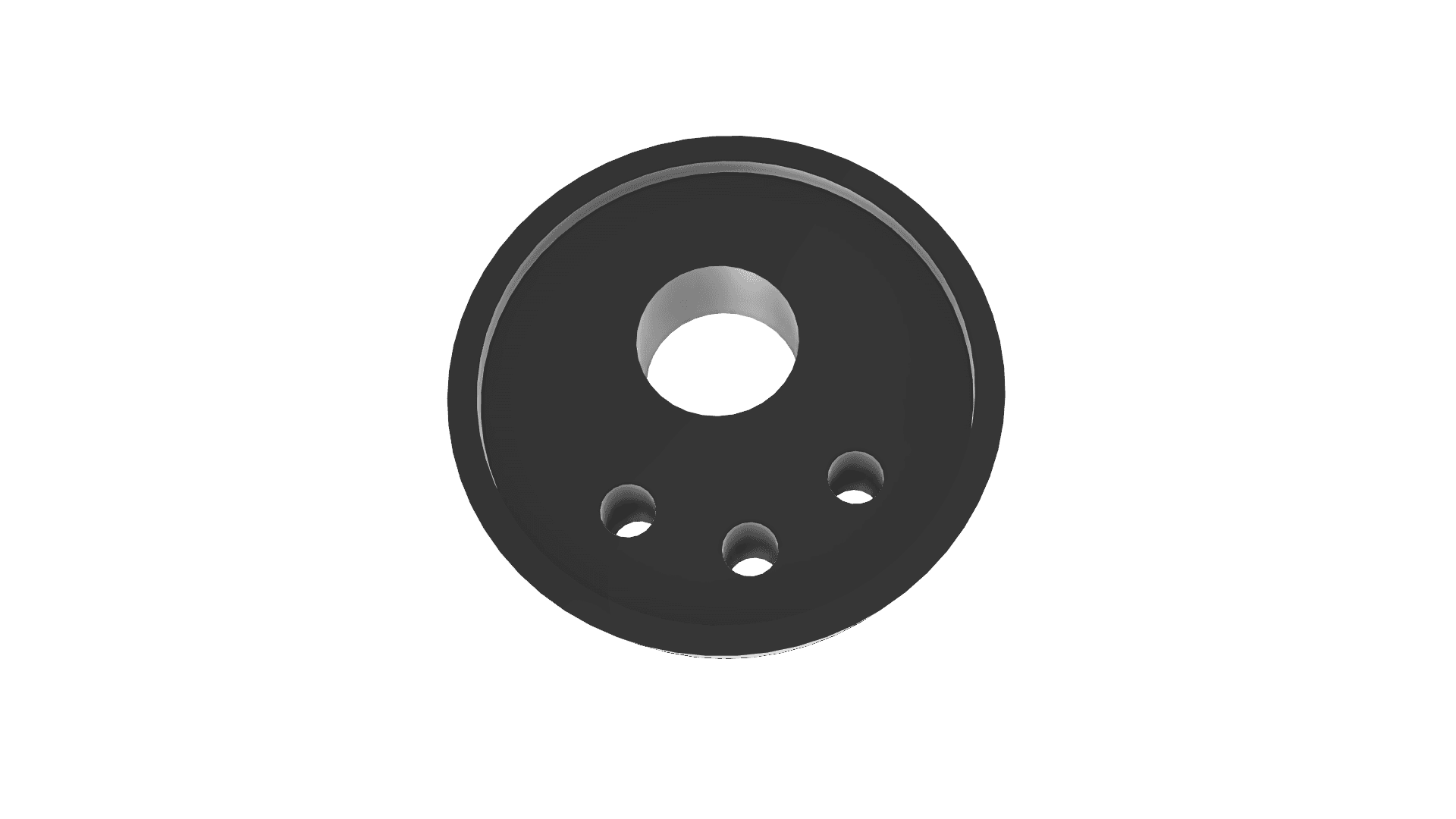

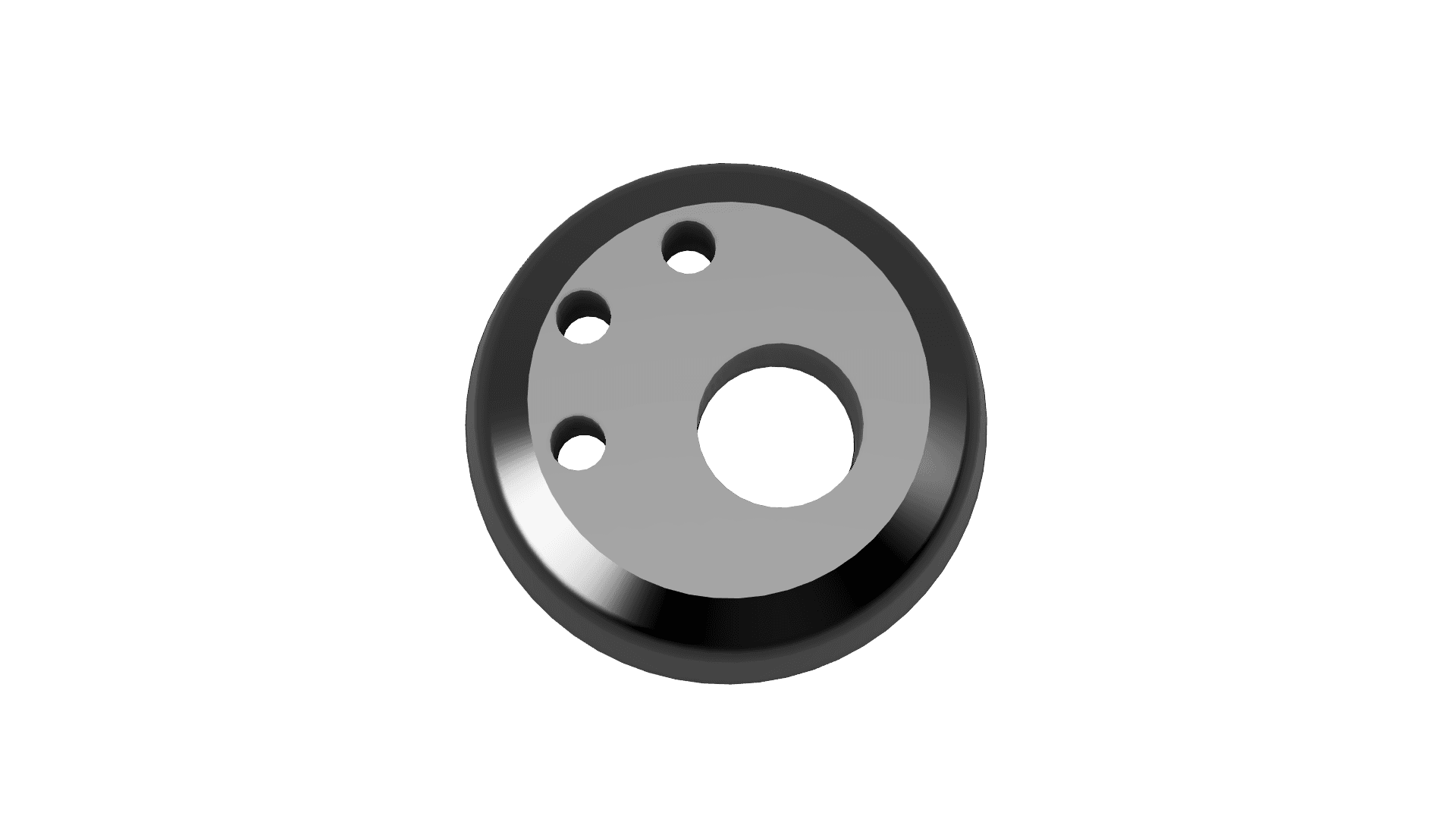

NOMENCLATURE: Flexible Firewall Grommet
OEM: —
APPLICATION: CJ-5

Loading 3D viewer...

CARGO ID · CJ-3D / 0994QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-0994

[01]grommet.stlgrommet.stl.STL
[02]Bounding box47.995 × 47.989 × 12.700 mm
[03]Volume14,117.776 mm³

Field notes

BY JAROMÍR VALACH

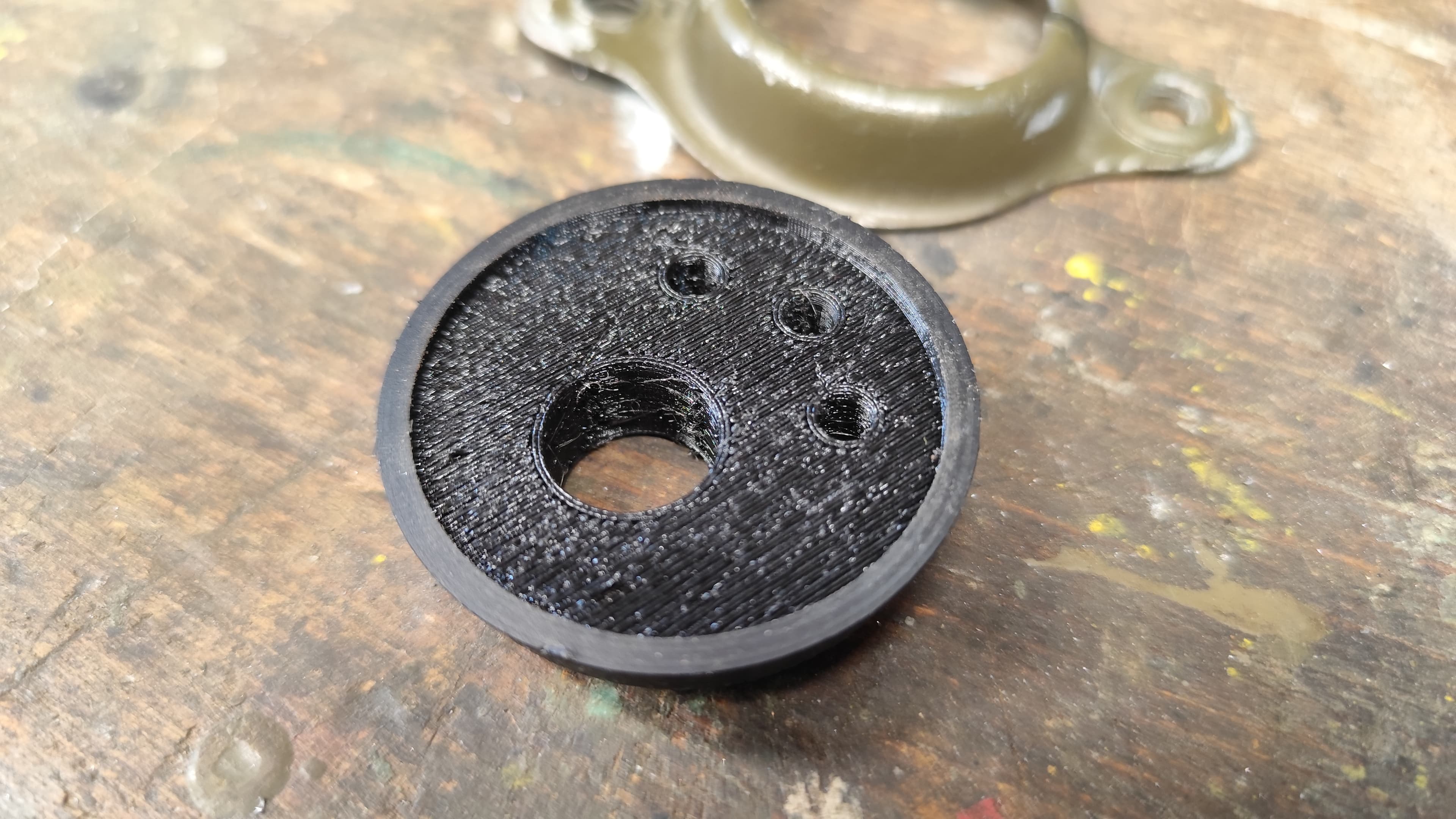

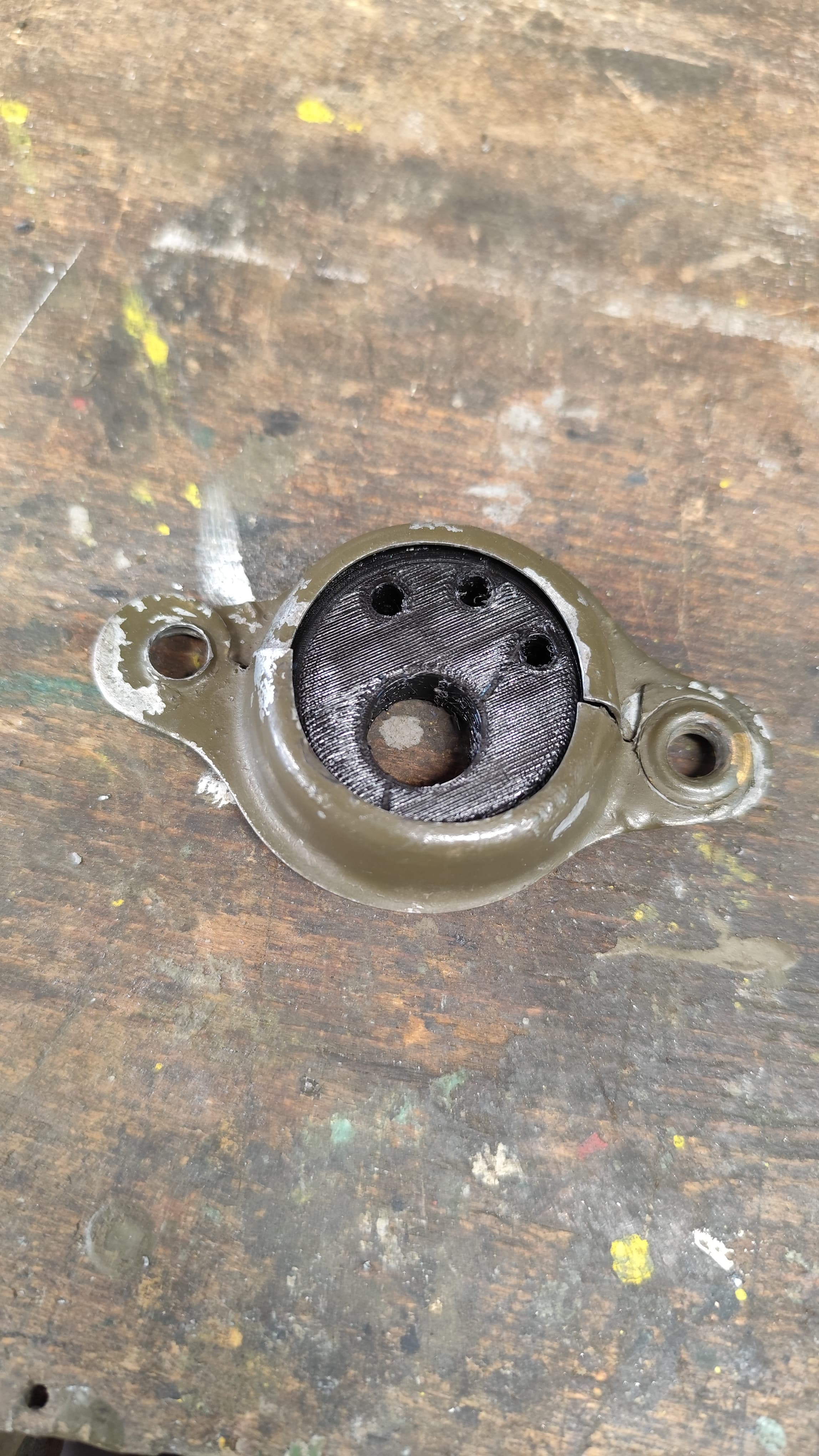

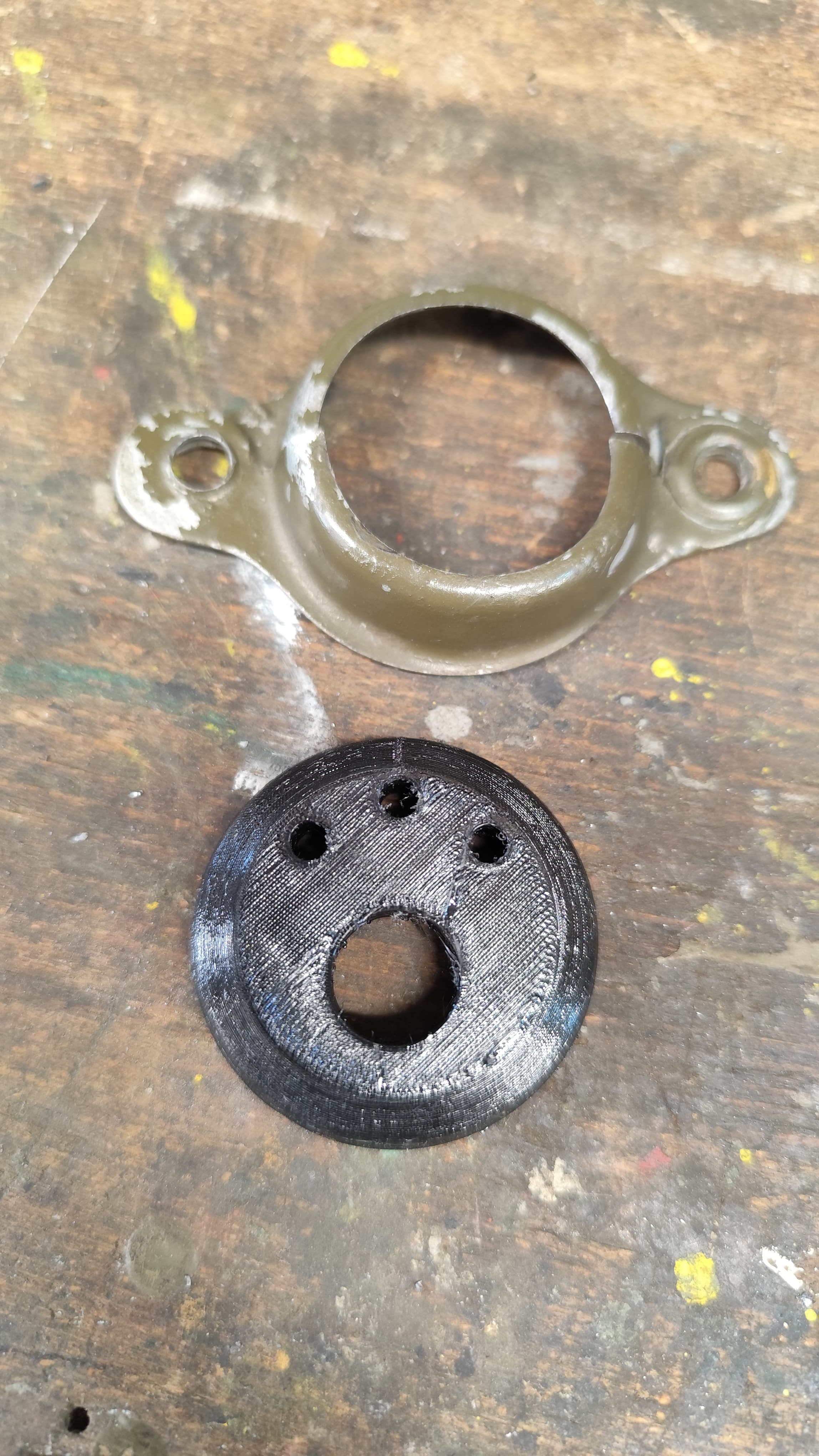

Flexible replacement firewall grommet for Jeep CJ-5 wiring and control-cable pass-throughs. The source documents the TPU print, original comparison, and physical installation around the routed cables.
