Fog-Lamp Wheel-Well Access Cover

ABS · Nylon · PETG1 FILECC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

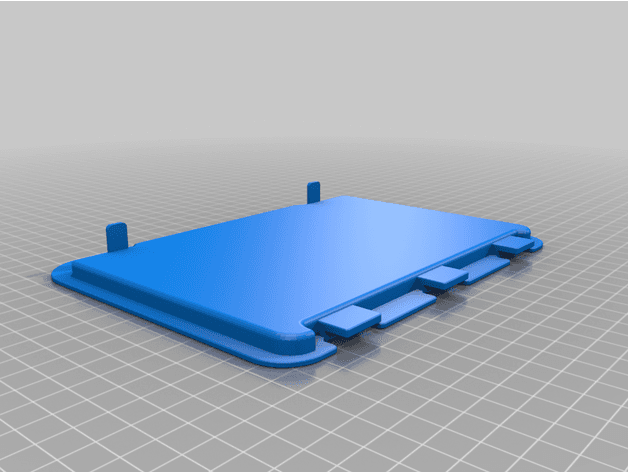

NOMENCLATURE: Fog-Lamp Wheel-Well Access Cover
OEM: —
APPLICATION: Renegade BU

Loading 3D viewer...

CARGO ID · CJ-3D / 1025QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1025

[01]jeep2.stljeep2.stl.STL
[02]Bounding box189.013 × 145.872 × 20.000 mm
[03]Volume189,819.081 mm³

Field notes

BY TRAVIS SVATEK (TRASTEK92)

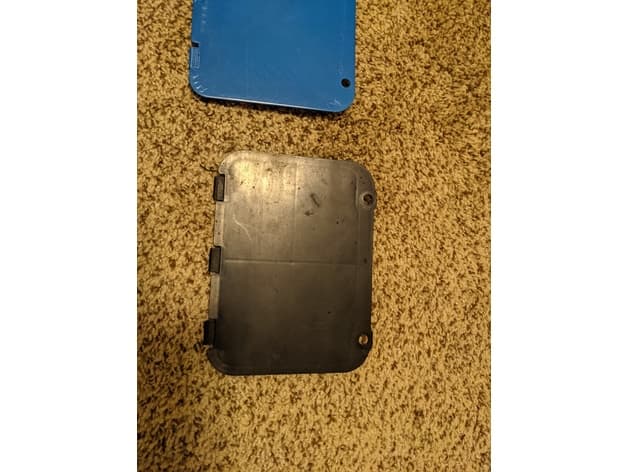

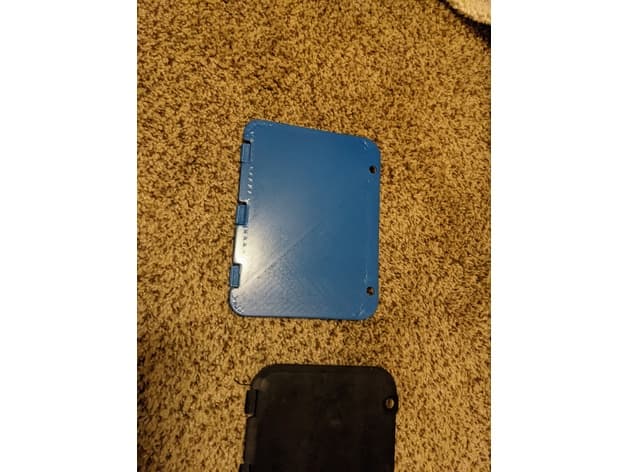

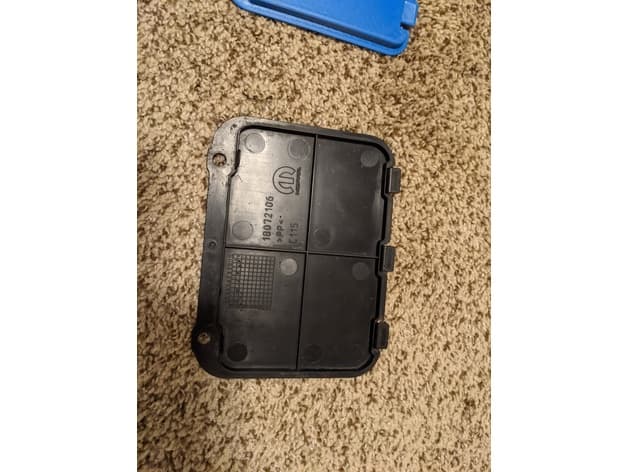

Replacement wheel-well access cover for servicing the fog lamp on a Jeep Renegade. The creator measured the surviving original and reports this more-rigid replacement working.
