Front Wheel-Well Access Flap

ABS · Nylon · PETG1 FILECC-BY-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

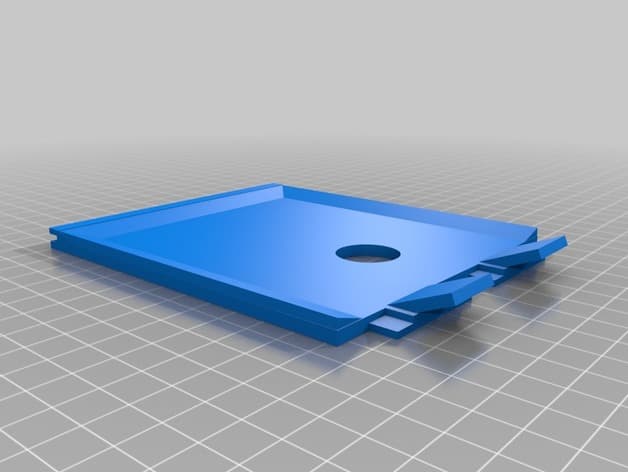

NOMENCLATURE: Front Wheel-Well Access Flap
OEM: —
APPLICATION: Commander XK / XH

Loading 3D viewer...

CARGO ID · CJ-3D / 1031QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1031

[01]kotflgel_jeep.stlkotflgel_jeep.stl.STL
[02]Bounding box140.733 × 107.100 × 11.119 mm
[03]Volume57,893.97 mm³

Field notes

BY BERNHARD MELOW (ROBOMODELL)

Replacement access flap for the Jeep Commander front wheel-well liner. The source gallery documents the printed panel and its installation in the liner opening.
