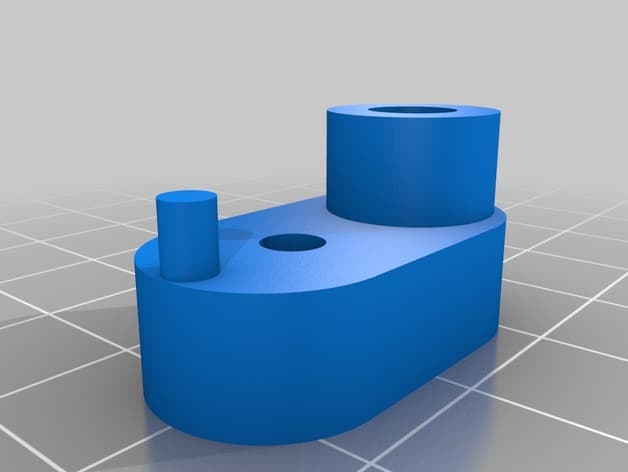

Headlight-Bucket Adjuster

ABS · Nylon1 FILECC-BY-NCLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Headlight-Bucket Adjuster
OEM: —
APPLICATION: CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 0996QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0996

[01]light_adjuster.stllight_adjuster.stl.STL
[02]Bounding box28.000 × 15.000 × 15.000 mm
[03]Volume3,232.484 mm³

Field notes

BY ROMAN (ROMAN13)

Replacement plastic headlight-bucket adjuster for a 1985 Jeep CJ-7. It reuses the original adjuster bolts, replaces the factory rivets with small machine screws, and remained in service after five months.

View original source ↗
