Late-1970s Grille Body Bushings

TPUMULTI-PART3 FILESCC-BY-NC-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Late-1970s Grille Body Bushings
OEM: —
APPLICATION: CJ-5, CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 0995QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0995

[01]grille_bushing_lower.stlgrille_bushing_lower.stl.STL
[02]grille_bushing_upper.stlgrille_bushing_upper.stl.STL
[03]grille_bushing_upper_flat.stlgrille_bushing_upper_flat.stl.STL
[04]Bounding box50.799 × 50.799 × 47.497 mm
[05]Volume70,609.799 mm³

Field notes

BY AD3M3R5

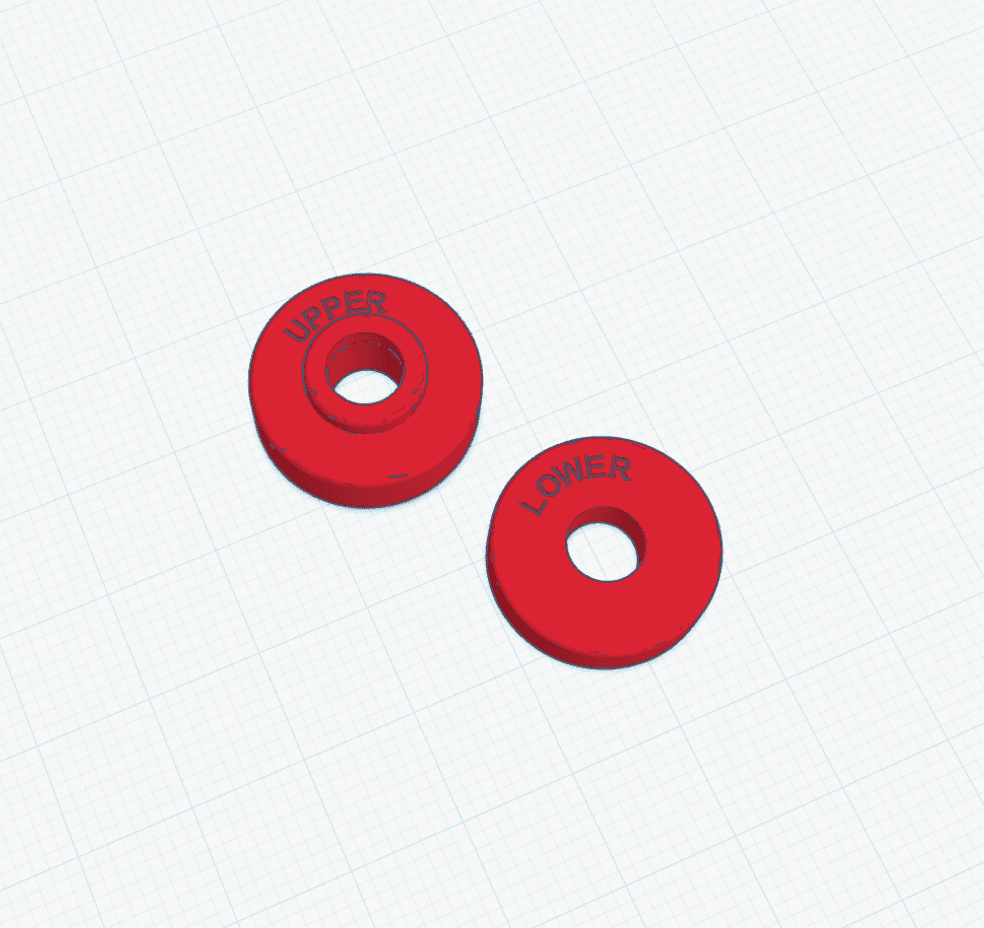

Upper and lower flexible bushings for mounting the front grille to the body on late-1970s Jeep CJ-5 and CJ-7 vehicles. Flat- and recessed-upper variants plus the lower bushing are included for TPU printing.
