Rear-Seat Vent Extender

ABS · Nylon · PETG1 FILECC-BY-SADashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Rear-Seat Vent Extender
OEM: —
APPLICATION: Compass MP

Loading 3D viewer...

CARGO ID · CJ-3D / 1011QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1011

[01]jeepcompass-ventguide.3mfjeepcompass-ventguide.3mf.STL

Field notes

BY JM18190

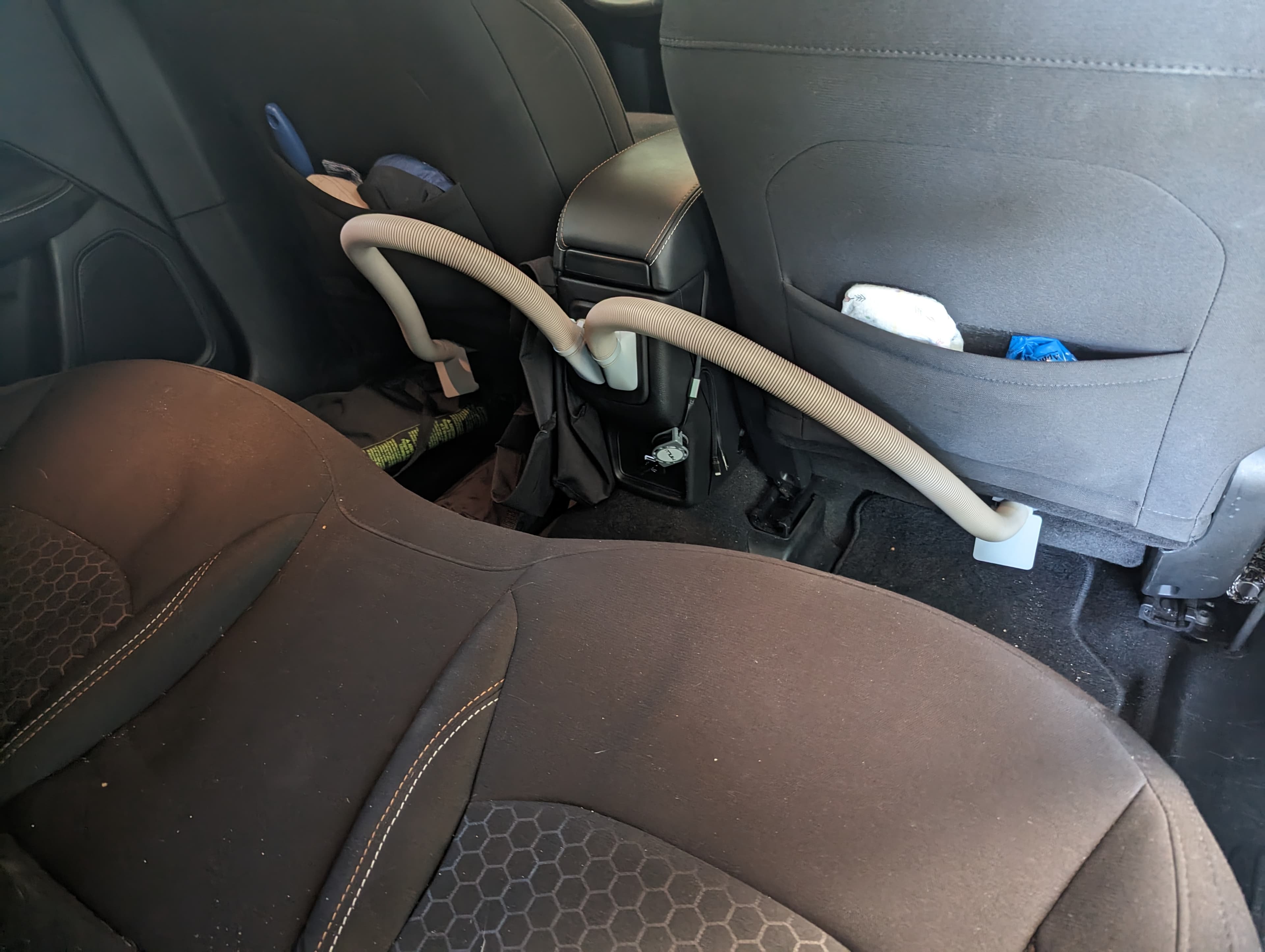

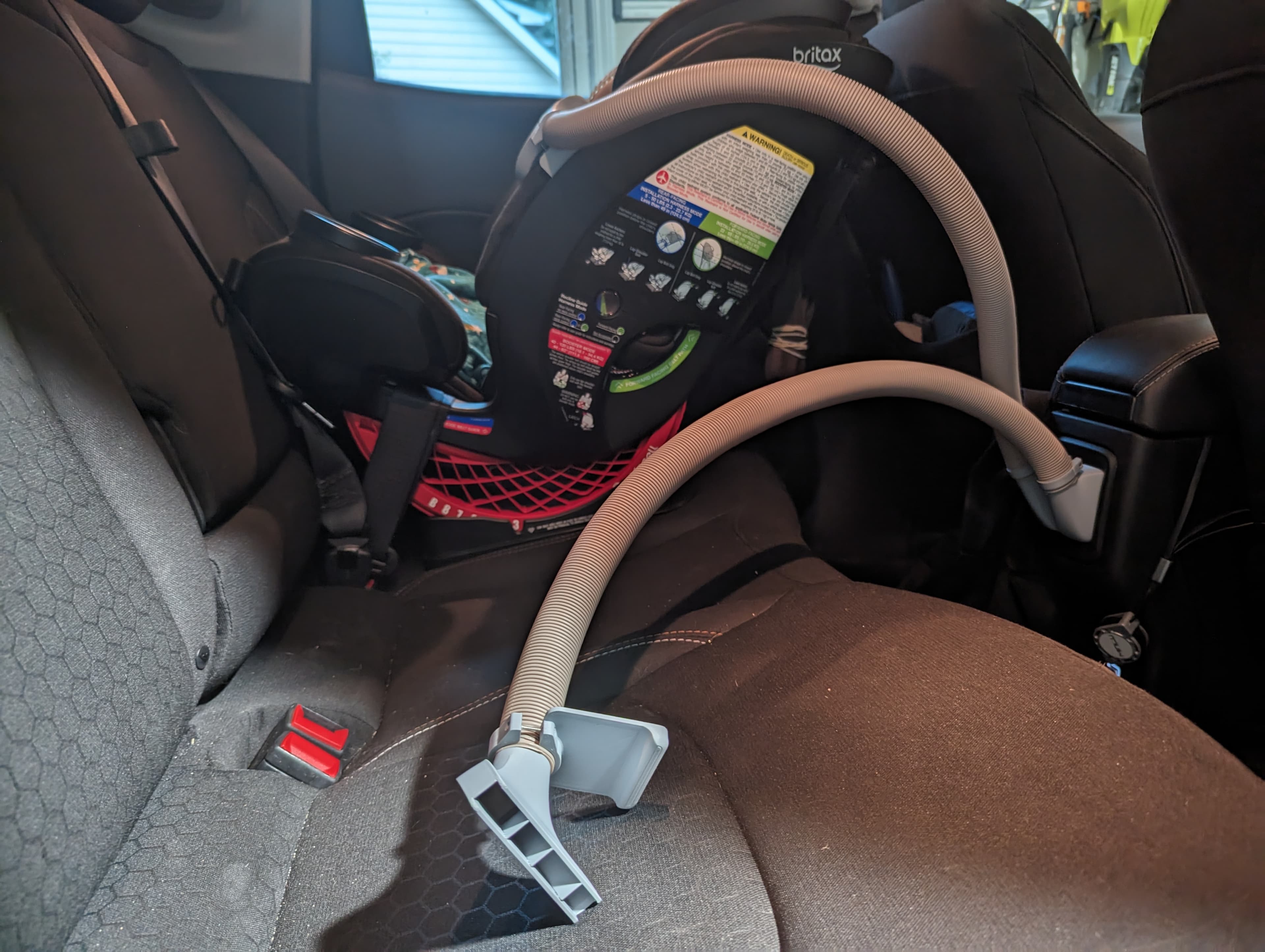

Rear HVAC vent manifold and guide for the second-generation Jeep Compass. It installs behind the center-console vent trim and accepts one-inch corrugated hose to route air toward rear child seats; M2 fasteners secure the guides and clamps.
