REDARC Trailer-Brake Knob Mount

ABS · Nylon · PETG1 FILECC-BY-NC-SADashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: REDARC Trailer-Brake Knob Mount
OEM: —
APPLICATION: Grand Cherokee WL

Loading 3D viewer...

CARGO ID · CJ-3D / 0969QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0969

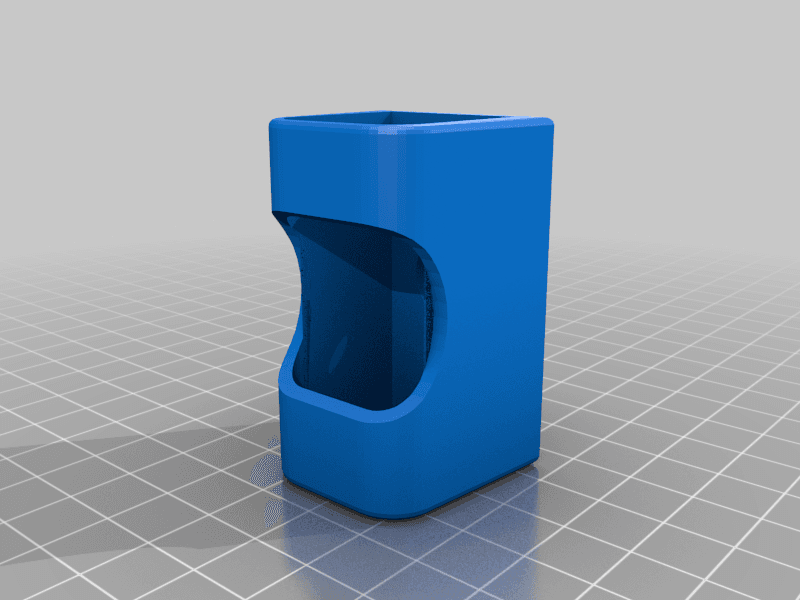

[01]GrandCherokee_WL_Redarc_Controller_Mount_V3.stlGrandCherokee_WL_Redarc_Controller_Mount_V3.stl.STL
[02]Bounding box53.955 × 33.302 × 33.103 mm
[03]Volume15,081.421 mm³

Field notes

BY (EVMOIUS)

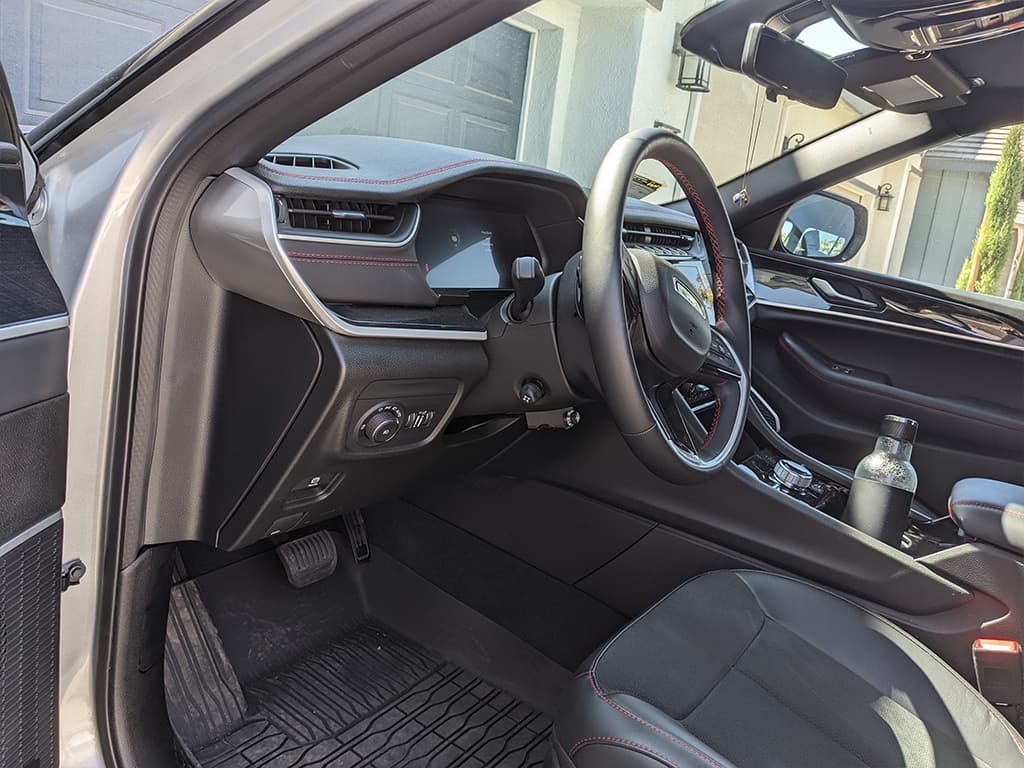

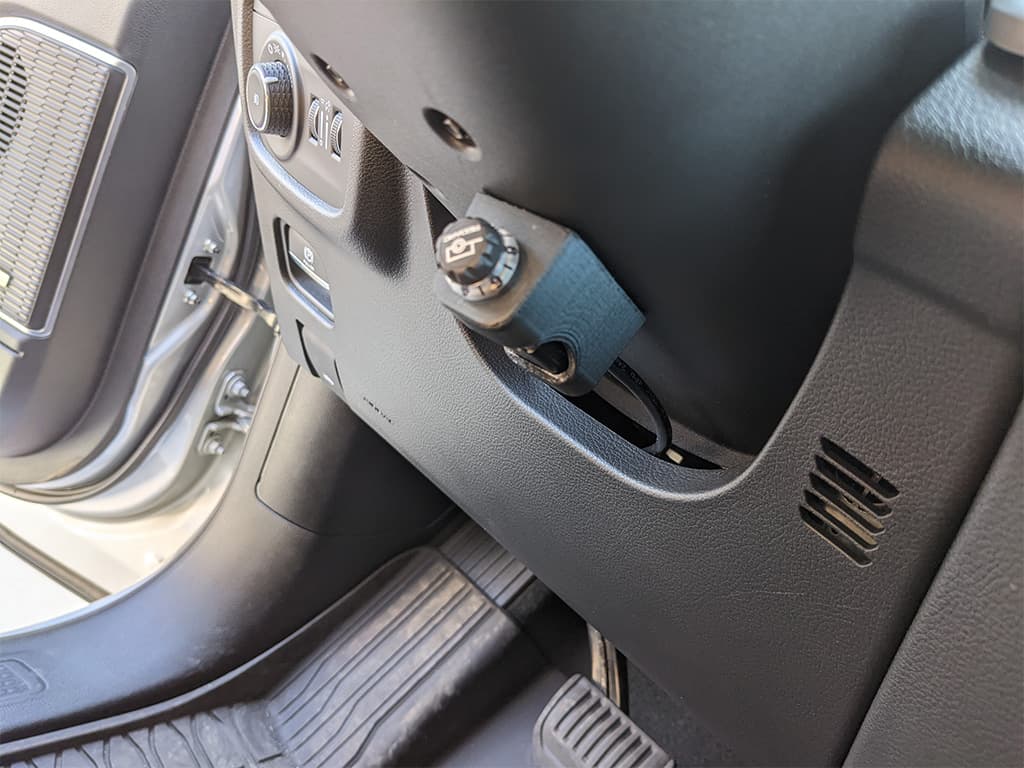

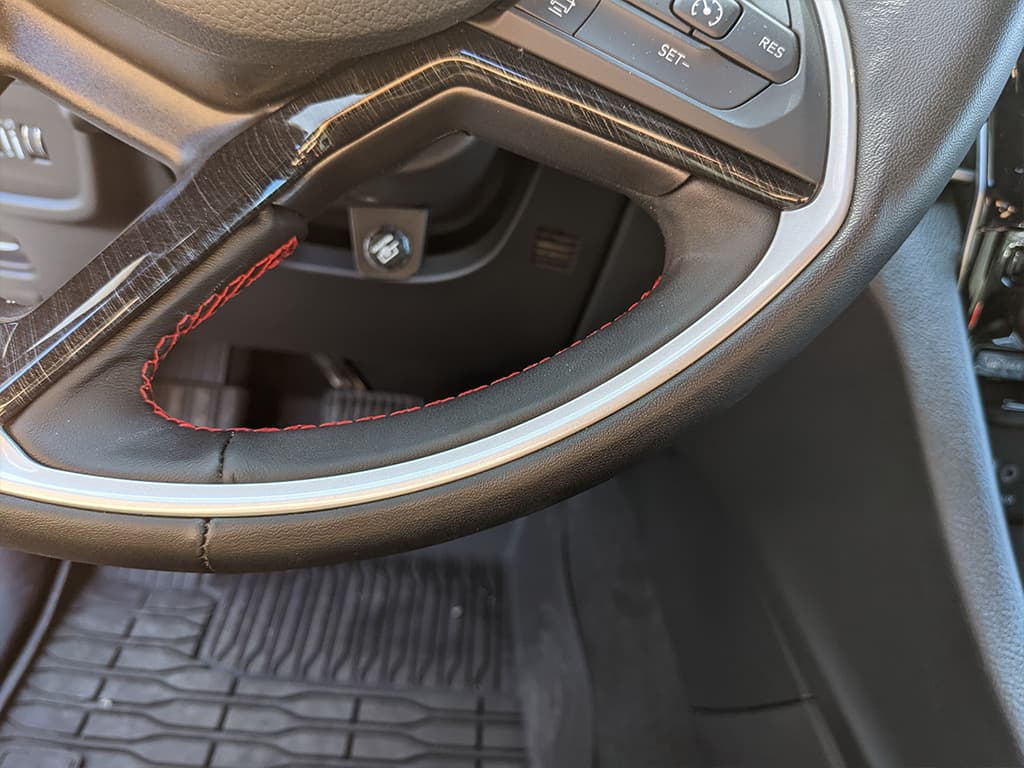

No-drill mount for a REDARC trailer-brake controller knob in Grand Cherokee WL interiors. It reuses a trim screw below the steering wheel, preserves steering-column movement and knee clearance, and can be stabilized with double-sided tape.

View original source ↗
