Roof-Antenna Trim Bezel

ABS · Nylon · PETG1 FILECC-BYExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Roof-Antenna Trim Bezel
OEM: —
APPLICATION: Commander XK / XH

Loading 3D viewer...

CARGO ID · CJ-3D / 1035QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1035

[01]Jeep_Commander_Antenna_Mount.stlJeep_Commander_Antenna_Mount.stl.STL
[02]Bounding box37.650 × 25.500 × 22.000 mm
[03]Volume4,079.16 mm³

Field notes

BY GUY

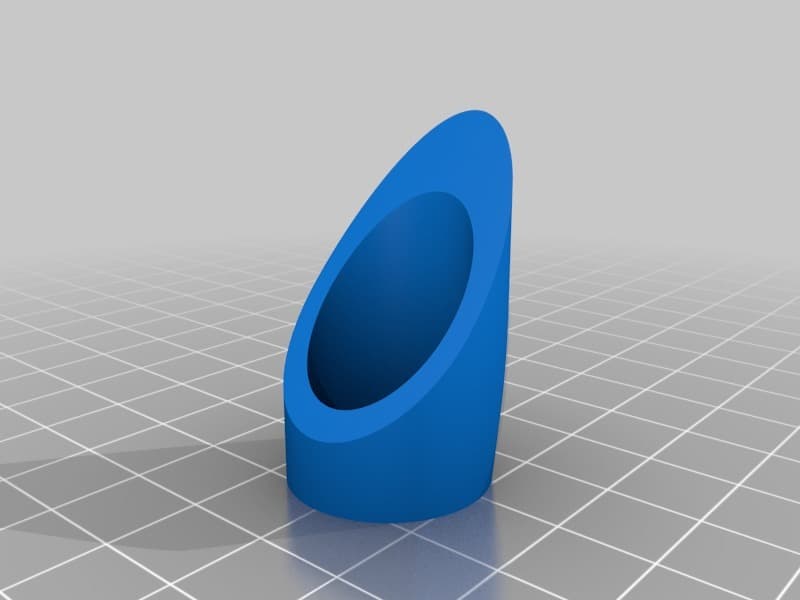

Replacement exterior trim bezel for the roof antenna on a Jeep Commander. The creator updated the geometry for fit and documents the broken original beside the printed replacement.

View original source ↗
