Seat-Back MOLLE Panel Mount Set

ABS · Nylon · PETGMULTI-PART3 FILESCC-BY-NC-SASeats

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Seat-Back MOLLE Panel Mount Set
OEM: —
APPLICATION: Commander XK / XH

Loading 3D viewer...

CARGO ID · CJ-3D / 1036QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

10 PLATES

PLATE 01 / 10No caption recorded

Build sheet

MAN-1036

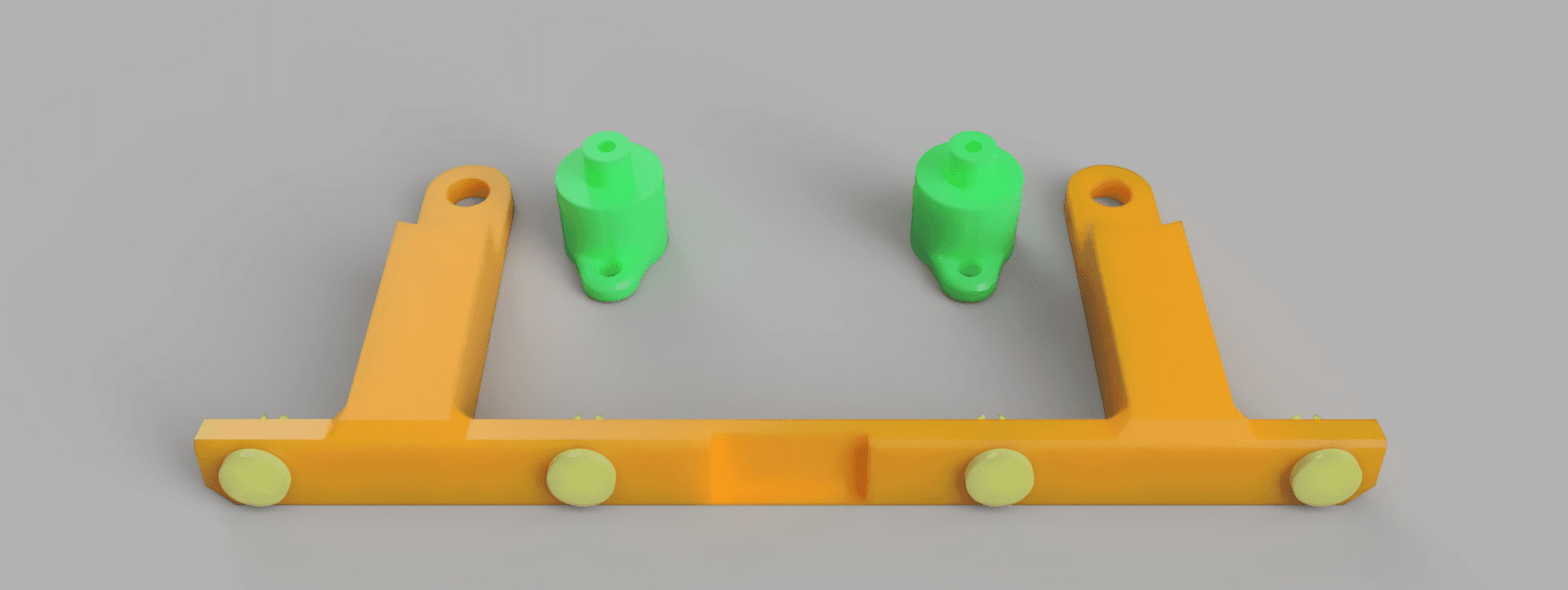

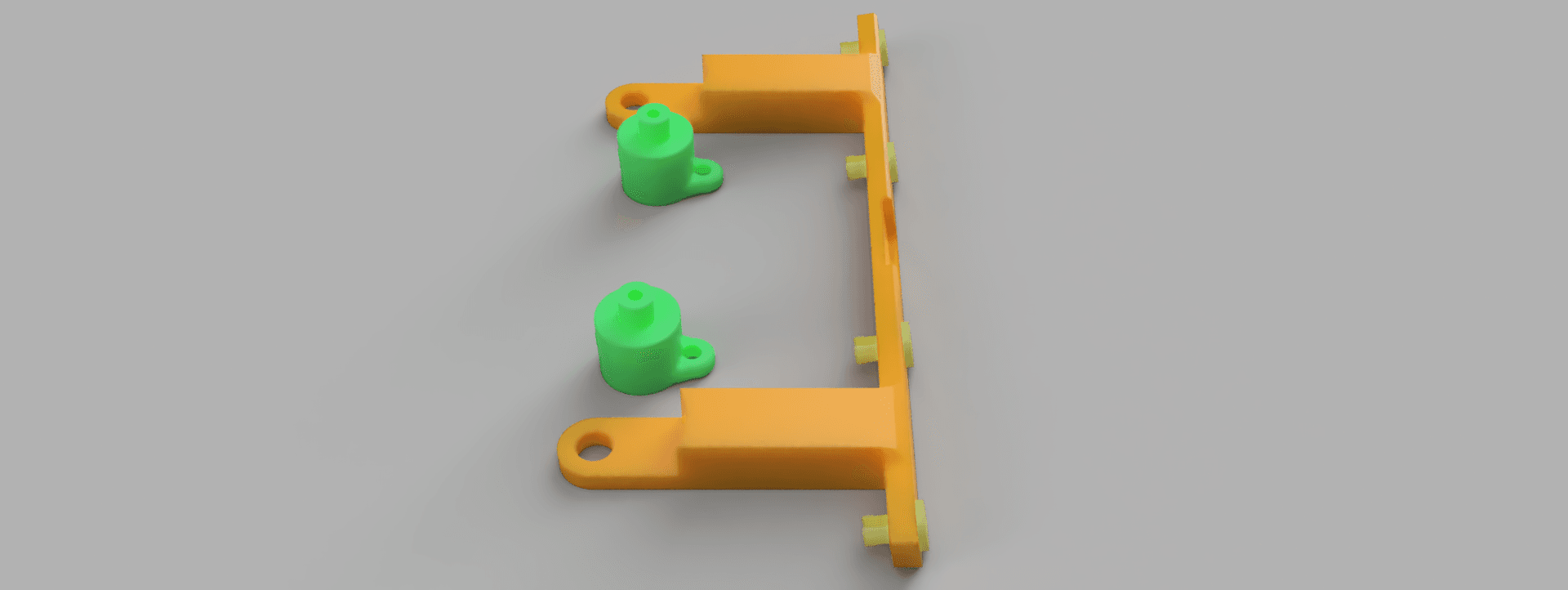

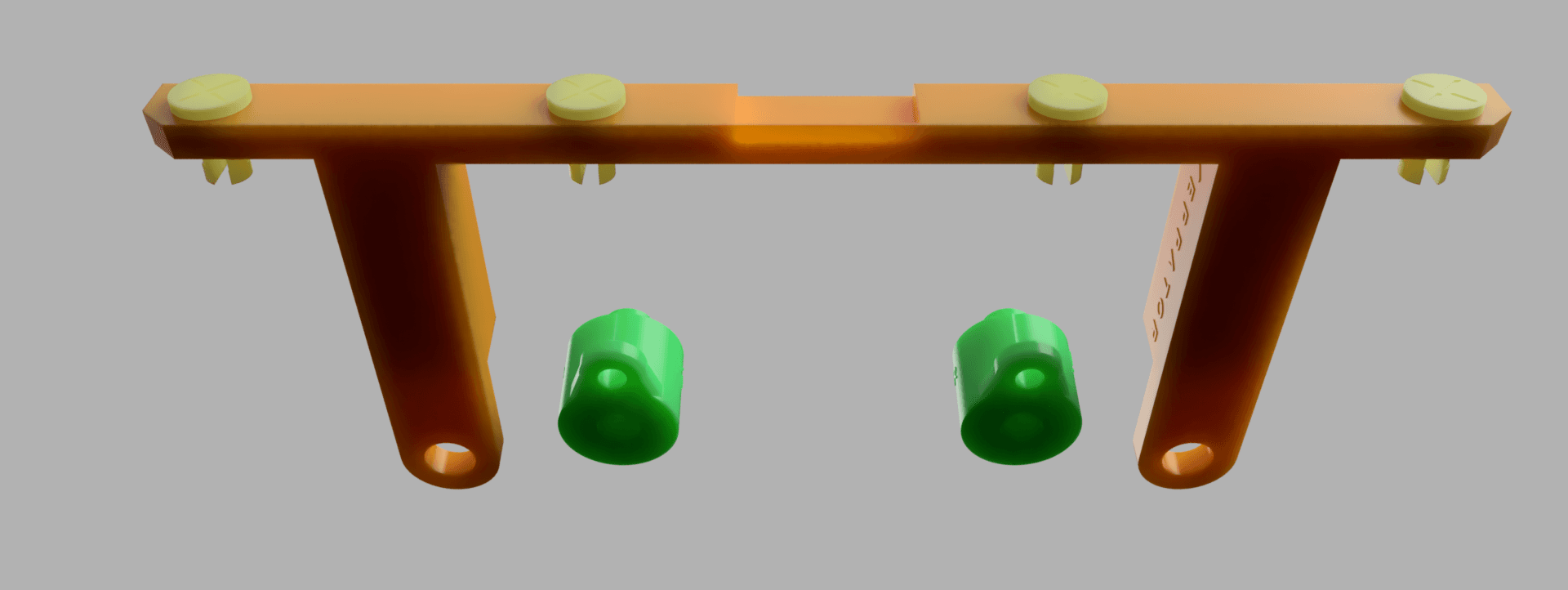

[01]bracket_headrest.stlbracket_headrest.stl.STL
[02]connector_low.stlconnector_low.stl.STL
[03]pin.stlpin.stl.STL
[04]Bounding box275.175 × 96.024 × 24.400 mm
[05]Volume77,872.304 mm³

Field notes

BY XERPATOR

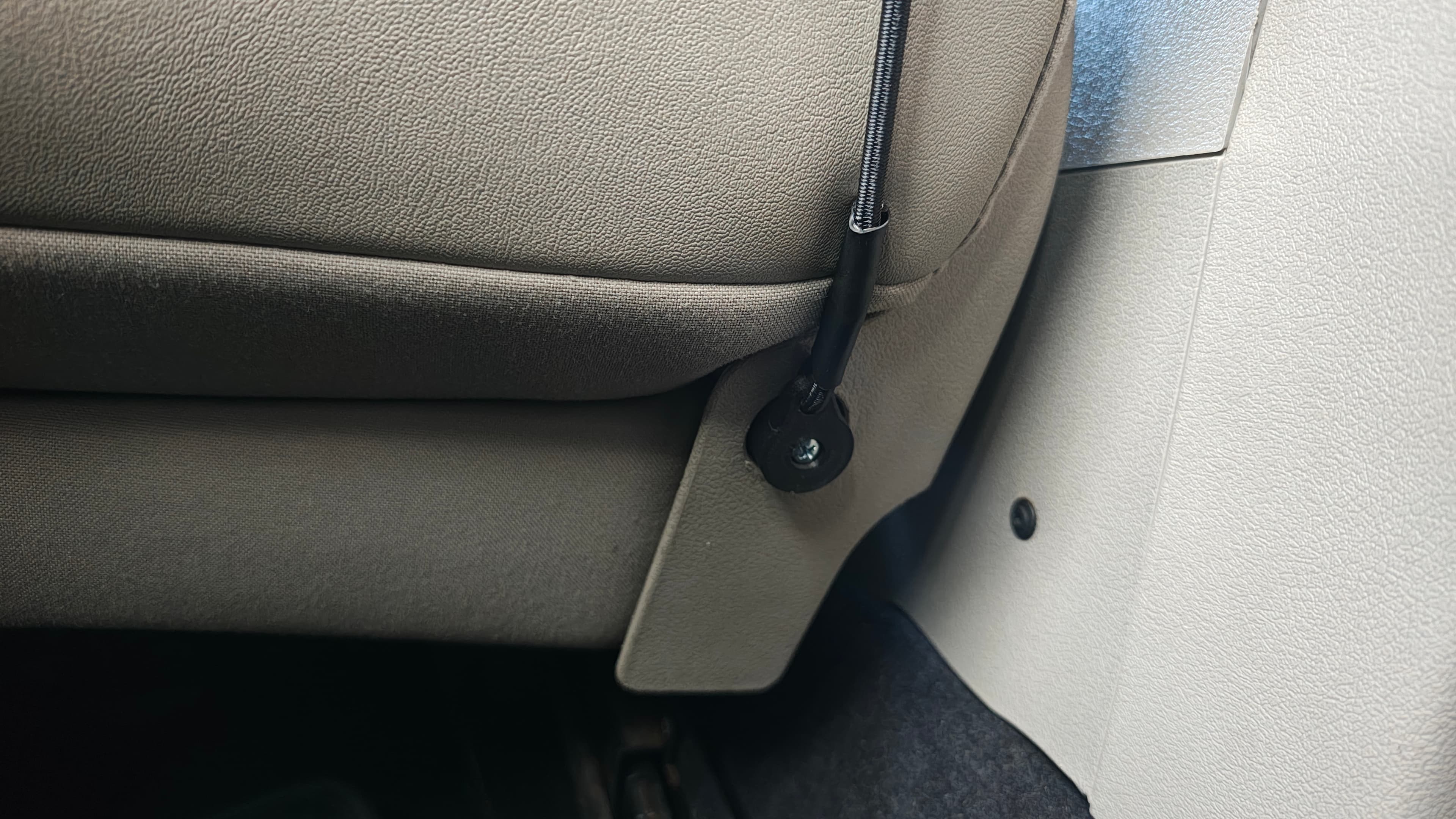

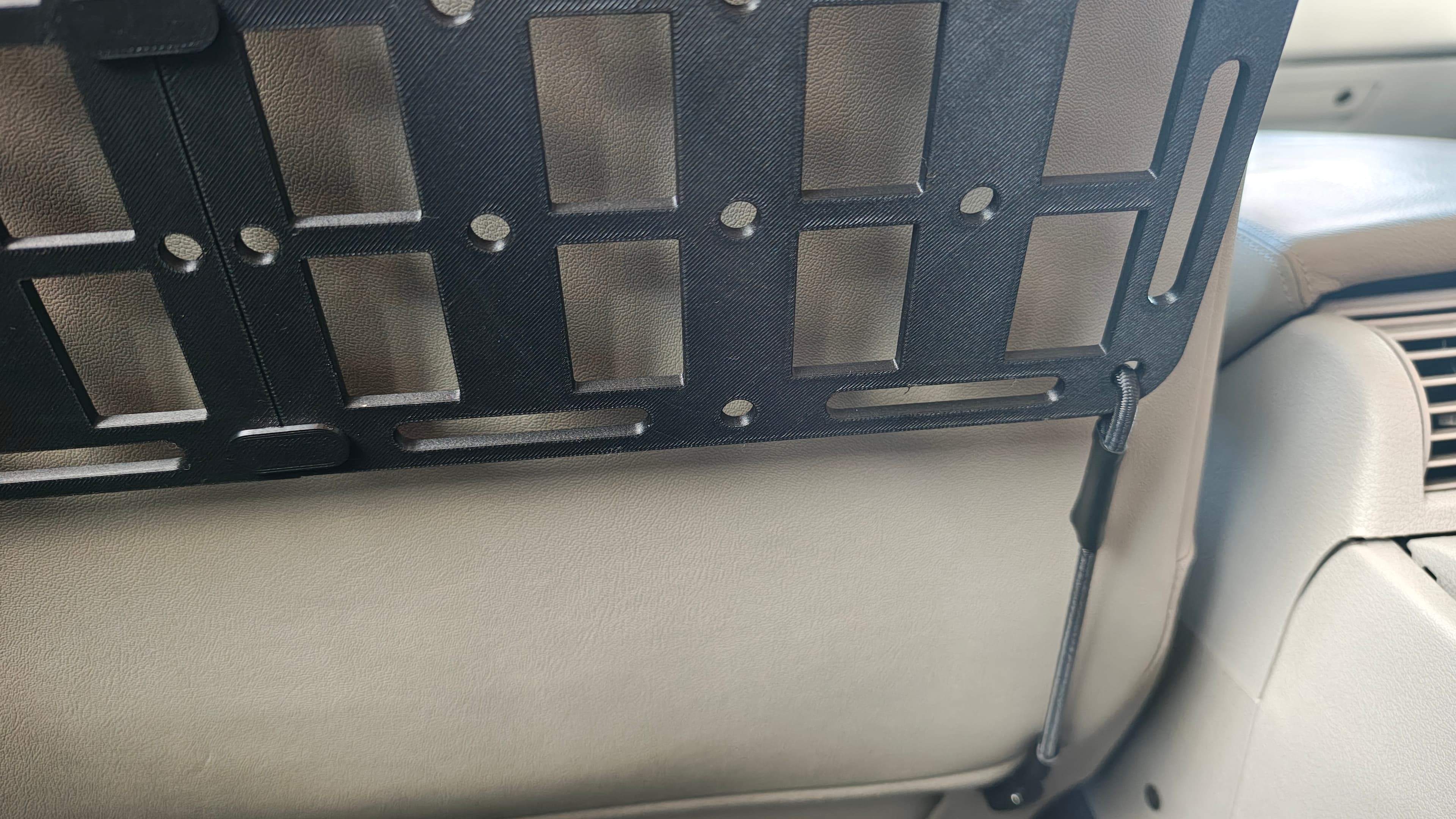

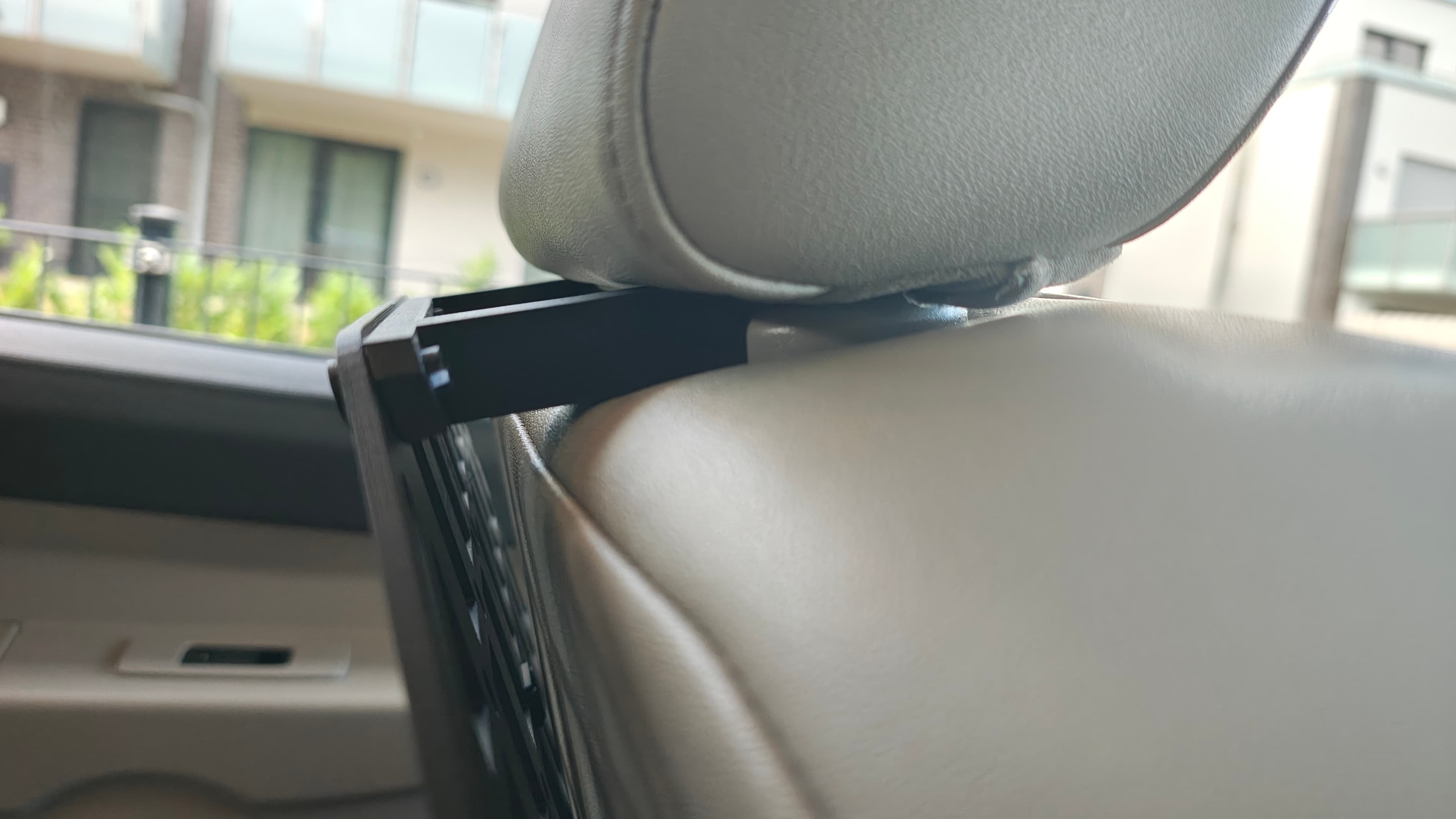

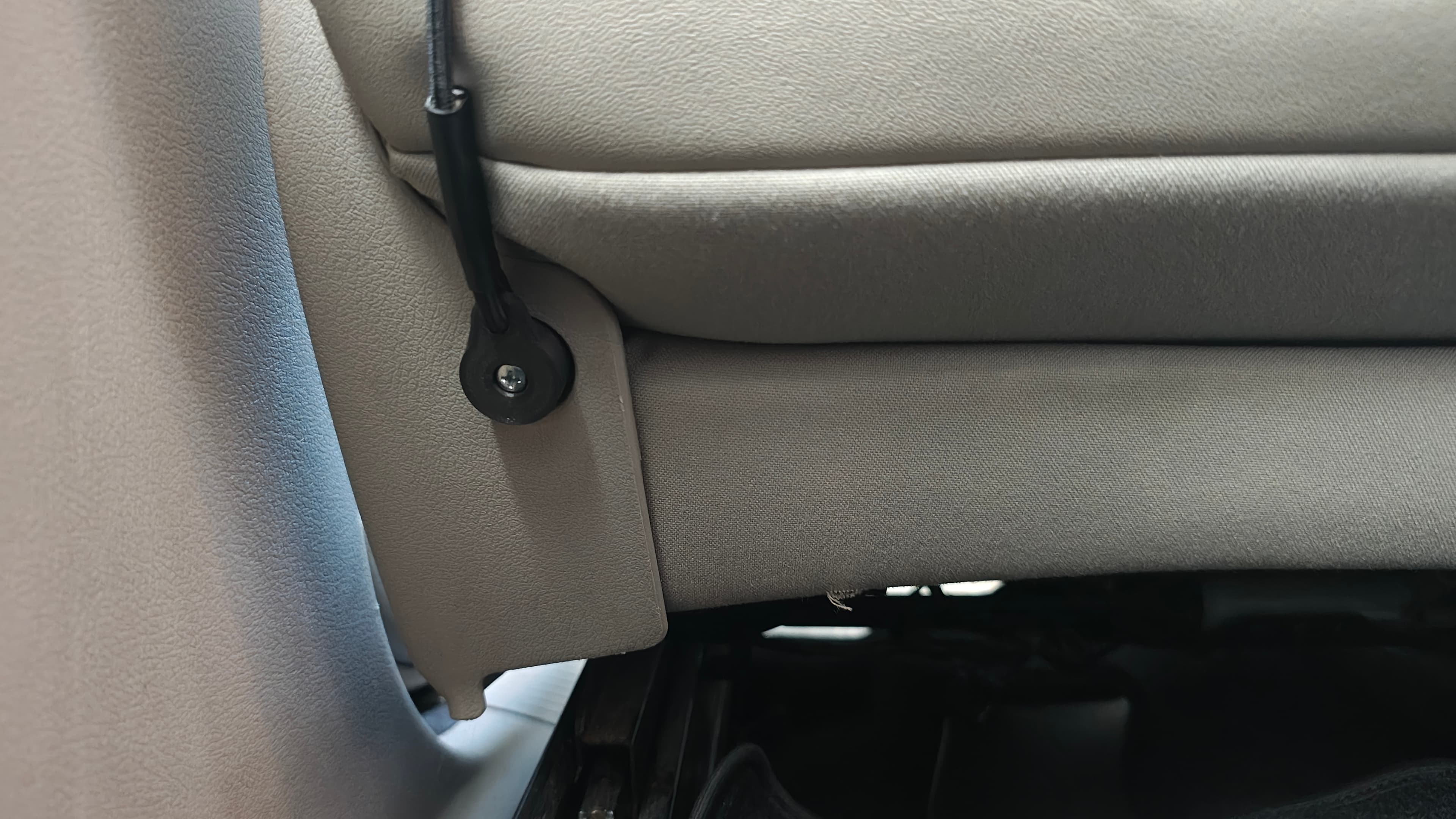

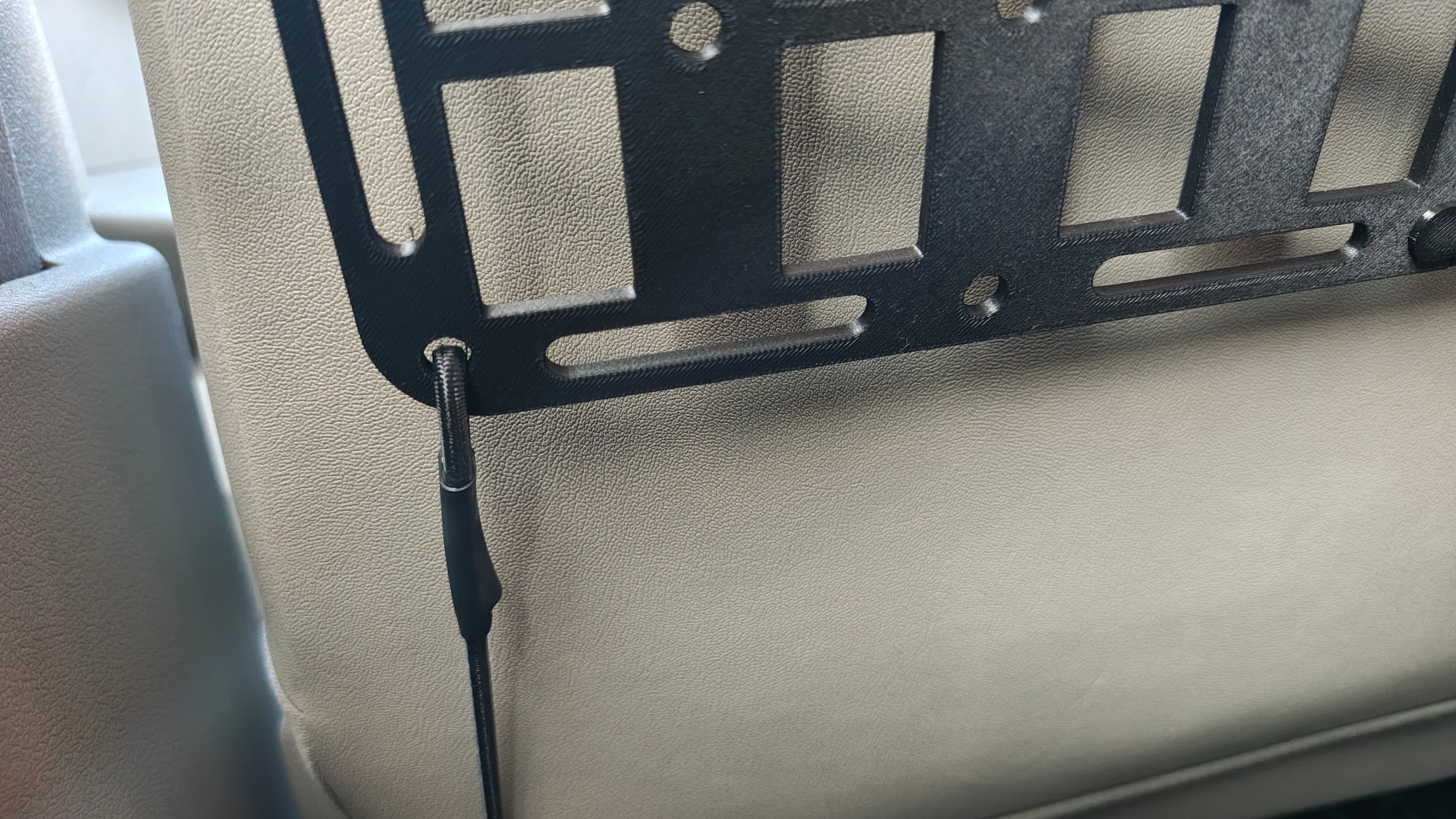

Jeep Commander mounting set for attaching a compatible MOLLE organizer panel behind a front seat. The set includes the headrest bracket, lower connector, and retaining pin; M4 x 35 mm screws and 5 mm elastic cord complete the installation.
