Small-Can Cupholder Inserts

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Small-Can Cupholder Inserts
OEM: —
APPLICATION: Compass MK49

Loading 3D viewer...

CARGO ID · CJ-3D / 1006QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1006

[01]Redbull_Cupholder_Front.stlRedbull_Cupholder_Front.stl.STL
[02]Redbull_Cupholder_Rear.stlRedbull_Cupholder_Rear.stl.STL
[03]Bounding box152.000 × 81.000 × 81.000 mm
[04]Volume210,680.779 mm³

Field notes

BY JUSTIN WALKUP (JUSTINTWALKUP)

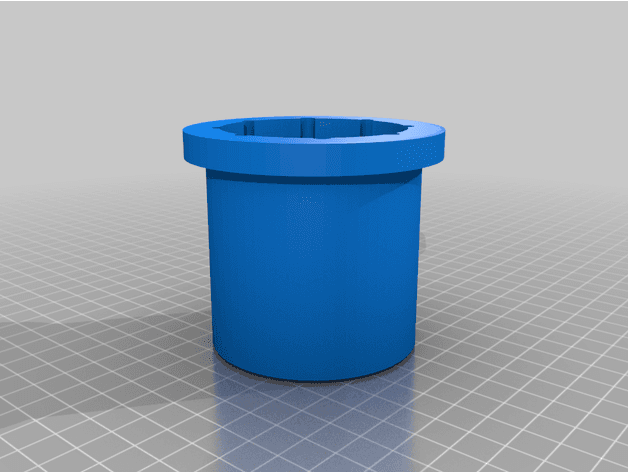

Front and rear cupholder inserts designed and documented for a 2015 Jeep Compass. The two wells have different depths, so both fitted insert geometries are included; the creator expects first-generation 2007-2017 Compass compatibility.
