Sun-Visor Support Bracket

REPLACES OEM1AL25BD1AA

ABS · Nylon · PETG1 FILECC-BY-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Sun-Visor Support Bracket
OEM: 1AL25BD1AA
APPLICATION: Grand Cherokee WK / WH

Loading 3D viewer...

CARGO ID · CJ-3D / 0957QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0957

[01]jeep-wh-2005-2010-sun-visor-sonnenblende-halterung.stljeep-wh-2005-2010-sun-visor-sonnenblende-halterung.stl.STL
[02]Bounding box47.028 × 38.000 × 31.804 mm
[03]Volume12,337.417 mm³

Field notes

BY BMRSSKY

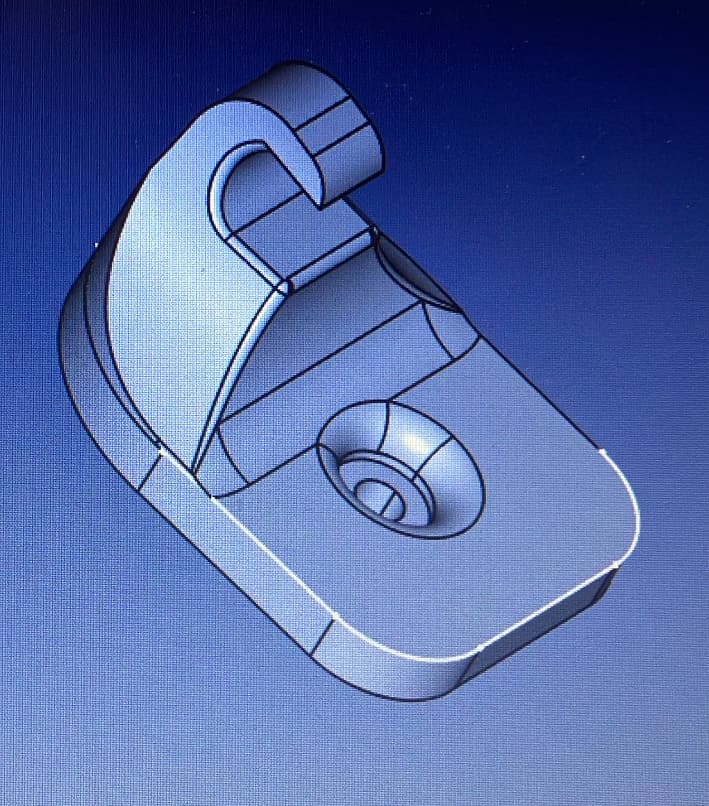

Replacement sun-visor support bracket for 2005–2010 export Grand Cherokee WH and corresponding WK interiors. The source provides the finished physical print and matching CAD geometry.

View original source ↗
