Transmission and Transfer-Case Shift Knobs

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Transmission and Transfer-Case Shift Knobs
OEM: —
APPLICATION: CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 0998QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

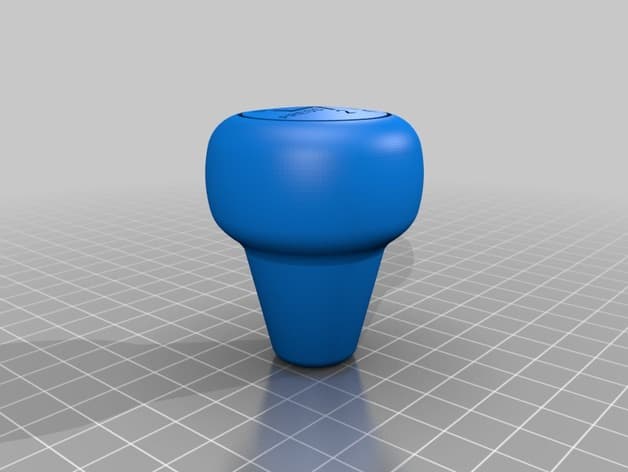

PLATE 01 / 04No caption recorded

Build sheet

MAN-0998

[01]schaltknaufJeepTrans.stlschaltknaufJeepTrans.stl.STL
[02]shiftknobJeep4WD.stlshiftknobJeep4WD.stl.STL
[03]Bounding box110.942 × 45.998 × 45.996 mm
[04]Volume102,569.489 mm³

Field notes

BY ROBERT TINAUER (ROBERTT3D)

Original-style transmission and four-wheel-drive transfer-case shift knobs for Jeep CJ-7 controls. The printed bores are intended to be tapped for the vehicle's shifter threads after printing.

View original source ↗
