Windshield Hood-Block Extensions

ABS · NylonMULTI-PART2 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Windshield Hood-Block Extensions
OEM: —
APPLICATION: CJ-2A, CJ-3A, CJ-3B

Loading 3D viewer...

CARGO ID · CJ-3D / 0989QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0989

[01]Willys_Hard_Corner_Hood_Block.stlWillys_Hard_Corner_Hood_Block.stl.STL
[02]Willys_Soft_Corner_Hood_Block.stlWillys_Soft_Corner_Hood_Block.stl.STL
[03]Bounding box102.000 × 68.000 × 43.000 mm
[04]Volume149,241.797 mm³

Field notes

BY MIKE SCHUDEL (SCHUDEL5)

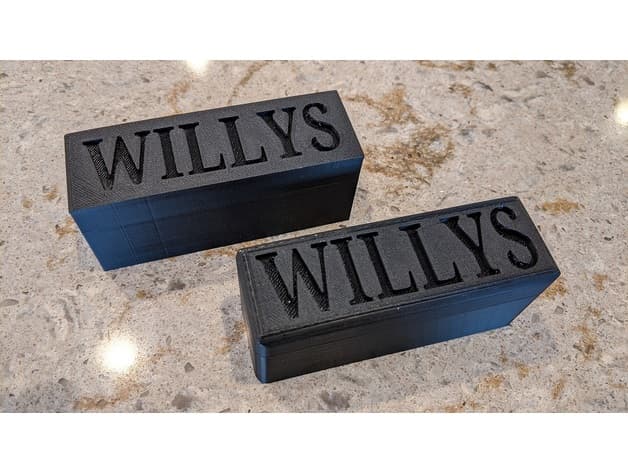

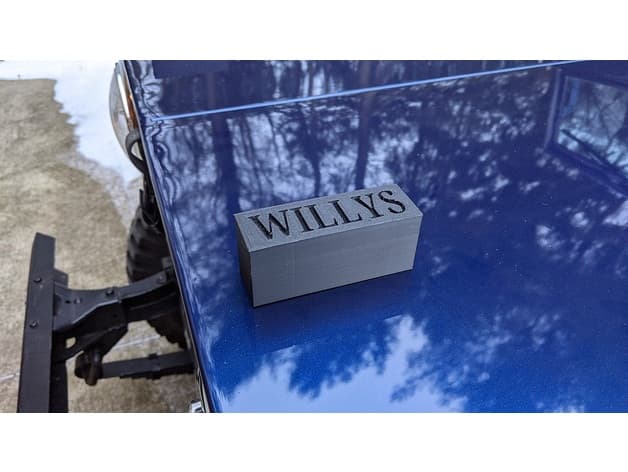

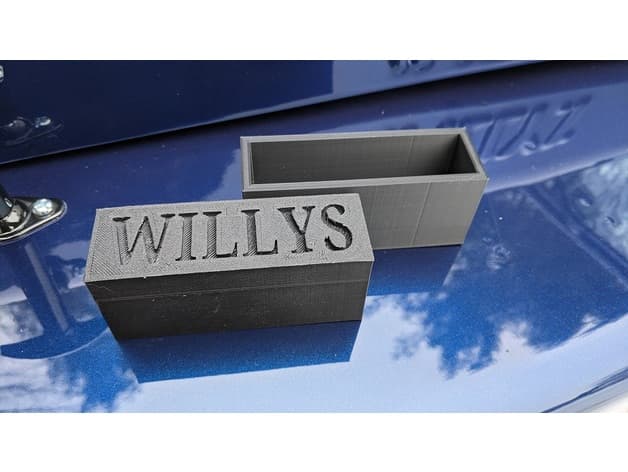

Pair of hollow extensions that fit over the existing windshield hood blocks on Willys CJ-2A, CJ-3A, and CJ-3B vehicles. Hard- and soft-corner variants raise the folded windshield and are documented physically on a CJ.

View original source ↗
