YJ Tilt-Column Conversion Cover

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: YJ Tilt-Column Conversion Cover
OEM: —
APPLICATION: CJ-7

Loading 3D viewer...

CARGO ID · CJ-3D / 1001QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1001

[01]ColumnCoverLeft_C1.stlColumnCoverLeft_C1.stl.STL
[02]ColumnCoverRight_C1.stlColumnCoverRight_C1.stl.STL
[03]Bounding box169.502 × 159.087 × 94.500 mm
[04]Volume325,717.218 mm³

Field notes

BY ERICH PREIMESBERGER (5DOT5SIX)

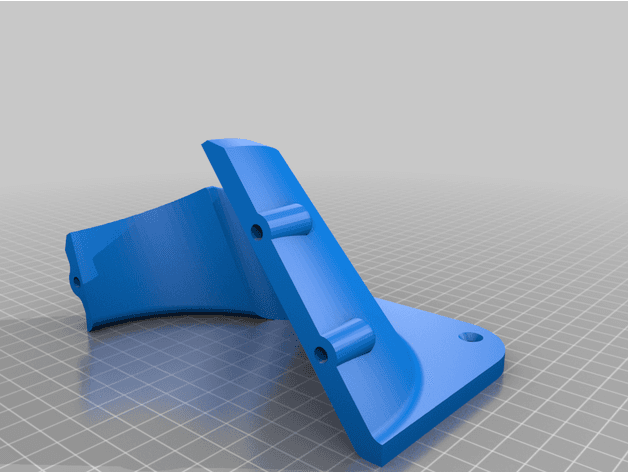

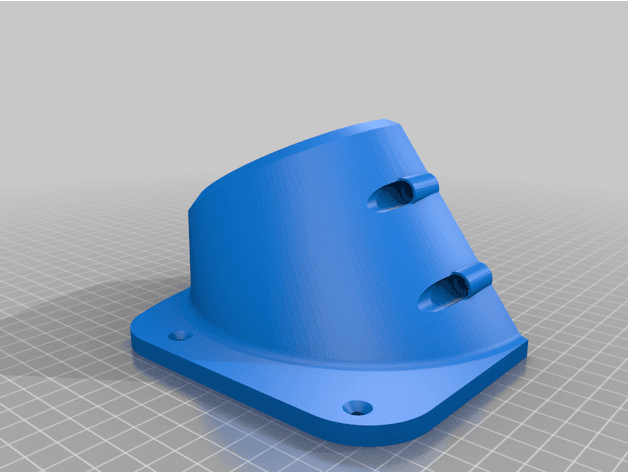

Two-piece steering-column cover for a CJ-7 converted to a Wrangler YJ tilt column. The right half includes a tachometer-wire clearance opening and threaded fastener points.

View original source ↗
