1984–1996 Cargo-Cover Rear Hooks

ABS · Nylon · PETGMULTI-PART3 FILESGPLInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1984–1996 Cargo-Cover Rear Hooks
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0843QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

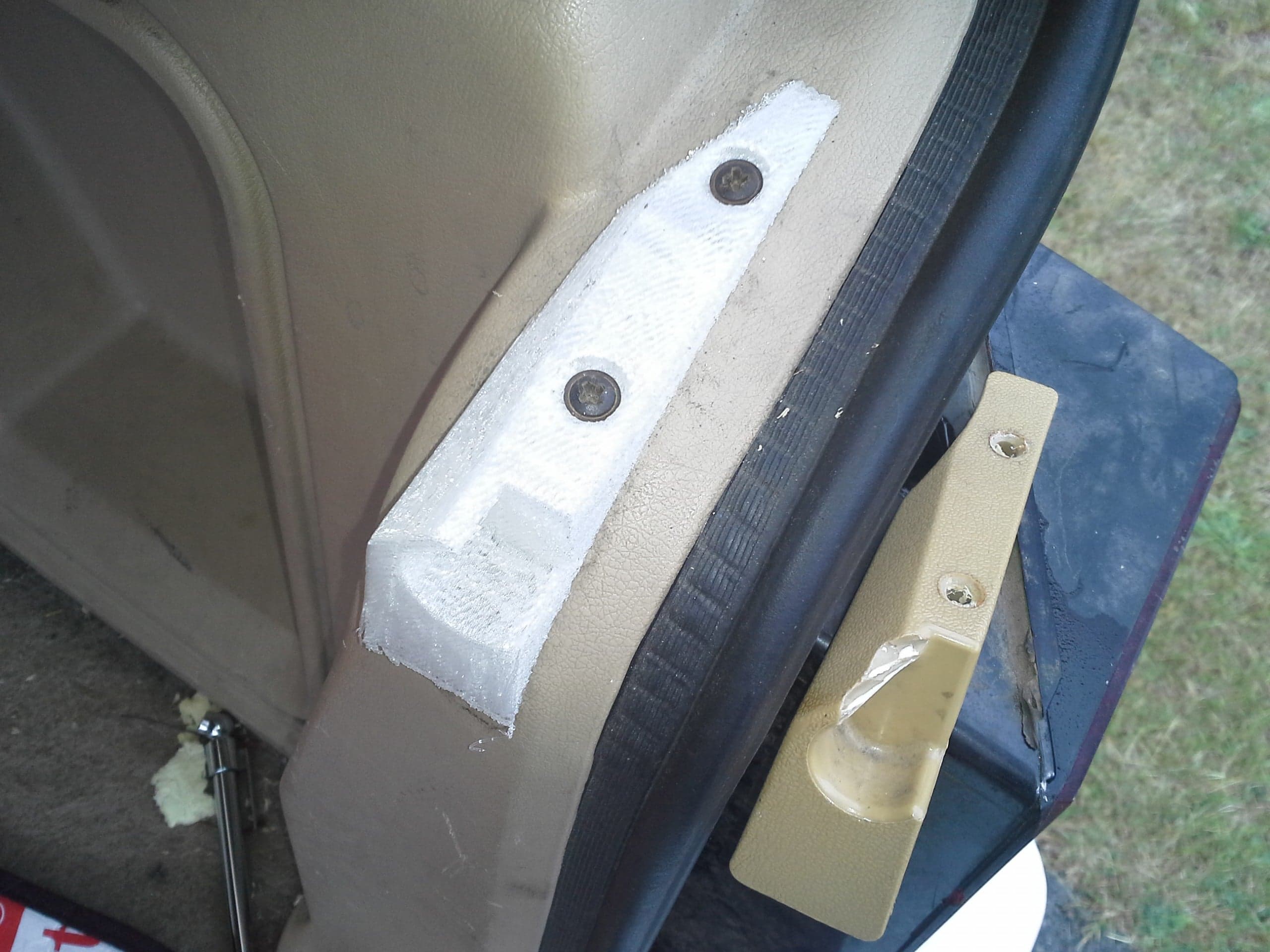

PLATE 01 / 01No caption recorded

Build sheet

MAN-0843

[01]trunkcover.stltrunkcover.stl.STL
[02]trunkcover2L.stltrunkcover2L.stl.STL
[03]trunkcover2R.stltrunkcover2R.stl.STL
[04]Bounding box113.801 × 95.025 × 58.477 mm
[05]Volume110,137.389 mm³

Field notes

BY SILVER MAG (5ILVER)

Replacement rear hooks for the retractable privacy cover in a 1984–1996 Cherokee XJ cargo area. Original-position and 12 mm inboard left/right versions are included.
