1984–1996 Center-Console Latch

ABS · Nylon · PETG1 FILECC-BY-NCInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

Loading 3D viewer...

CARGO ID · CJ-3D / 0877QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0877

[01]84-96-jeep-xj-center-console-latch-v10.stl84-96-jeep-xj-center-console-latch-v10.stl.STL
[02]Bounding box56.453 × 29.883 × 29.210 mm
[03]Volume12,582.695 mm³

Field notes

BY JOSH NEZ

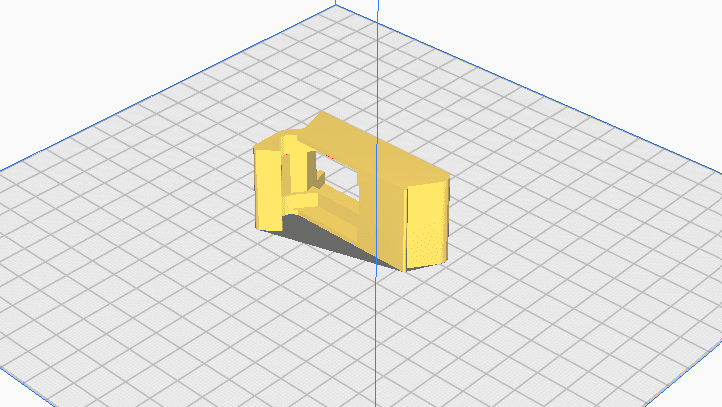

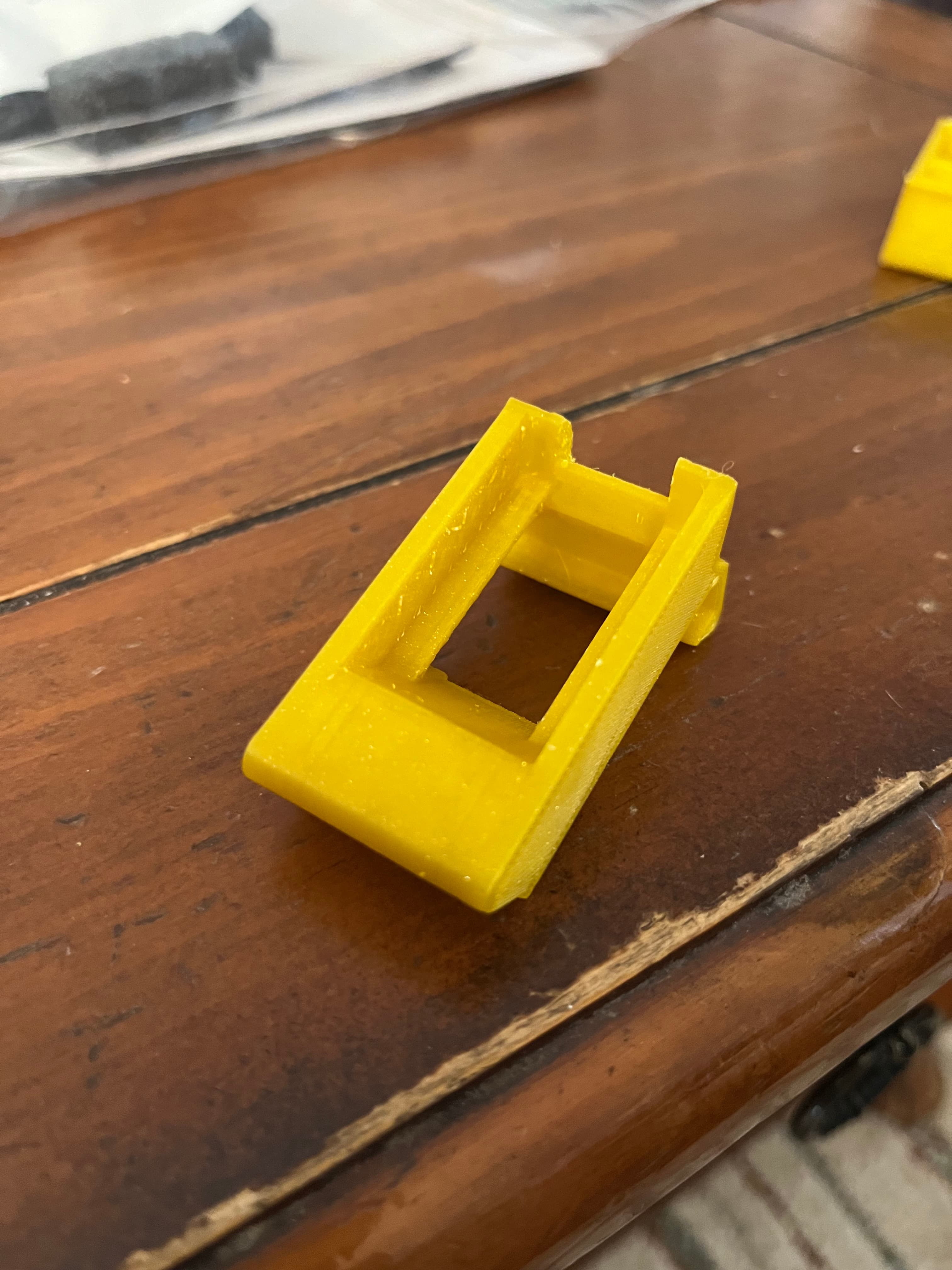

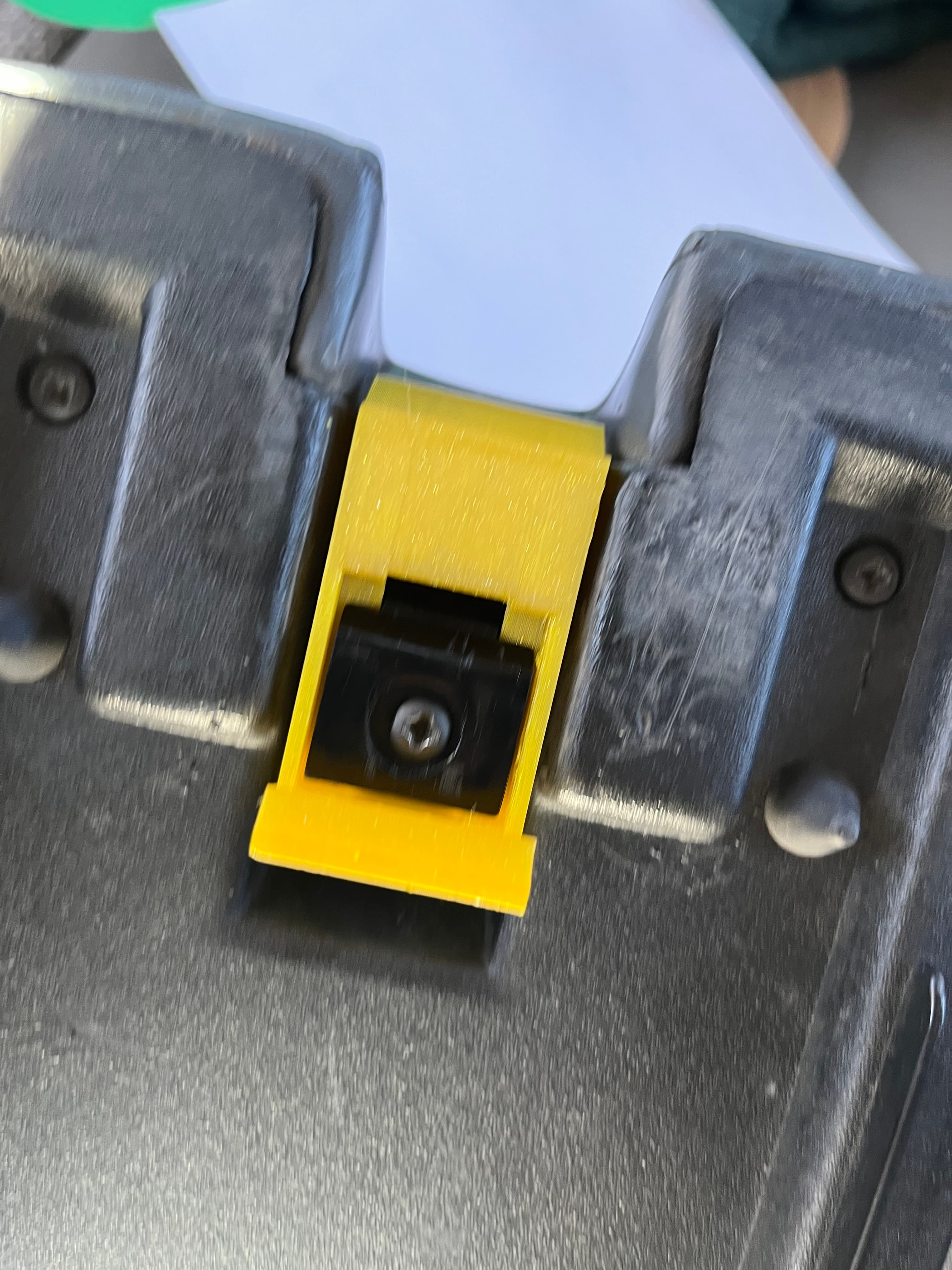

Replacement latch for the center-console lid on a 1984–1996 Cherokee XJ, with an orientation guide for improved layer strength.
