1984–1996 Door-Mirror Mounts

ABS · Nylon · PETGMULTI-PART4 FILESCC-BY-NCDoors

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1984–1996 Door-Mirror Mounts
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0863QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

8 PLATES

PLATE 01 / 08No caption recorded

Build sheet

MAN-0863

[01]easy_mirror_mount_driver_side.stleasy_mirror_mount_driver_side.stl.STL
[02]easy_mirror_mount_passenger_side.stleasy_mirror_mount_passenger_side.stl.STL
[03]full_mirror_mount_driver_side1.stlfull_mirror_mount_driver_side1.stl.STL
[04]full_mirror_mount_passenger_side1.stlfull_mirror_mount_passenger_side1.stl.STL
[05]Bounding box59.400 × 51.200 × 45.000 mm
[06]Volume43,481.172 mm³

Field notes

BY KORDELL STEVENS (BLOCKS_RETRO_REPAIR)

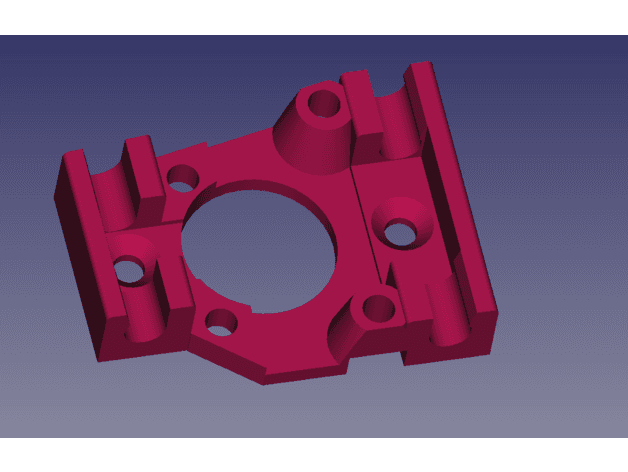

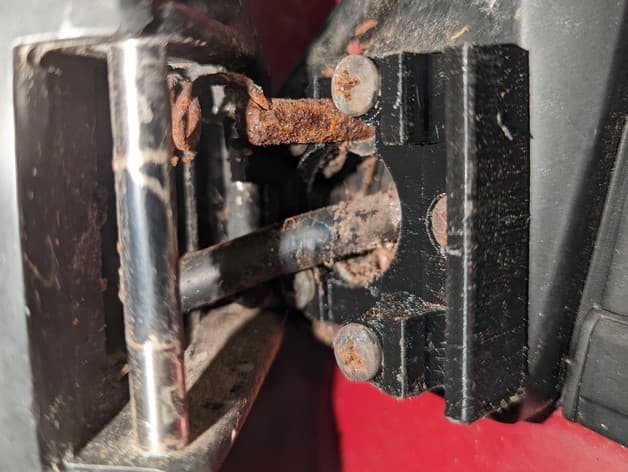

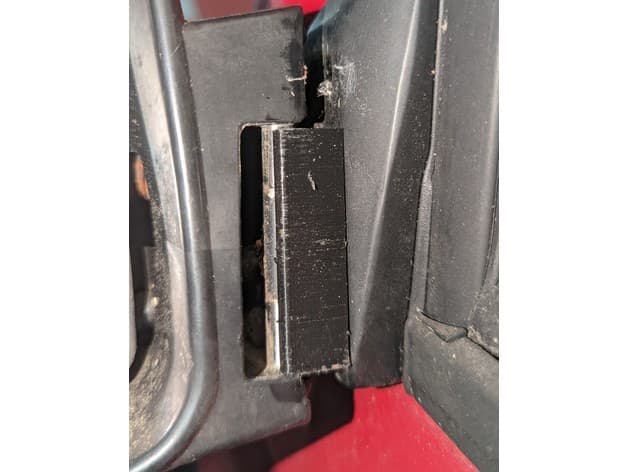

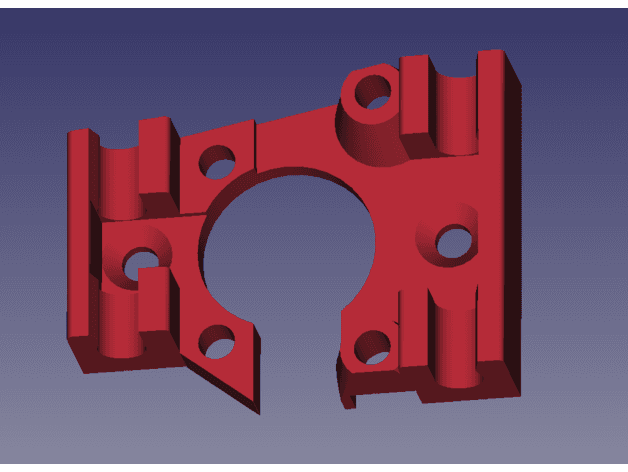

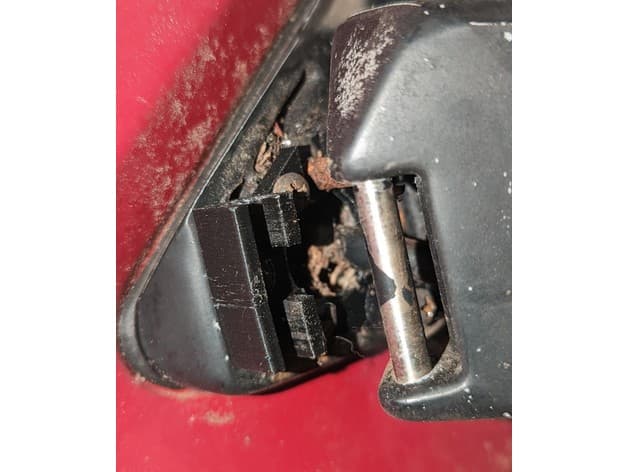

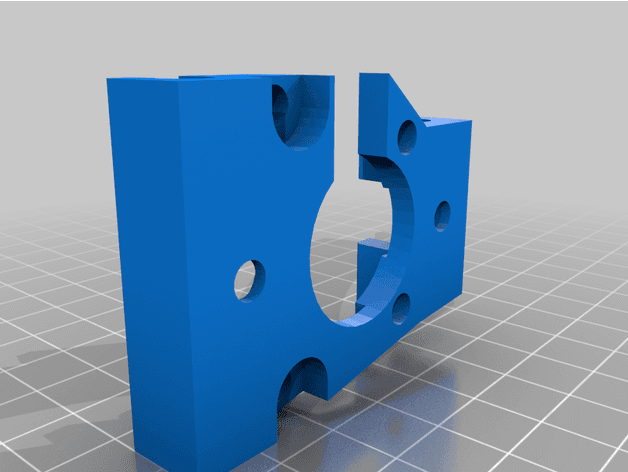

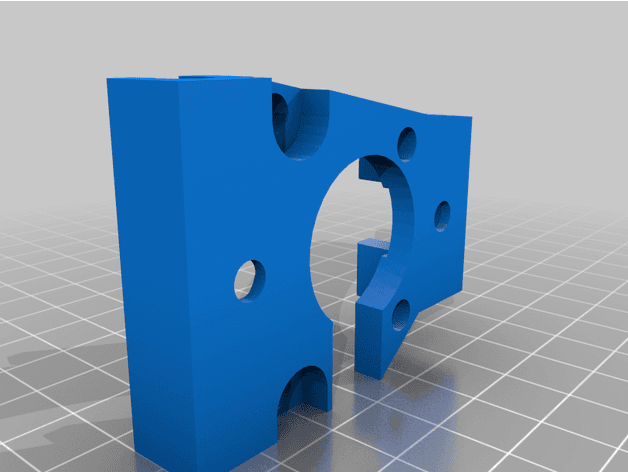

Driver- and passenger-side replacement mirror mounts for 1984–1996 Cherokee XJ doors. Easy slotted and full replacement versions support manual or electric mirrors.
