1984–1996 Front Floor Plug

ABS · Nylon1 FILEGPLBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1984–1996 Front Floor Plug
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0874QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0874

[01]jeep-xj-front-floor-plug.stljeep-xj-front-floor-plug.stl.STL
[02]Bounding box74.997 × 74.995 × 5.981 mm
[03]Volume7,231.527 mm³

Field notes

BY HQTITAN

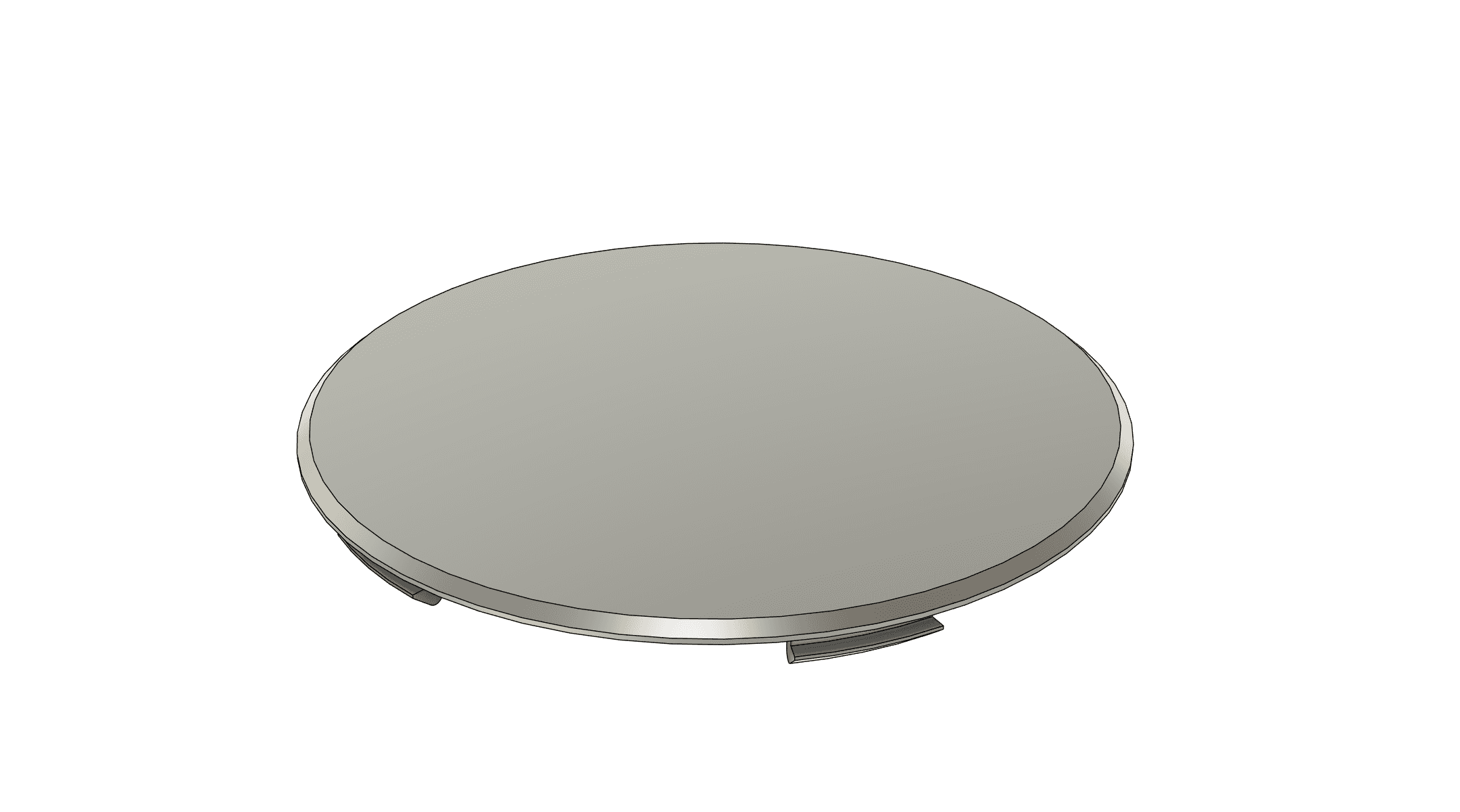

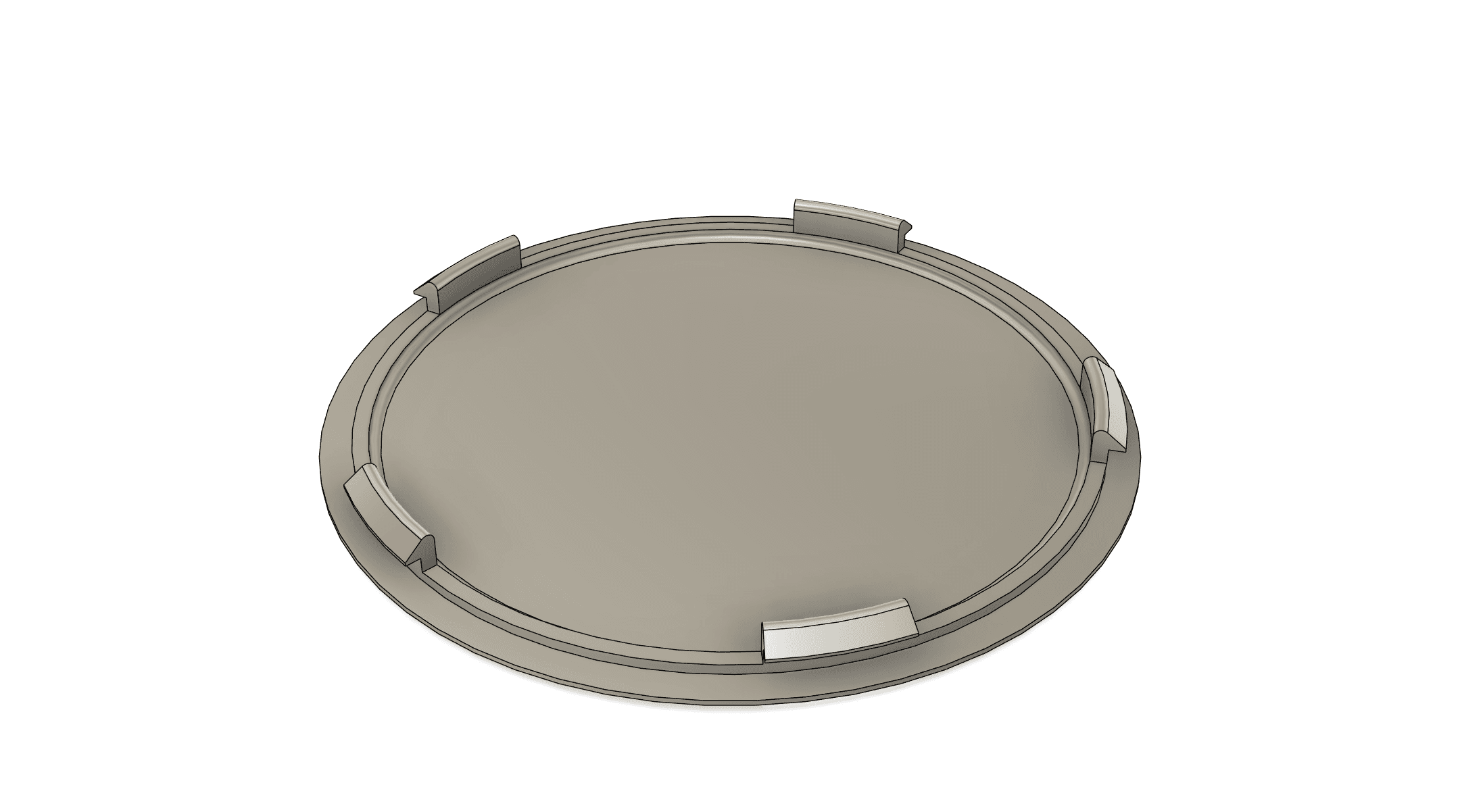

Three-inch plug for the large driver- and passenger-side front floor openings in a 1984–1996 Cherokee XJ. Fitment on 1997–2001 vehicles is not claimed.
