1984–1996 Headlight-Switch Repair Washer

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1984–1996 Headlight-Switch Repair Washer
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0856QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

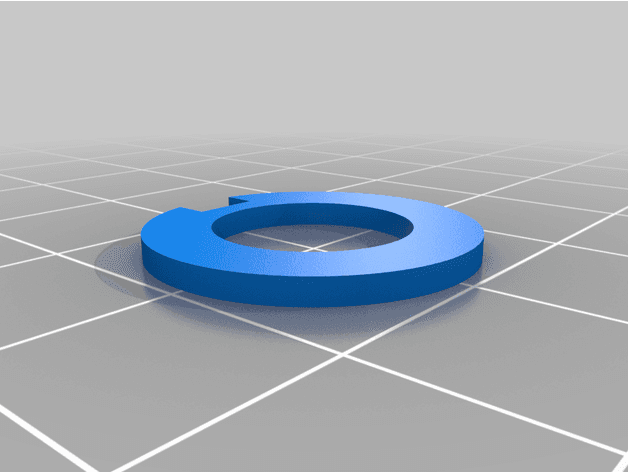

PLATE 01 / 01No caption recorded

Build sheet

MAN-0856

[01]headlight_switch_washer_v1.stlheadlight_switch_washer_v1.stl.STL
[02]Bounding box18.496 × 18.281 × 1.400 mm
[03]Volume228.578 mm³

Field notes

BY CODY BECKER (ZERPLEX)

Load-spreading washer that repairs broken dashboard material around the headlight switch on a 1984–1996 Cherokee XJ. Its diameter can be scaled for a larger damaged area.
