1996–1998 Center-Console MOLLE Panel

ABS · Nylon · PETGMULTI-PART2 FILESGPLInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1996–1998 Center-Console MOLLE Panel
OEM: —
APPLICATION: Grand Cherokee ZJ / ZG

Loading 3D viewer...

CARGO ID · CJ-3D / 0928QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0928

[01]molle-panel-zj.stlmolle-panel-zj.stl.STL
[02]Molle Panel ZJ No Spacer.stlMolle Panel ZJ No Spacer.stl.STL
[03]Bounding box210.000 × 130.000 × 18.000 mm
[04]Volume119,145.323 mm³

Field notes

BY KCKROGOTH

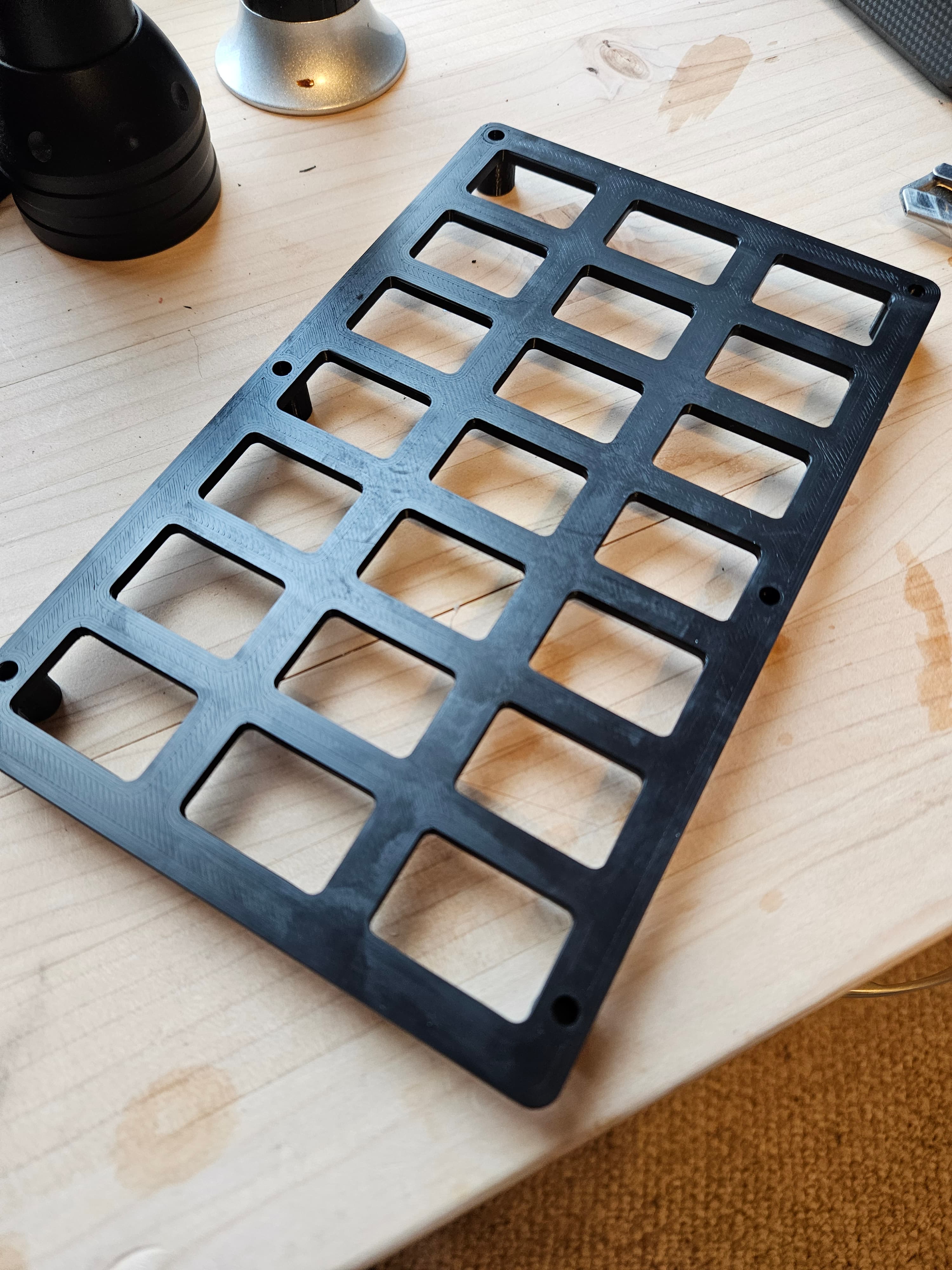

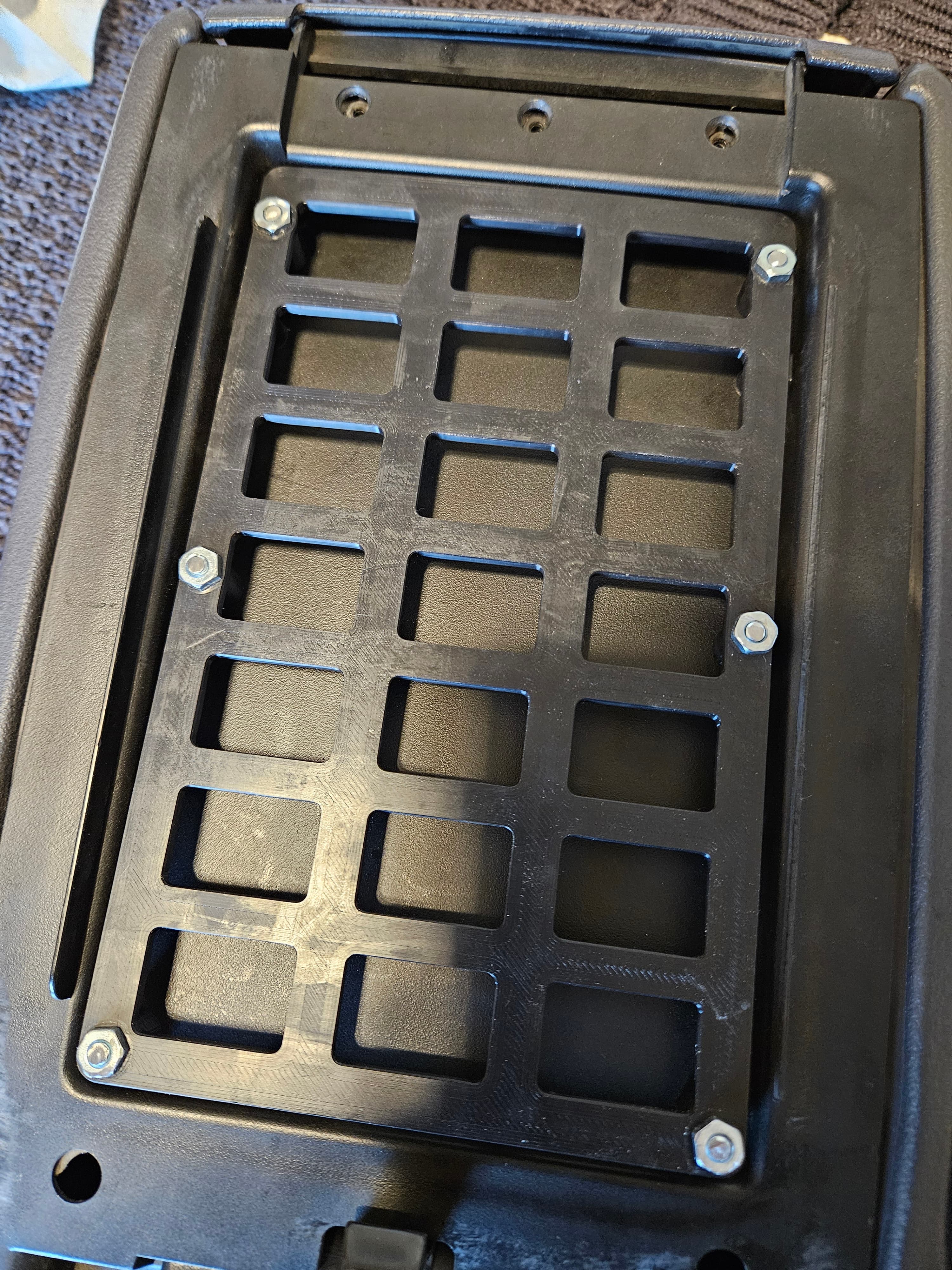

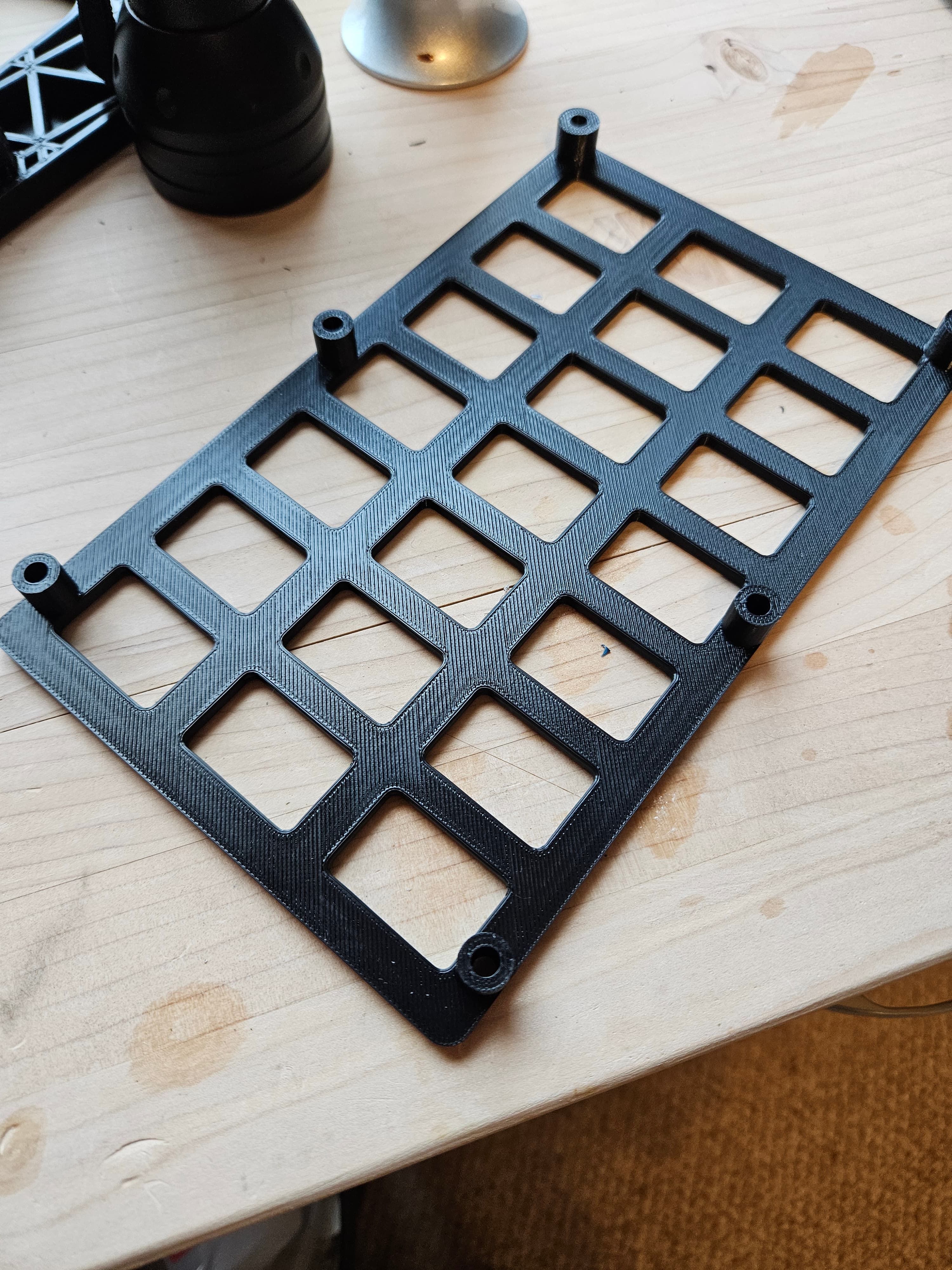

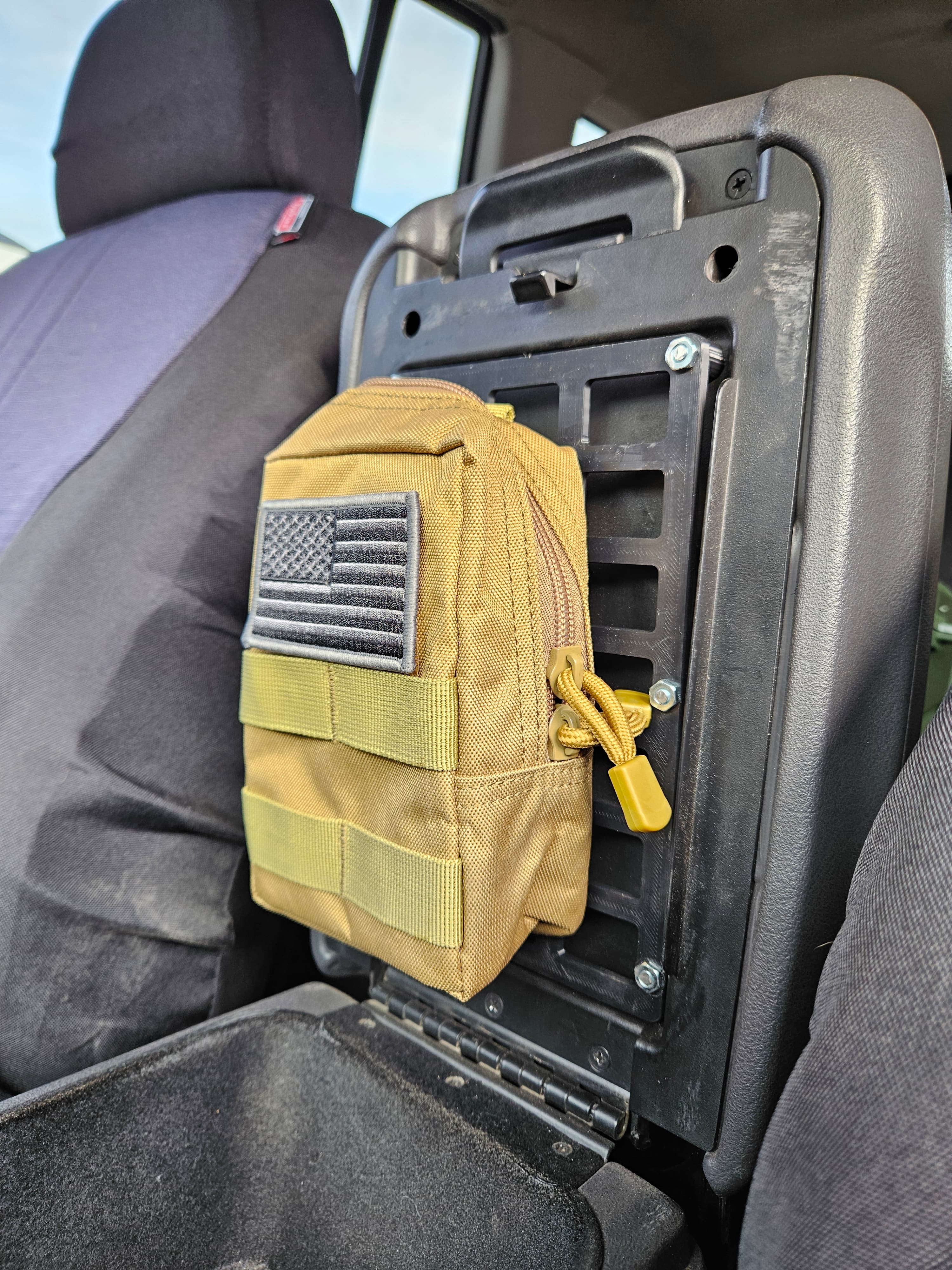

Rigid MOLLE/PALS panel for the 1996–1998 Grand Cherokee ZJ center console. Standard and no-spacer versions are included, with the installation sequence and finished use documented.
