1997–2001 Automatic Shifter Repair Insert

ABS · Nylon · PETG1 FILECC-BY-NC-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1997–2001 Automatic Shifter Repair Insert
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0853QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

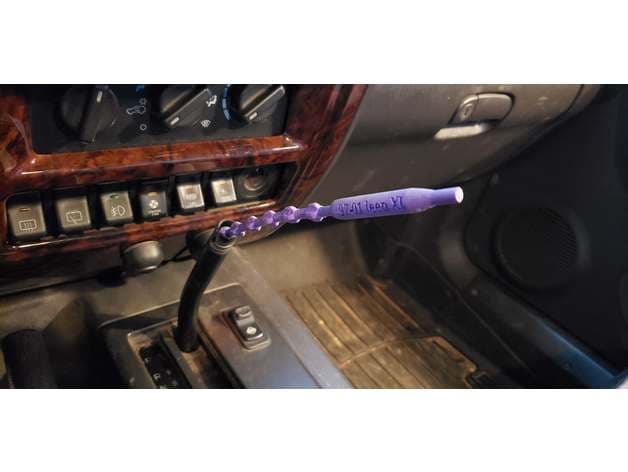

PLATE 01 / 04No caption recorded

Build sheet

MAN-0853

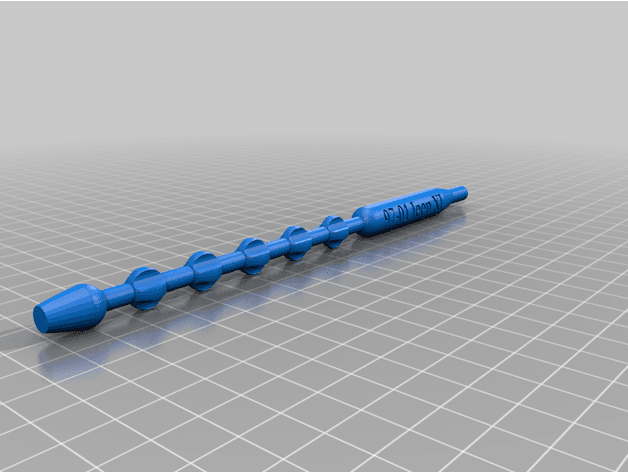

[01]Jeep_Cherokee_Shifter_Insert_-_Final_Update_2.stlJeep_Cherokee_Shifter_Insert_-_Final_Update_2.stl.STL
[02]Bounding box181.155 × 10.321 × 10.317 mm
[03]Volume8,251.997 mm³

Field notes

BY ROB CARSON (RCARS2)

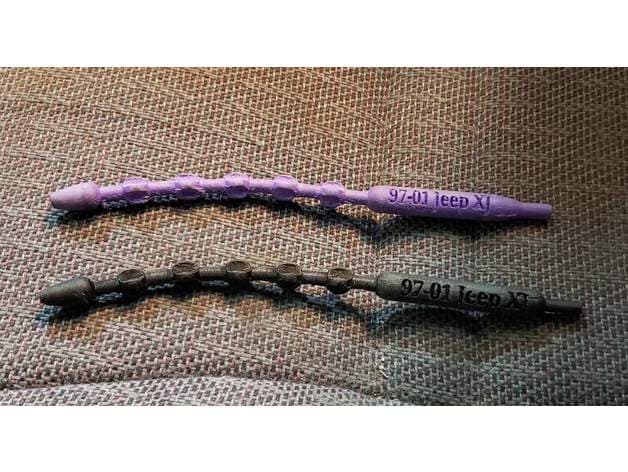

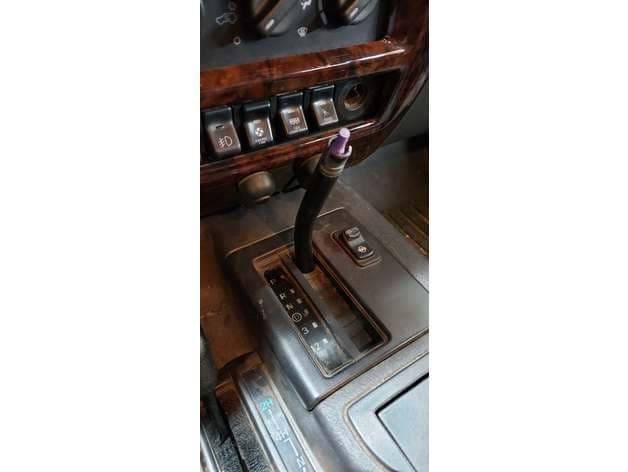

Reinforced replacement for the failure-prone automatic-transmission selector insert in a 1997–2001 Cherokee XJ. This entry uses the creator's final second revision.

View original source ↗
