1997–2001 Cupholder Collar and Insert
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior
- NOMENCLATURE
- 1997–2001 Cupholder Collar and Insert
- OEM
- —
- APPLICATION
- Cherokee / Liberty XJ
Loading 3D viewer...
CARGO ID · CJ-3D / 0870QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

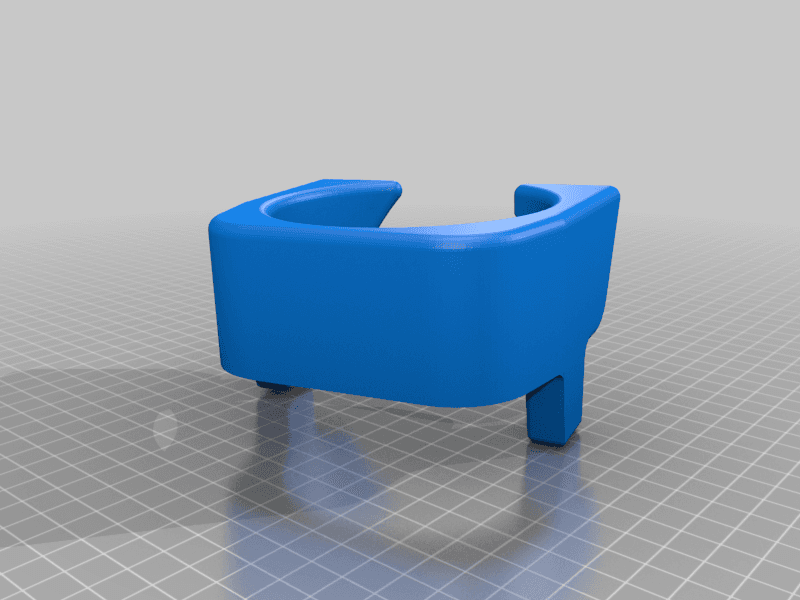

MAN-0870- [01]XJ_Cup_Collar_v16.stlXJ_Cup_Collar_v16.stl.STL

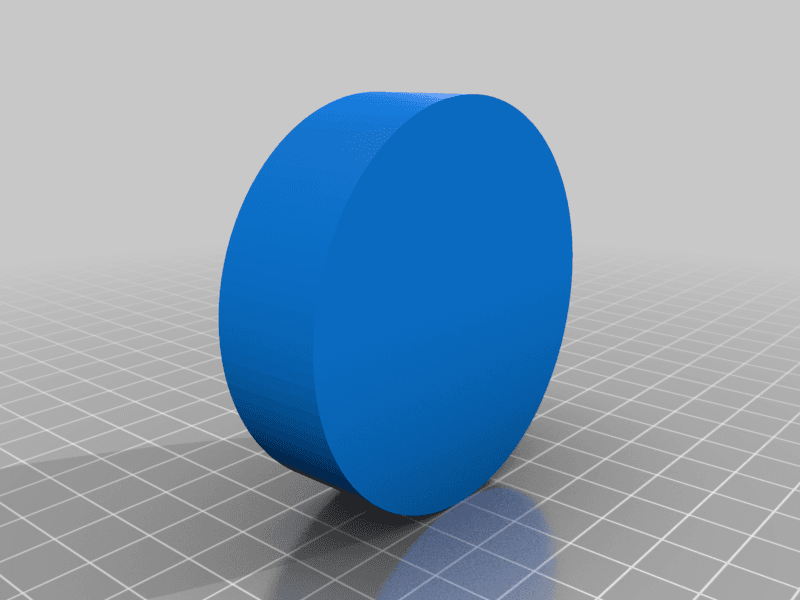

- [02]XJ_Cupholder_insert_v3.stlXJ_Cupholder_insert_v3.stl.STL
- [03]Bounding box126.677 × 119.309 × 91.441 mm
- [04]Volume235,185.073 mm³
Field notes

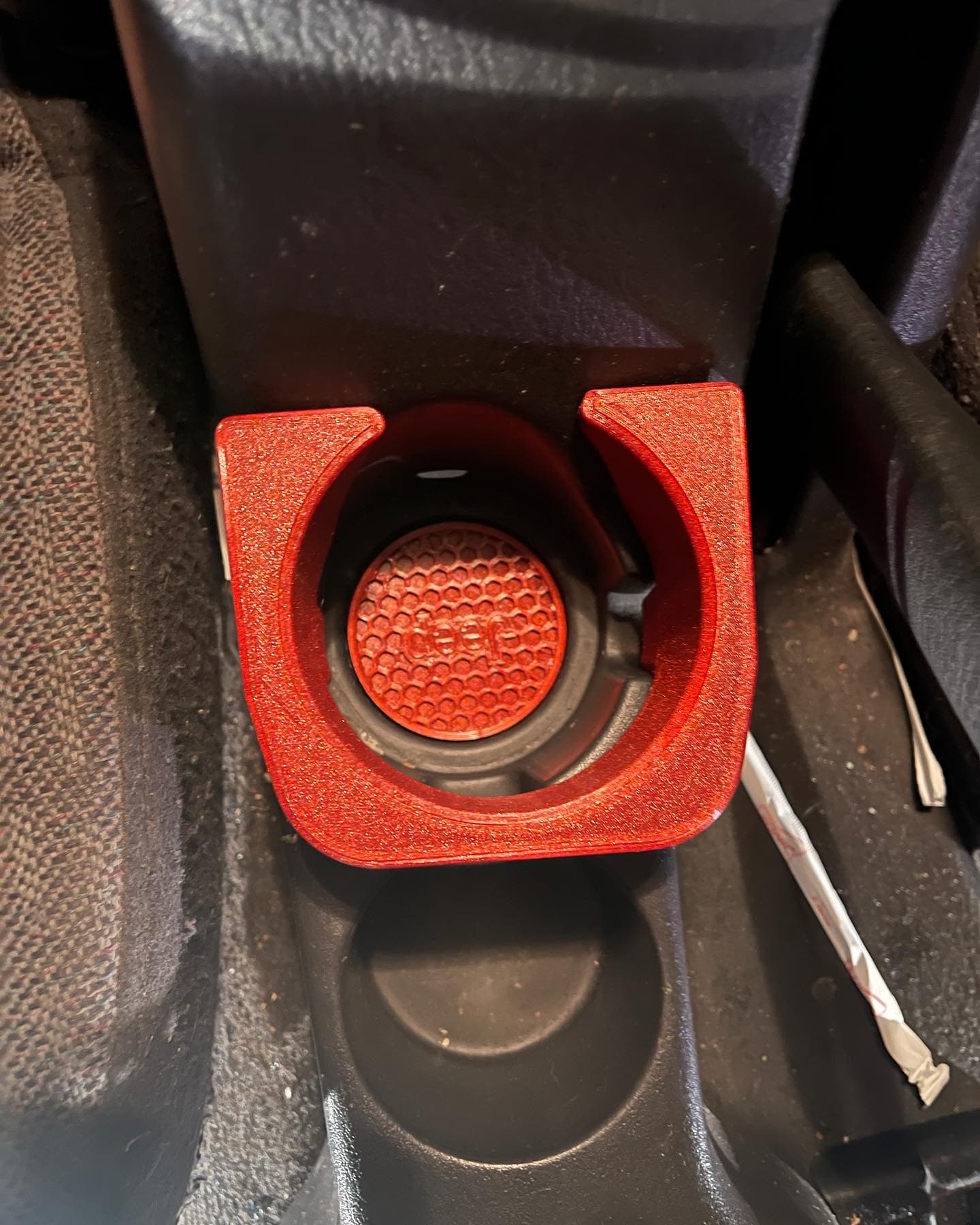

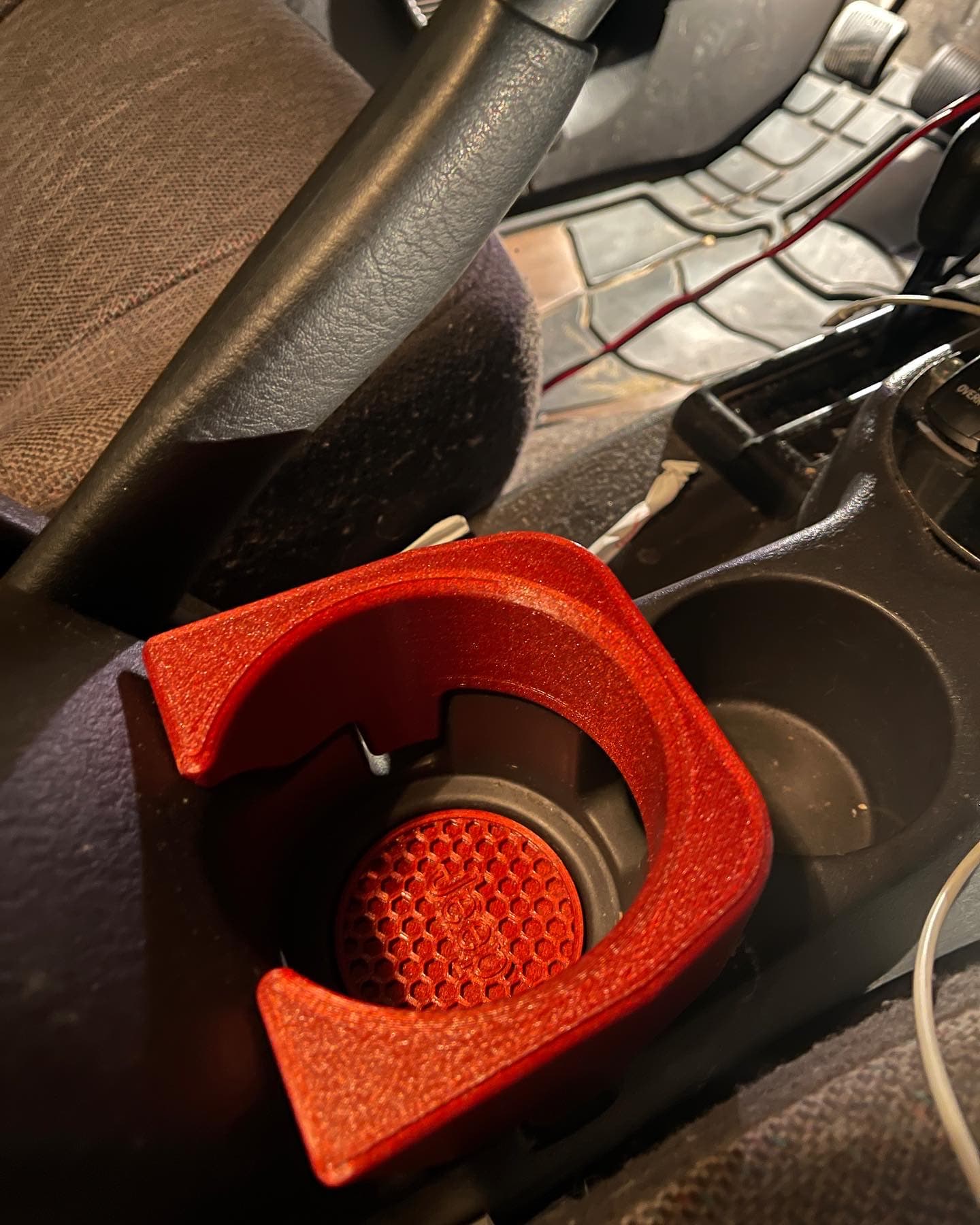

BY BRYANT SAPP (MOLECULARHORNET)Removable collar and flat-bottom insert that stabilize smaller cups in the rear cupholder of a 1997–2001 Cherokee XJ center console.
