1997–2001 Grille Insert

ABS · Nylon1 FILEGPLBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 1997–2001 Grille Insert
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0887QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

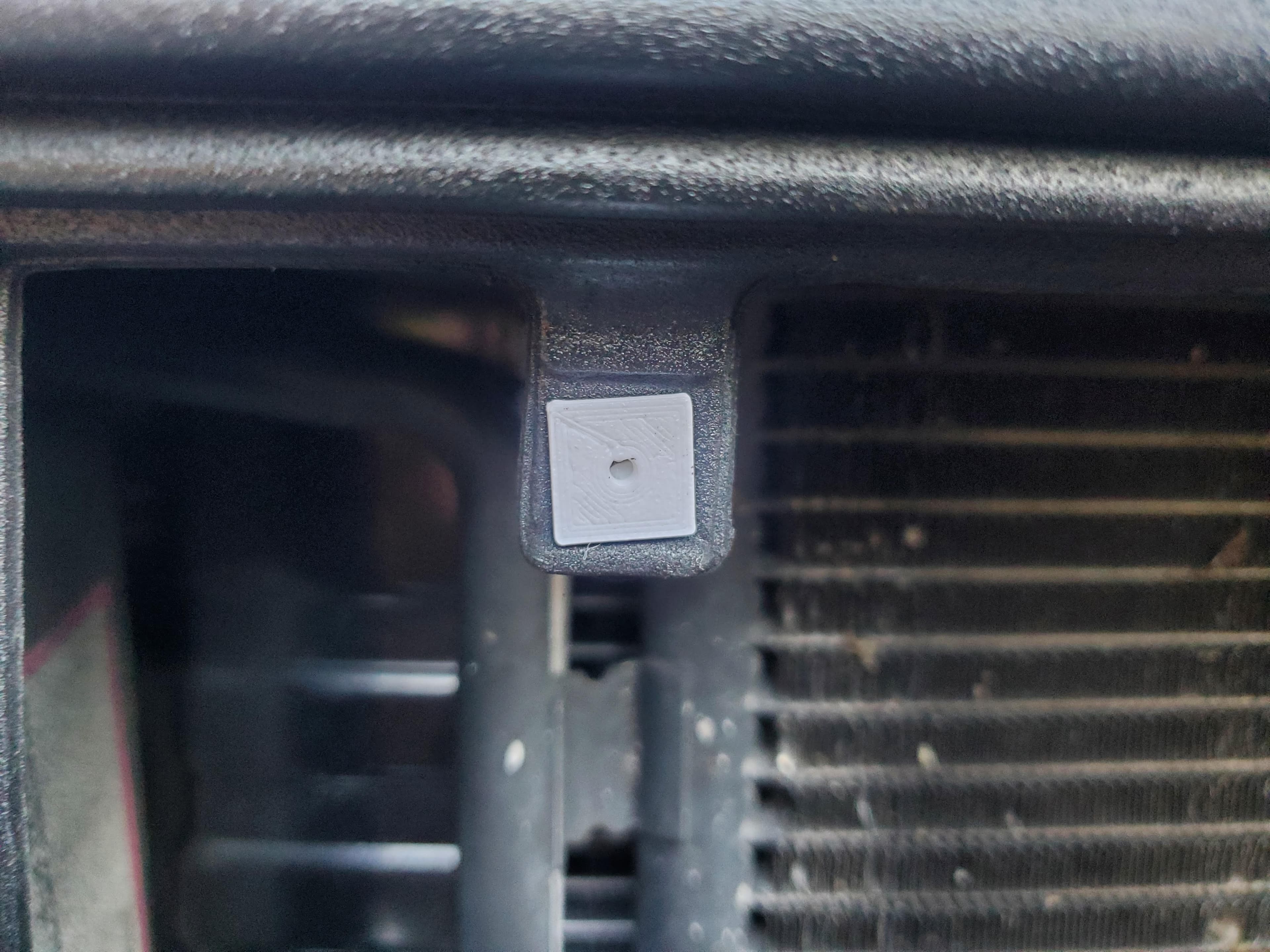

PLATE 01 / 02No caption recorded

Build sheet

MAN-0887

[01]jeep-xj-cherokee-grill-insert-97-01-bodygroove.stljeep-xj-cherokee-grill-insert-97-01-bodygroove.stl.STL
[02]Bounding box12.100 × 12.100 × 8.400 mm
[03]Volume386.093 mm³

Field notes

BY DAVID WORDELMAN

Replacement slotted insert modeled from a surviving 1997–2001 Cherokee XJ grille insert. The creator recommends minor scaling if required for the individual grille.

View original source ↗
