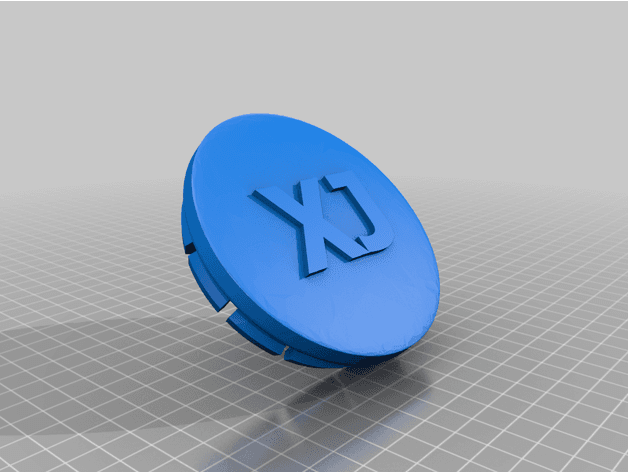

2001 ICON-Wheel Center Cap

ABS · Nylon · PETG1 FILECC-BYExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2001 ICON-Wheel Center Cap
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0851QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

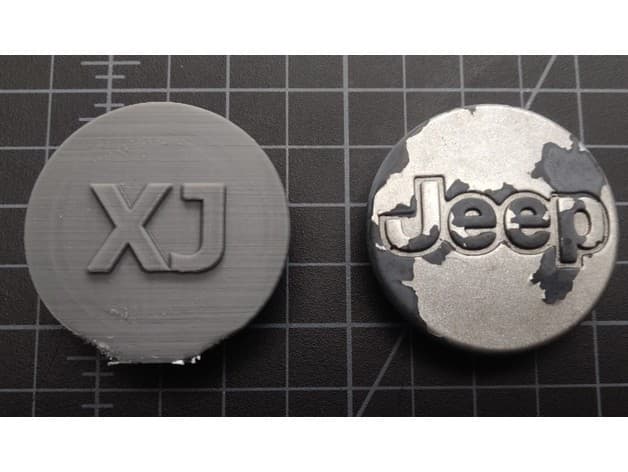

PLATE 01 / 02No caption recorded

Build sheet

MAN-0851

[01]XJ_Wheel_Center_Cap_v2.stlXJ_Wheel_Center_Cap_v2.stl.STL
[02]Bounding box99.993 × 81.652 × 81.638 mm
[03]Volume63,581.985 mm³

Field notes

BY ADAM BOERUP (WARGLOCK)

Plain center cap sized for the 16-inch ICON wheels on a 2001 Cherokee XJ Classic. Confirm the wheel opening before printing for a different stock wheel.

View original source ↗
