2001 Rear Console Cup Holder

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2001 Rear Console Cup Holder
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0832QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

PLATE 01 / 01No caption recorded

Build sheet

MAN-0832

[01]Cup_Holder_2.stlCup_Holder_2.stl.STL
[02]Jeep_Base.stlJeep_Base.stl.STL
[03]Bounding box271.000 × 151.000 × 60.000 mm
[04]Volume160,722.126 mm³

Field notes

BY KEVIN STILES (KSTILES2177)

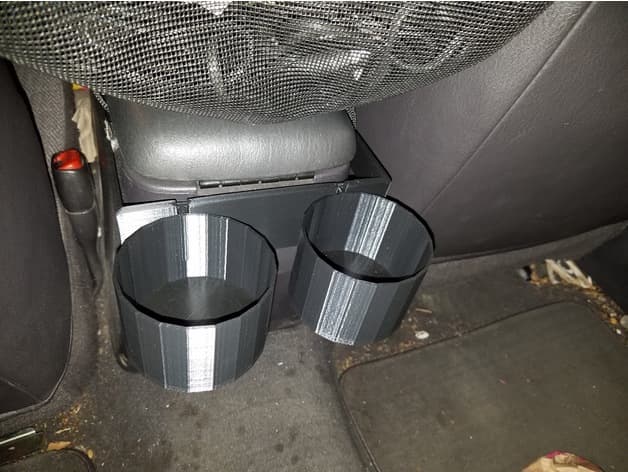

Removable twin cup holder for the rear of a 2001 Cherokee XJ center console. The armrest passes through the frame to retain it, and the cup inserts lift out for cleaning.
