2003 Center Vent Fin

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2003 Center Vent Fin
OEM: —
APPLICATION: Cherokee / Liberty KJ / Liberty

Loading 3D viewer...

CARGO ID · CJ-3D / 0892QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0892

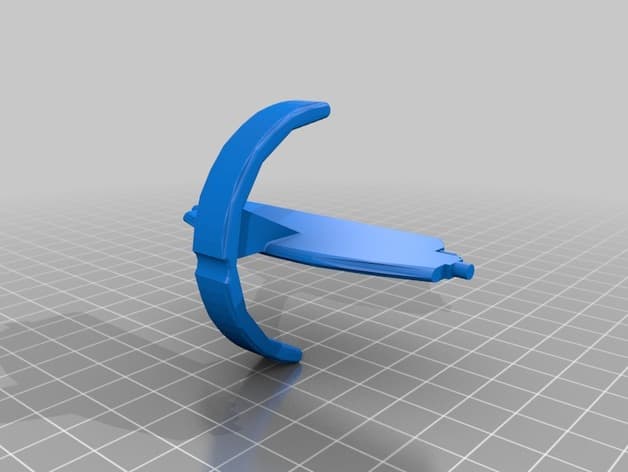

[01]jeepVentCenterFin.stljeepVentCenterFin.stl.STL
[02]Bounding box79.000 × 56.225 × 43.485 mm
[03]Volume8,263.943 mm³

Field notes

BY NICK EVANS (SLASHFOXX)

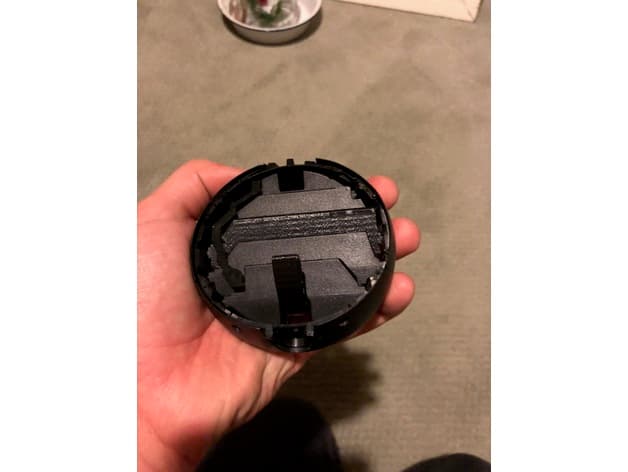

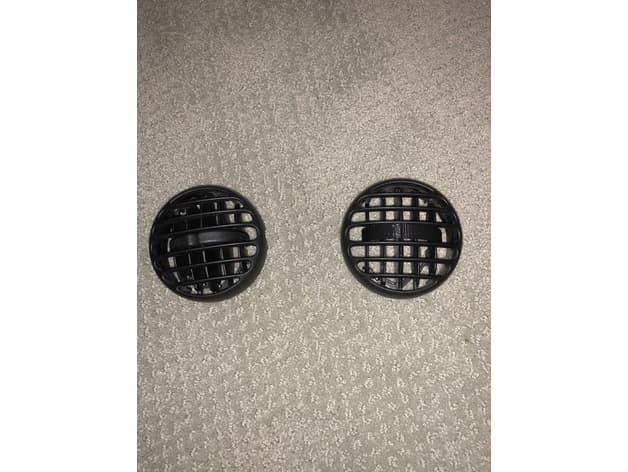

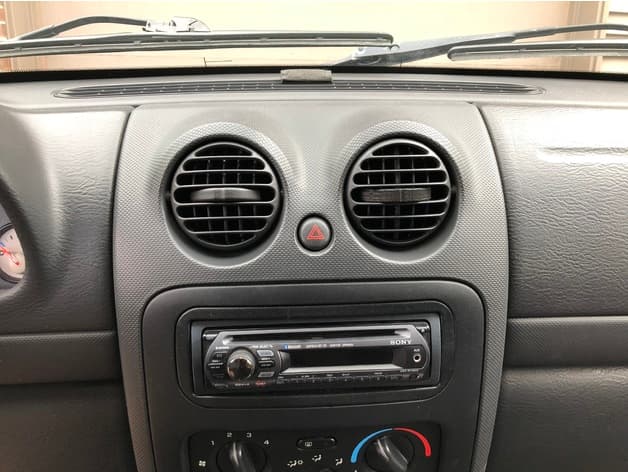

Replacement center fin for a broken dashboard air vent in a 2003 Jeep Liberty KJ. The creator notes that the end pins may require light sanding for fit.

View original source ↗
