2004 20-Ounce Bottle Cup Adapter

ABS · Nylon · PETG1 FILECC-BY-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2004 20-Ounce Bottle Cup Adapter
OEM: —
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0940QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0940

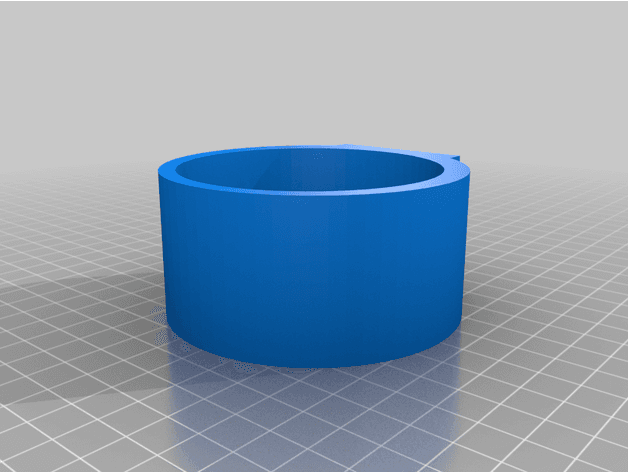

[01]Jeep_20oz_Rev_1.stlJeep_20oz_Rev_1.stl.STL
[02]Bounding box86.000 × 86.000 × 41.660 mm
[03]Volume66,468.513 mm³

Field notes

BY JEFF B. (NMR2D2156)

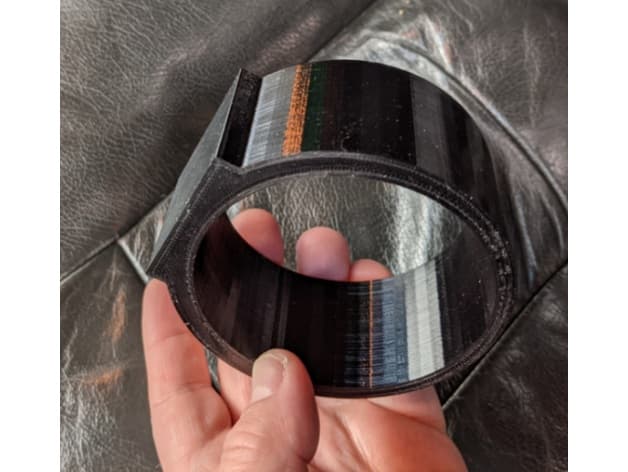

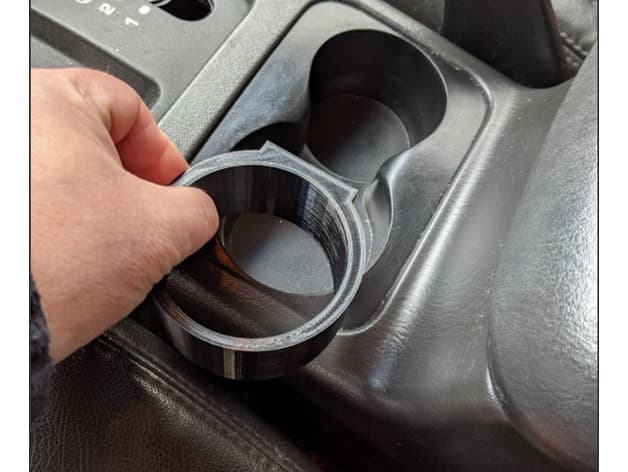

Removable sizing sleeve for the oversized driver-side cup opening in a 2004 Grand Cherokee WJ or WG. It supports a standard 20-ounce drink bottle and was test-printed in PETG.
