2004 Plain Wheel Center Cap

ABS · NylonMULTI-PART3 FILESCC-BYExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2004 Plain Wheel Center Cap
OEM: —
APPLICATION: Cherokee / Liberty KJ / Liberty

Loading 3D viewer...

CARGO ID · CJ-3D / 0890QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0890

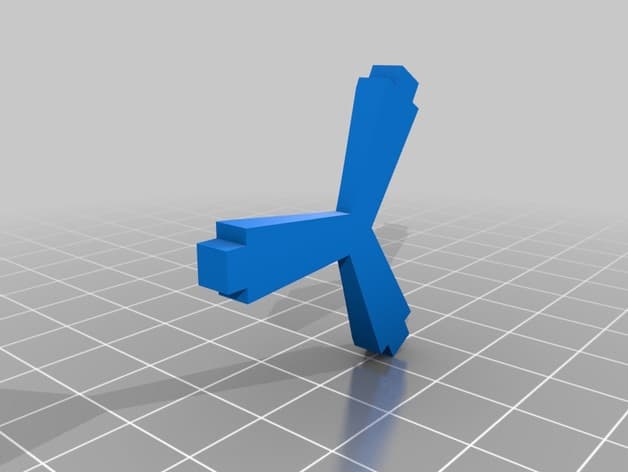

[01]JCC_Center.stlJCC_Center.stl.STL

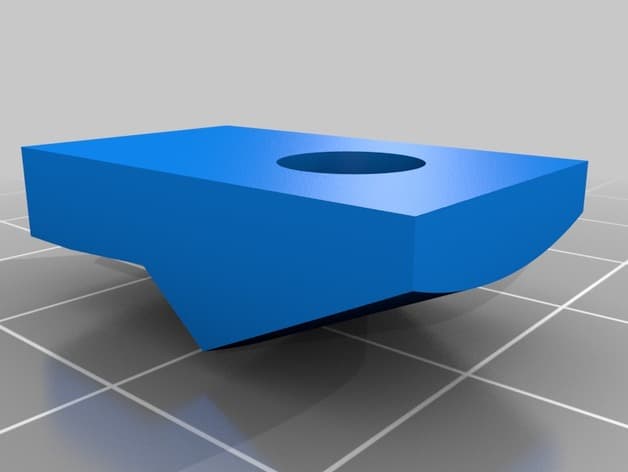

[02]JCC_Leg.stlJCC_Leg.stl.STL

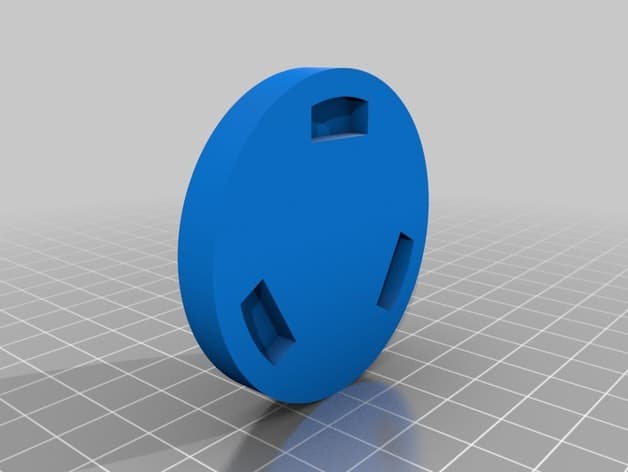

[03]JCC_Top_Blank.stlJCC_Top_Blank.stl.STL
[04]Bounding box100.471 × 54.787 × 7.959 mm
[05]Volume15,582.574 mm³

Field notes

BY MATTHEW BRETTSCHNEIDER (MMBRETTS)

Multi-piece snap-in center cap modeled for the approximately 55–56 mm wheel opening on a 2004 Jeep Liberty KJ. This entry uses the creator's plain top and excludes the decorative lettered top.

View original source ↗
