2005 Dashboard Air-Vent Repair Set

ABS · Nylon · PETGMULTI-PART6 FILESCC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2005 Dashboard Air-Vent Repair Set
OEM: —
APPLICATION: Cherokee / Liberty KJ / Liberty

Loading 3D viewer...

CARGO ID · CJ-3D / 0899QTY 6 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0899

[01]AirVentLouvreArm.stlAirVentLouvreArm.stl.STL
[02]Blade1.stlBlade1.stl.STL
[03]Blade2.stlBlade2.stl.STL
[04]blade3.stlblade3.stl.STL
[05]Blade4.stlBlade4.stl.STL
[06]Blade5.stlBlade5.stl.STL
[07]Bounding box134.547 × 73.039 × 54.508 mm
[08]Volume22,408.308 mm³

Field notes

BY CHRISTOPHER PIERCE (CPIER7360)

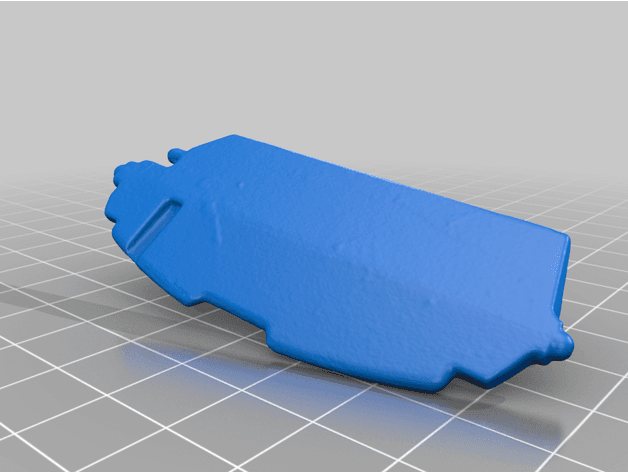

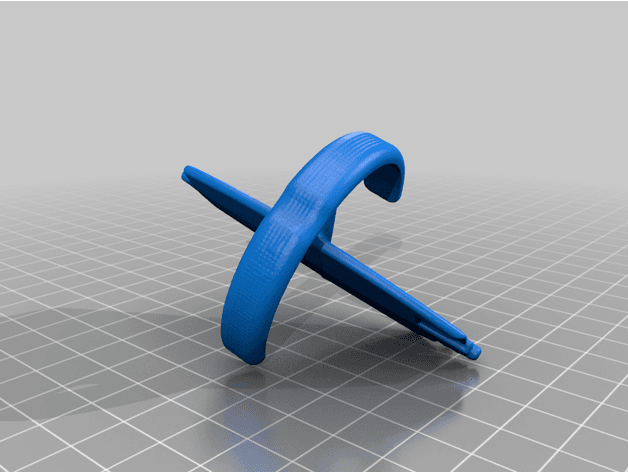

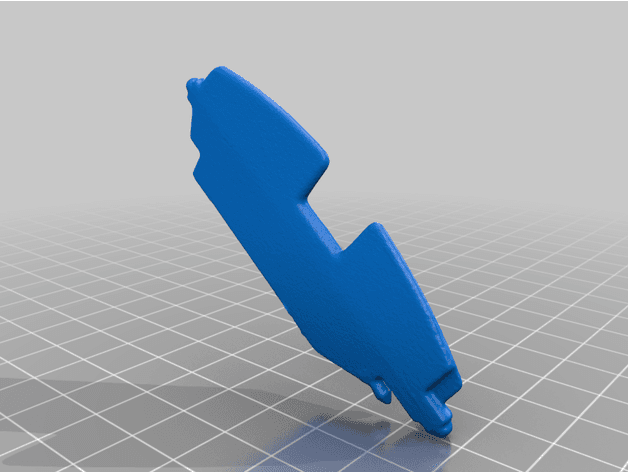

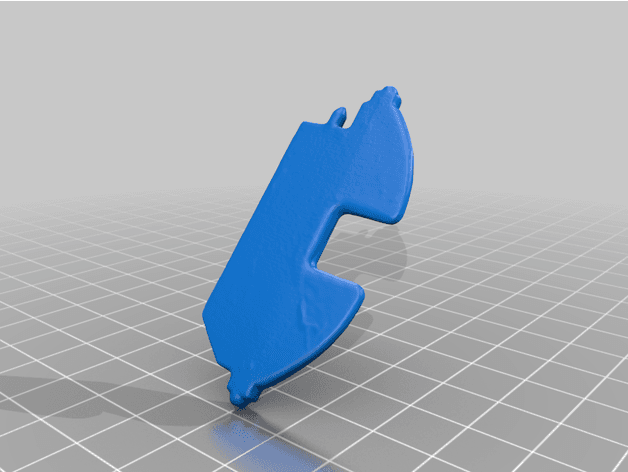

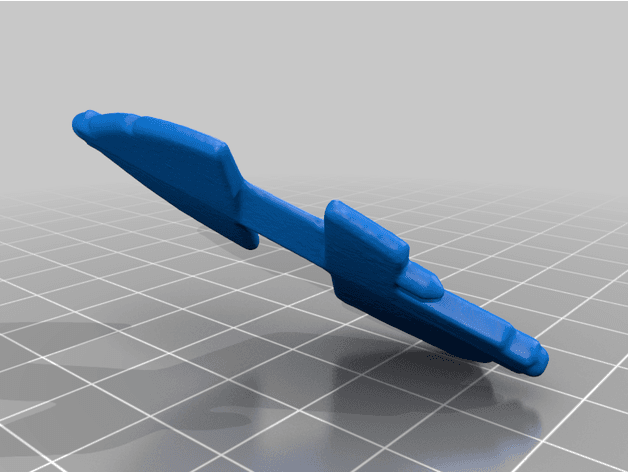

Replacement louvre linkage arm and five blade profiles for repairing the dashboard air vents in a 2005 Jeep Liberty KJ. The submitted meshes preserve the source geometry while reducing excessive tessellation for the API.

View original source ↗
