2005 Rear Cargo Tie-Down

ABS · Nylon1 FILECC-BY-NC-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2005 Rear Cargo Tie-Down
OEM: —
APPLICATION: Cherokee / Liberty KJ / Liberty

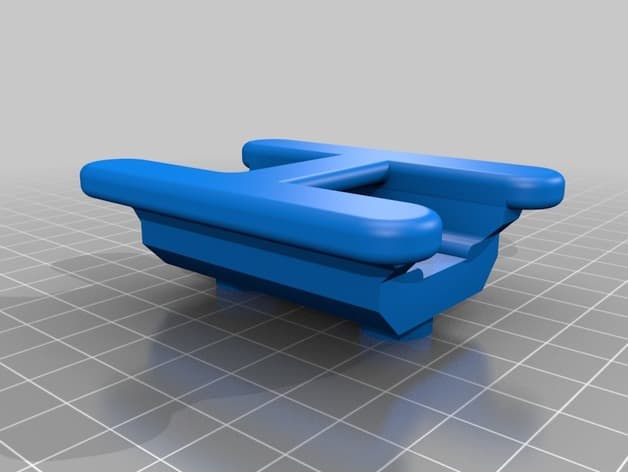

Loading 3D viewer...

CARGO ID · CJ-3D / 0893QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0893

[01]Jeep_tie_down.stlJeep_tie_down.stl.STL
[02]Bounding box72.100 × 53.350 × 24.997 mm
[03]Volume31,376.643 mm³

Field notes

BY LEVIN AANONSON (MADMODIFIER)

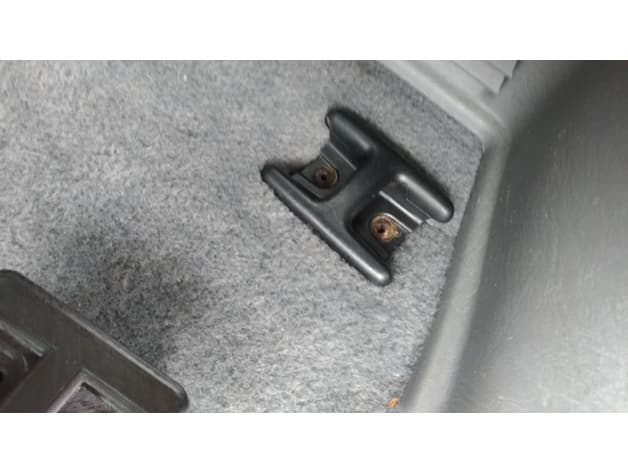

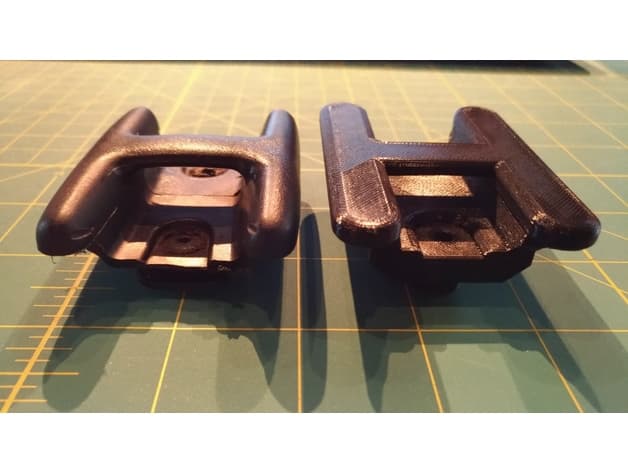

Replacement rear cargo-area tie-down loop for a 2005 Jeep Liberty KJ, developed after the original riveted loop was damaged during carpet removal. The source includes installed validation photographs.

View original source ↗
