2011–2018 Curved-Dash Switch Panel

ABS · Nylon · PETG1 FILECC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 2011–2018 Curved-Dash Switch Panel
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0777QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

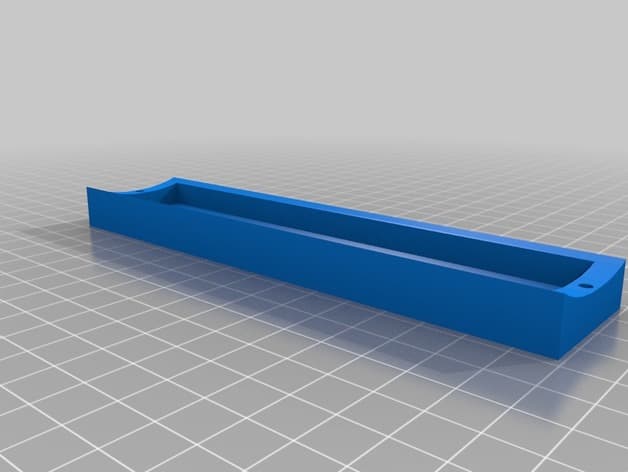

PLATE 01 / 02No caption recorded

Build sheet

MAN-0777

[01]jeep_button_panel.stljeep_button_panel.stl.STL
[02]Bounding box156.012 × 35.000 × 13.018 mm
[03]Volume20,468.814 mm³

Field notes

BY MATT LANG (MATTLANG)

Auxiliary round-rocker switch panel shaped to the curved radio bezel used on 2011–2018 Wrangler JK and JKU interiors. Installation requires holes behind the panel.

View original source ↗
