24 mm Pentastar Oil-Filter Socket

Nylon · PETG1 FILECC-BY-SAMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 24 mm Pentastar Oil-Filter Socket
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0781QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0781

[01]24mmsocket-v2exp.stl24mmsocket-v2exp.stl.STL
[02]Bounding box41.927 × 38.105 × 29.304 mm
[03]Volume16,484.82 mm³

Field notes

BY DREW BECCUE (ANDYJIMB)

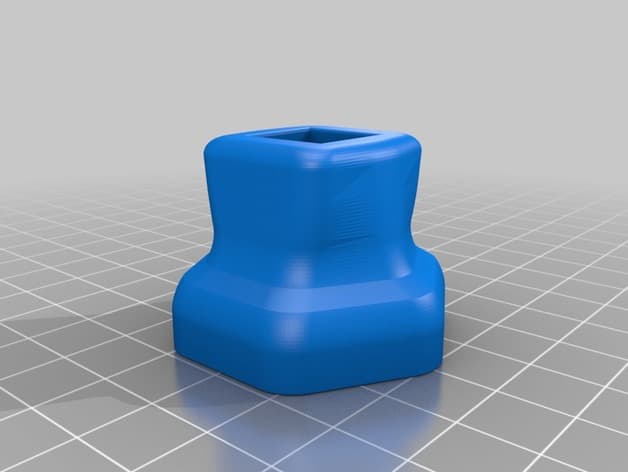

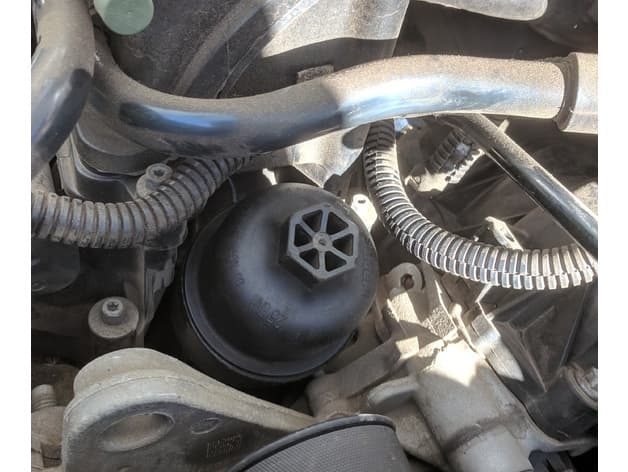

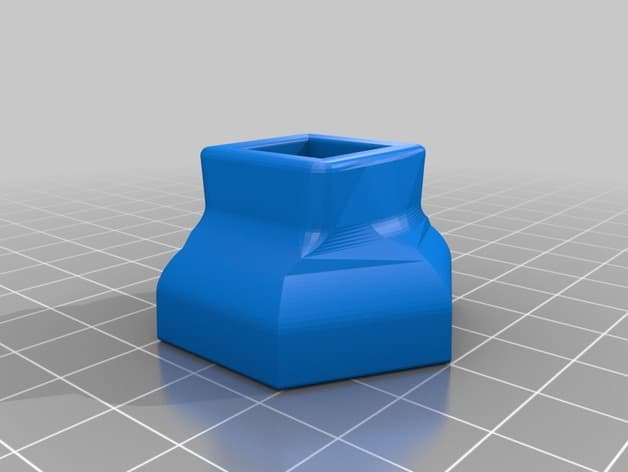

Reinforced 24 mm socket for the Pentastar oil-filter housing used in Wrangler JK models. This V2 geometry accepts either a 3/8-inch or 1/2-inch drive; the creator tested the earlier PLA version to the 25 N·m service torque.
