67 Designs Rail-Compatible Mount Set

ABS · Nylon · PETGMULTI-PART11 FILESCC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: 67 Designs Rail-Compatible Mount Set
OEM: —
APPLICATION: Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0808QTY 11 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

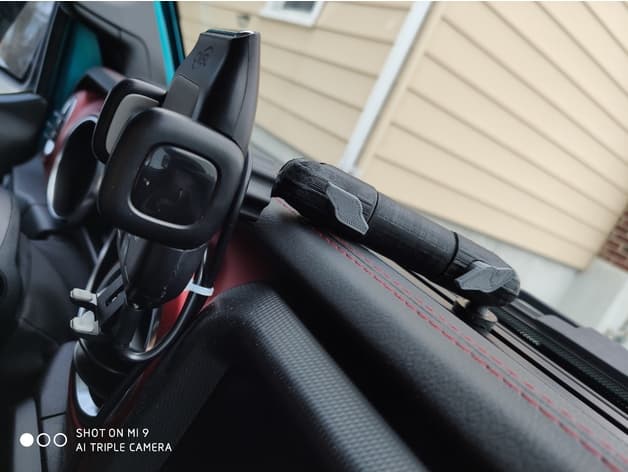

PLATE 01 / 04No caption recorded

Build sheet

MAN-0808

[01]67_design-10mm_bar.stl67_design-10mm_bar.stl.STL
[02]Nobe.stlNobe.stl.STL
[03]67_design-20mm_bar.stl67_design-20mm_bar.stl.STL
[04]67Design-Base-v2.stl67Design-Base-v2.stl.STL
[05]67_design_70mmBar.stl67_design_70mmBar.stl.STL
[06]L.stlL.stl.STL
[07]67Design-plate-v2.stl67Design-plate-v2.stl.STL
[08]67_design-20mm_to_17mm.stl67_design-20mm_to_17mm.stl.STL
[09]67_design-MagBase2.0.stl67_design-MagBase2.0.stl.STL
[10]67d_40mm_bar.stl67d_40mm_bar.stl.STL
[11]R.stlR.stl.STL
[12]Bounding box441.252 × 45.993 × 29.999 mm
[13]Volume98,633.319 mm³

Field notes

BY HA LIVES (LIVESDE)

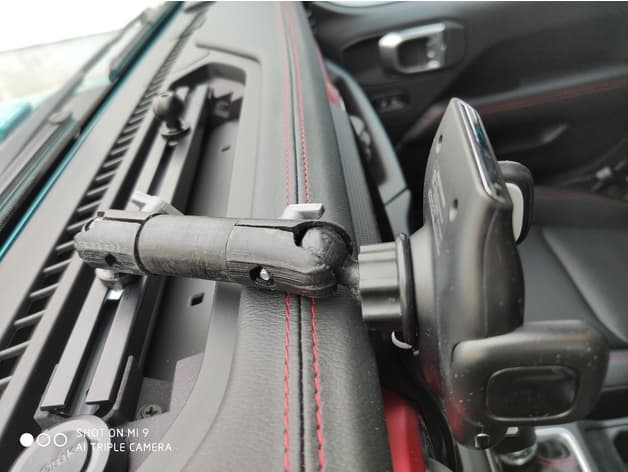

Modular Wrangler JL dashboard-rail mounting set with heat-resistant printable bases, arms, 20 mm ball adapters, magnetic base, and left/right holders for 67 Designs-compatible rails.
