Aftermarket-Bumper Fog-Light Mount

ABS · Nylon · PETG1 FILECC-BYLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Aftermarket-Bumper Fog-Light Mount
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0798QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0798

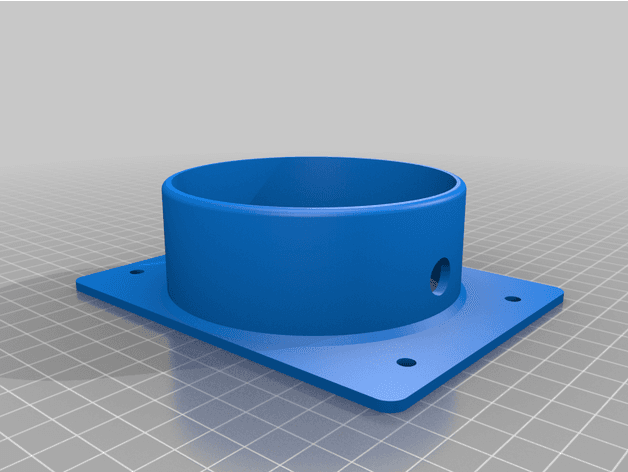

[01]Jeep_Wrangler_Foglight_Holder.stlJeep_Wrangler_Foglight_Holder.stl.STL
[02]Bounding box132.000 × 100.000 × 39.000 mm
[03]Volume51,627.339 mm³

Field notes

BY BRIAN SNELGROVE (BCSFROMBYRON)

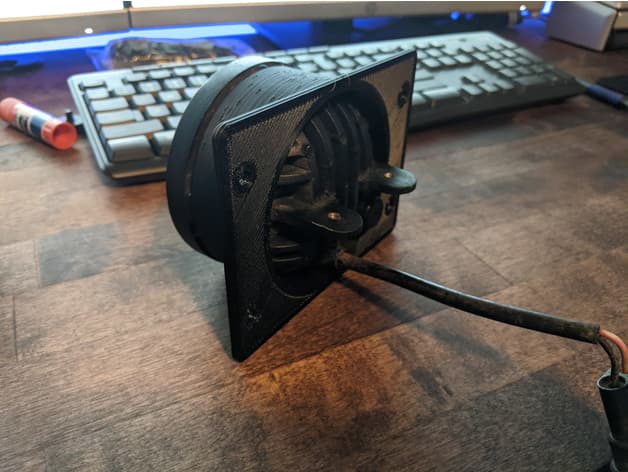

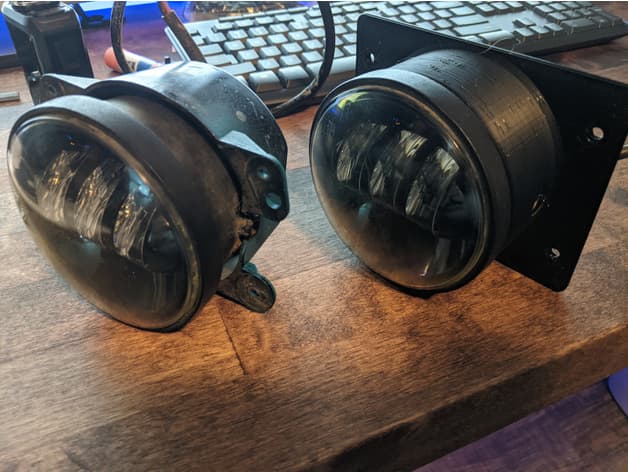

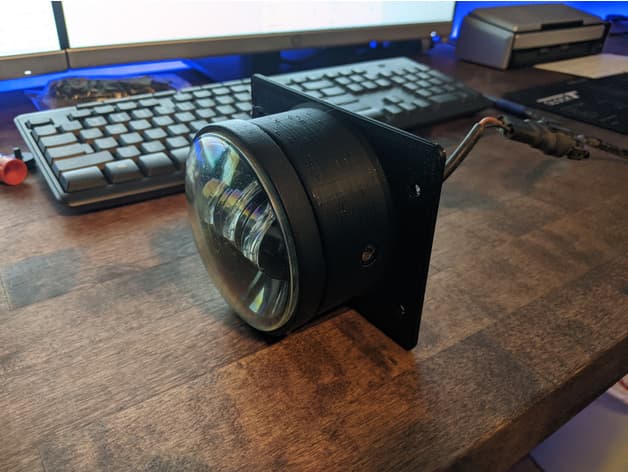

Low-profile fog-light mount for a Wrangler JK aftermarket bumper where a winch interferes with the factory cup. It moves the original fog lamp forward approximately 13 mm.
