Alternative Center-Console Cupholder

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Alternative Center-Console Cupholder
OEM: —
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0937QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0937

[01]Jeep_grand_cherokee_WJ_alternative_cup_holder.stlJeep_grand_cherokee_WJ_alternative_cup_holder.stl.STL
[02]Bounding box167.788 × 113.995 × 67.000 mm
[03]Volume473,583.42 mm³

Field notes

BY MICHAL CHELSTOWSKI (MOSSFER)

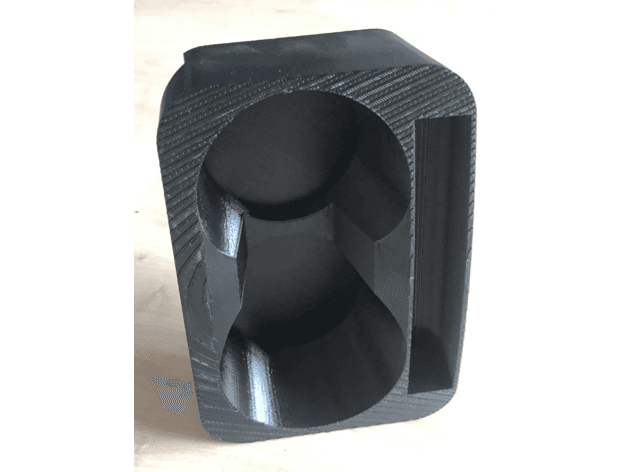

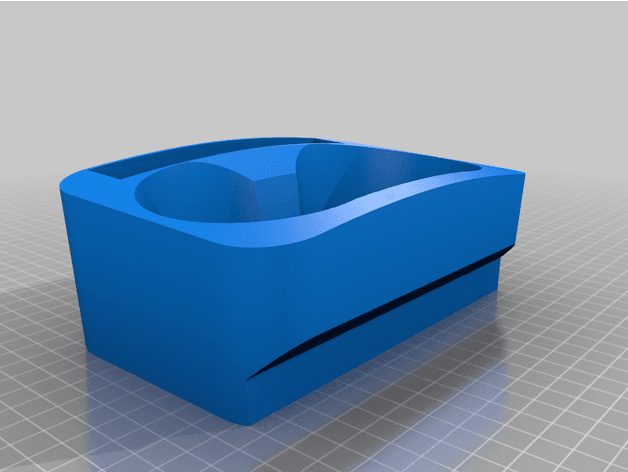

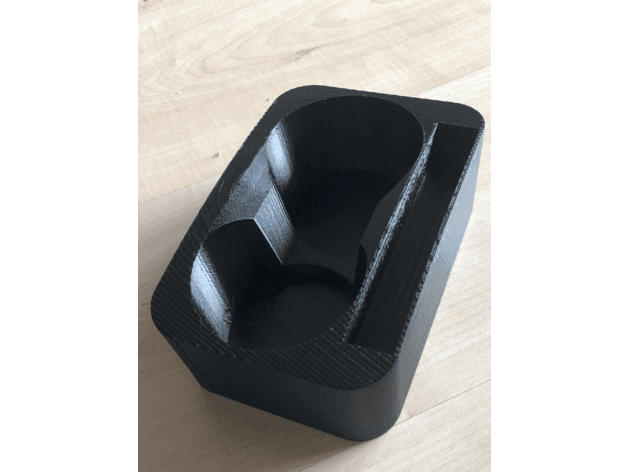

Replacement cupholder for Grand Cherokee WJ and WG center consoles. Moving the cup openings rearward adds a small forward storage pocket; the creator verified the fit in a 2004 vehicle.

View original source ↗
