AW4 Neutral-Safety Switch Puller

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: AW4 Neutral-Safety Switch Puller
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0840QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

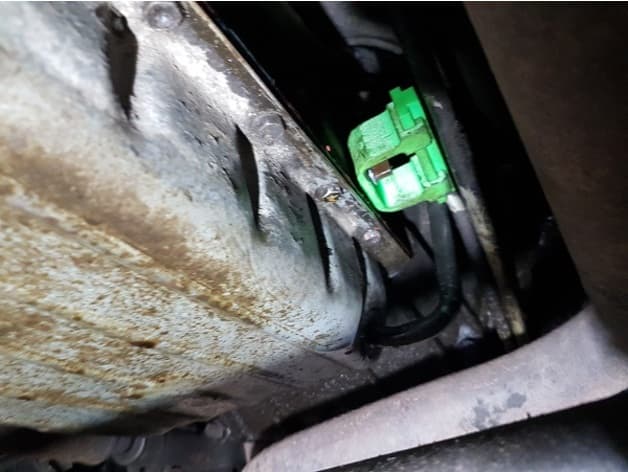

PLATE 01 / 04No caption recorded

Build sheet

MAN-0840

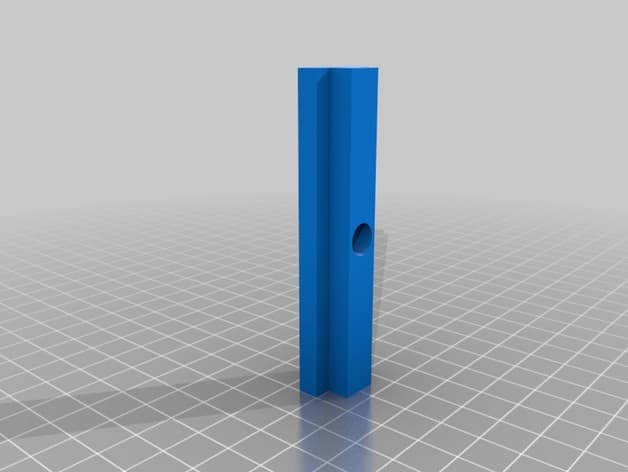

[01]Puller_Main_V2.stlPuller_Main_V2.stl.STL

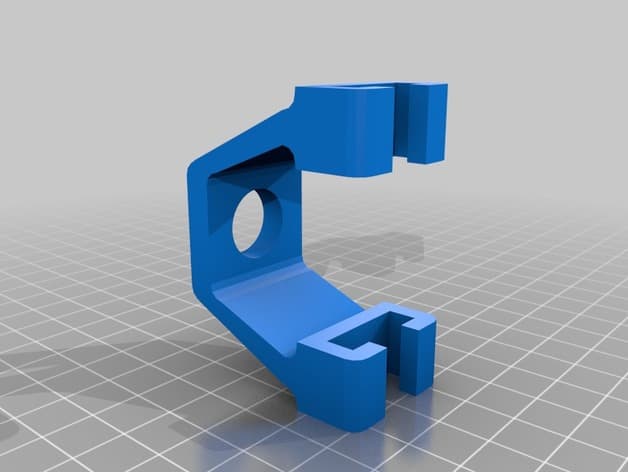

[02]Puller_arm_v2.stlPuller_arm_v2.stl.STL
[03]Bounding box80.000 × 43.000 × 39.272 mm
[04]Volume29,364.37 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

Two-piece puller for removing a seized AW4 automatic-transmission neutral-safety switch without prying on it. It uses an M8 nut and bolt to draw the switch from its shaft.
