Bed-Outlet Wiring Spacers

ABS · NylonMULTI-PART2 FILESCC-BY-NC-SAElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Bed-Outlet Wiring Spacers
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0978QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0978

[01]outlet-spacer-2-hole.stloutlet-spacer-2-hole.stl.STL

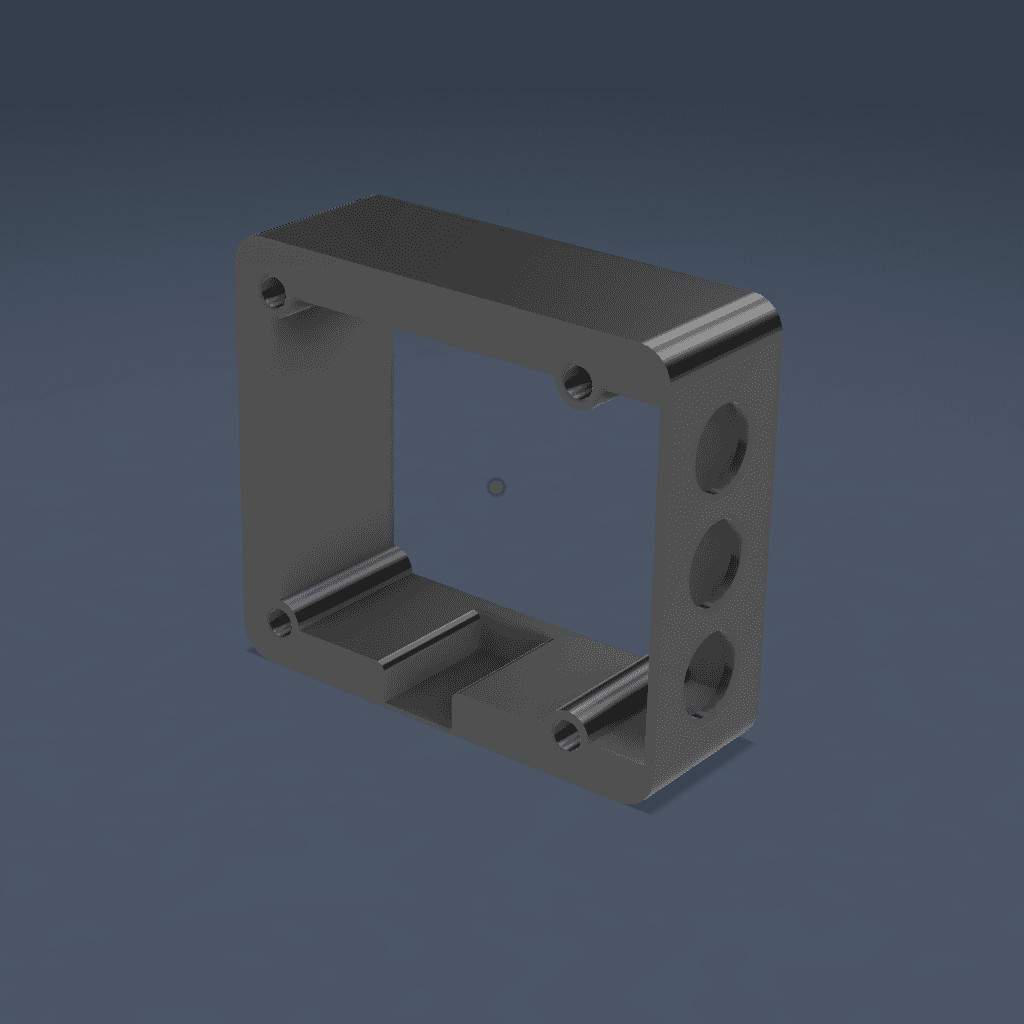

[02]outlet-spacer-3-hole.stloutlet-spacer-3-hole.stl.STL
[03]Bounding box101.500 × 90.000 × 70.000 mm
[04]Volume191,250.478 mm³

Field notes

BY WOLF ISLAND DIVER

Two- and three-gland spacers for routing additional wiring through the Gladiator JT factory bed-outlet opening. The source documents the required longer fasteners, edge protection, gasket, and heat-resistant material.
