Bed Switch-and-Power-Socket Panel

ABS · Nylon1 FILECC-BYElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Bed Switch-and-Power-Socket Panel
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0983QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0983

[01]Gladiator Bed Panel Plate - 2 holes.stlGladiator Bed Panel Plate - 2 holes.stl.STL
[02]Bounding box88.100 × 85.600 × 6.350 mm
[03]Volume48,477.49 mm³

Field notes

BY CJ8SCRAMBLER

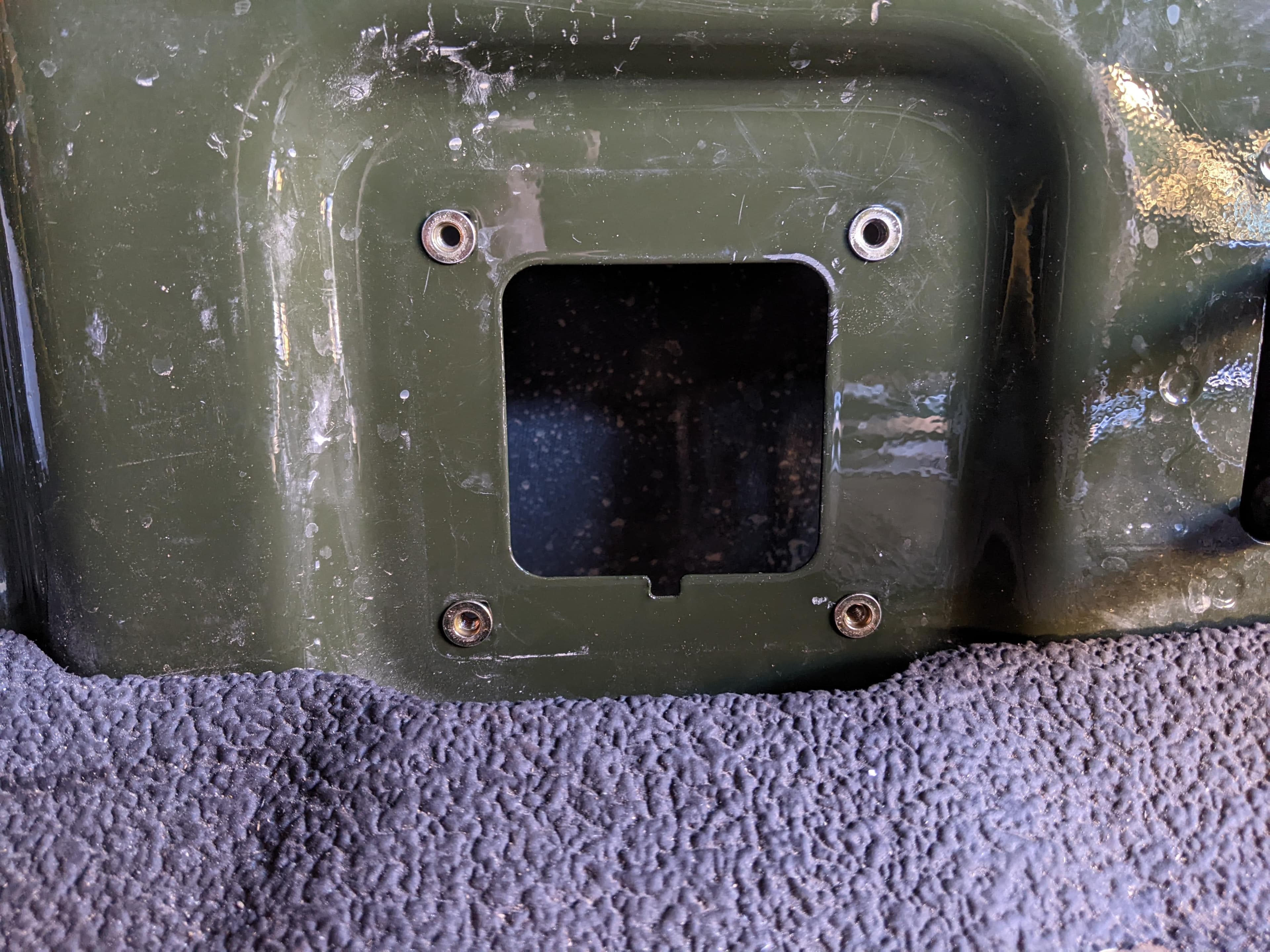

Replacement panel for the Gladiator JT bed opening with provisions for one accessory switch and one twelve-volt socket. It fastens to four M4 rivet nuts and the source shows both the factory opening and completed installation.
